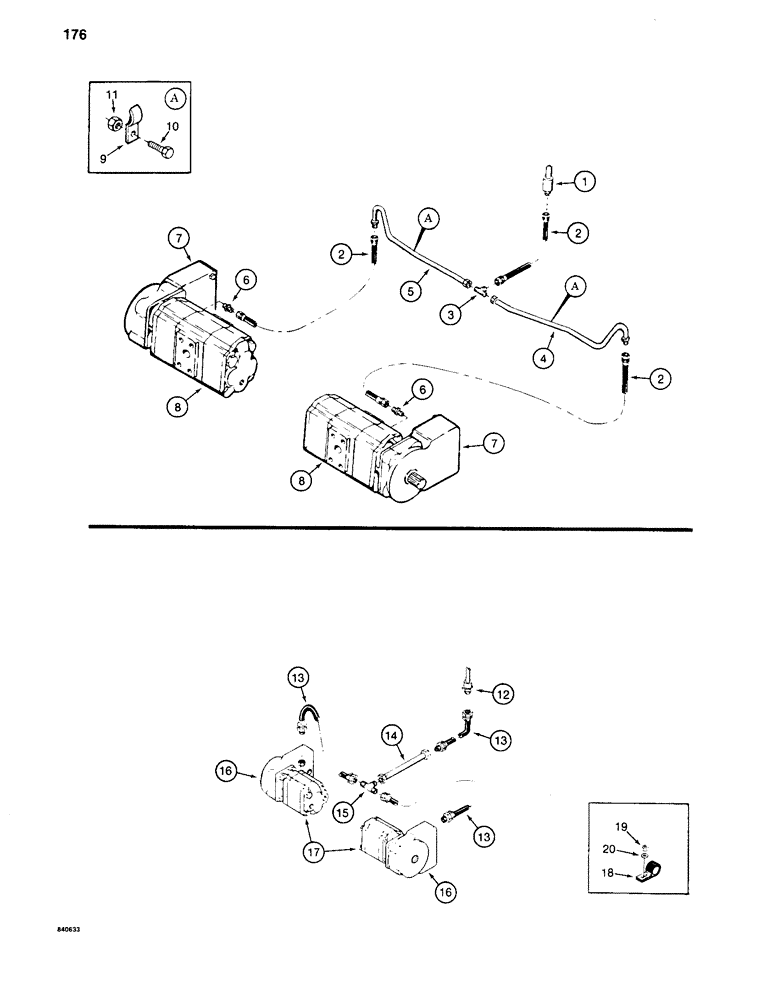

Запчасти Case 880C (176) - TRACK BRAKE HYDRAULIC LINES - LOWER, BEFORE PIN 6205456 (04) - UNDERCARRIAGE

1

REF

INSTRUCTION

SWIVEL - inner, parts list Figure 188, long 7 roller track

1шт.

2

S77121

HOSE

- lower brake circuit, 20" (508 mm) long, long 7 roller track

3шт.

3

218-593

TEE,9/16"-18, 37 Degree

- brake lines, long 7 roller track

1шт.

4

S513199

TUBE ASSY.,0.375" OD

TUBE - brake, right-hand, long 7 roller track

1шт.

5

S513441

TUBE - brake, left-hand, long 7 roller track 0.375" OD

1шт.

6

218-749

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, 37 Degree

ADAPTER - straight, at brake, long 7 roller track

2шт.

7

S611466

KIT

BRAKE - parts list Figure 192, long 7 roller track

2шт.

8

S513683

MOTOR

- hydraulic, track drive, parts list Figure 154, long 7 roller track

2шт.

9

S94926

CLAMP

- tube, long 7 roller track

2шт.

10

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

long 7 roller track Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

11

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, long 7 roller track

2шт.

12

REF

INSTRUCTION

SWIVEL - inner, parts list figure 188, standard 6 roller track

1шт.

13

S401727

HOSE ASSY.

HOSE - lower brake circuit, 30" (762 mm) long, standard 6 roller track

3шт.

14

S404530

LINE,1/4" OD x 3.5" L

TUBE - brake line, standard 6 roller track

1шт.

15

218-591

TEE,7/16"-20, 37 Degree

- brake lines, standard 6 roller track

1шт.

16

S611466

KIT

BRAKE - parts list Figure 192, standard 6 roller track

2шт.

17

S613178

MOTOR - hydraulic, track drive, parts list Figure 152, standard 6 roller track

2шт.

18

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- hose and tube, standard 6 roller track

3шт.

19

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, standard 6 roller track

3шт.

20

195-103

WASHER,5/16"

- flat, standard 6 roller track

3шт.
