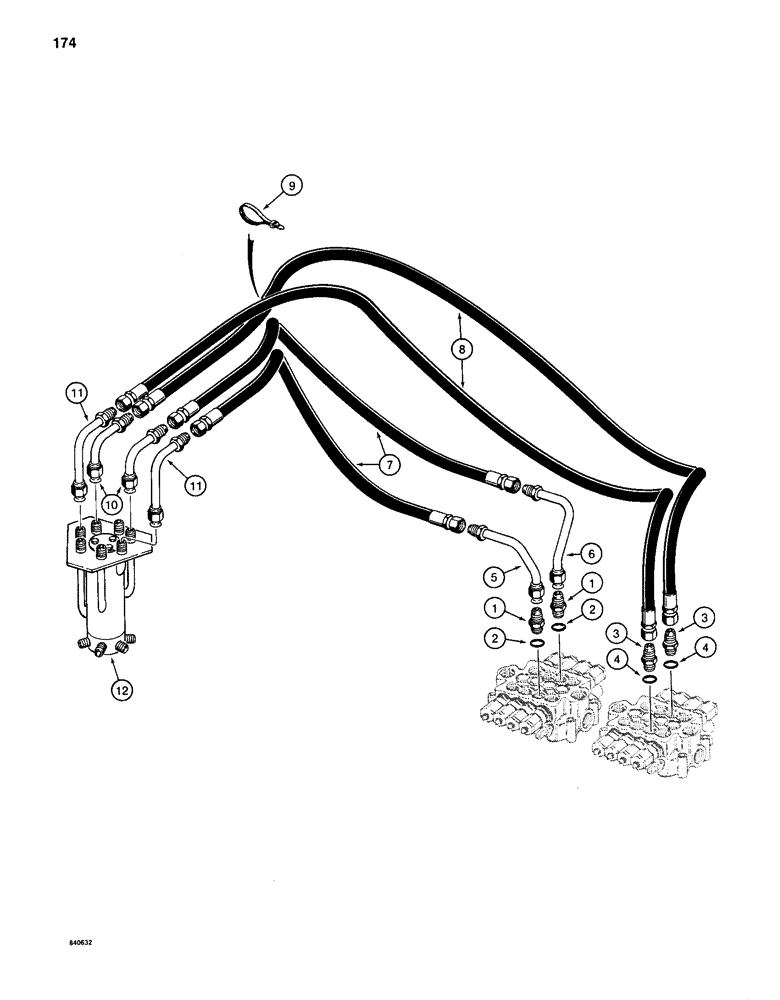

Запчасти Case 880C (174) - TRACK DRIVE HYDRAULIC LINES - UPPER, PIN 6205456 AND AFTER (04) - UNDERCARRIAGE

1

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, at inside control valve, Incl. Ref. 2

2шт.

2

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

3

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, at outside control valve, Incl. Ref. 4

2шт.

4

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

5

S240518

TUBE - at inside valve, front port 1" OD

1шт.

6

S240519

TUBE ASSY.,1" OD

TUBE - at inside valve, rear port

1шт.

7

S400834

HOSE

- from inside valve, 36-1/2" (927 mm) long

2шт.

8

S236136

HOSE

- from outside valve, 60" (1524 mm) long

2шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

10

S240524

TUBE ASSY.,0.75" OD x 4.5, 3.5" L

TUBE - at swivel ports No. 2 and 7

2шт.

11

S240525

TUBE ASSY.,1" OD x 6, 4.5" L

TUBE - at swivel ports No. 3 and 6

2шт.

12

REF

INSTRUCTION

SWIVEL ASSEMBLY - parts list Figure 284

1шт.
