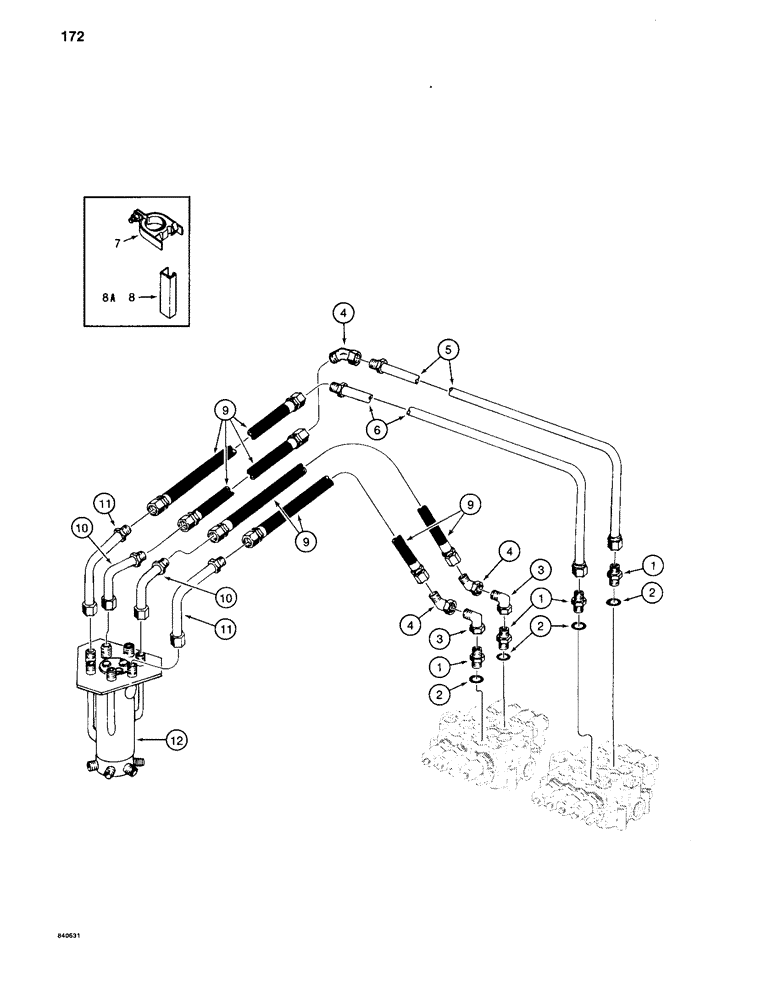

Запчасти Case 880C (172) - TRACK DRIVE HYDRAULIC LINES - UPPER, BEFORE PIN 6205456 (04) - UNDERCARRIAGE

1

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, at control valves, Incl. Ref. 2

4шт.

2

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

3

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, at inside control valve

2шт.

4

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 degree

3шт.

5

S502092

TUBE,1.25" OD x 27, 12.1" L

- from outside valve rear port

1шт.

6

S502091

TUBE - from outside valve front port 1.25" OD x 44.38, 13.6" L

1шт.

7

S93266

CLAMP

- tube

8шт.

8

S98413

SUPPORT

CHANNEL - tube clamp, 5" (127 mm) long

3шт.

8a

S98963

CHANNEL - tube clamp, 10" (254 mm) long

1шт.

9

S8628

HOSE

- track drive, 36" (914 mm) long

4шт.

10

S237057

LINE,1" OD x 4.35, 4.3" L

TUBE - to swivel ports No. 6 and 7

2шт.

11

S208826

TUBE,1" OD x 6.12, 4.35" L

- to swivel ports No. 2 and 3

2шт.

12

REF

INSTRUCTION

SWIVEL ASSEMBLY - parts list Figure 284

1шт.
