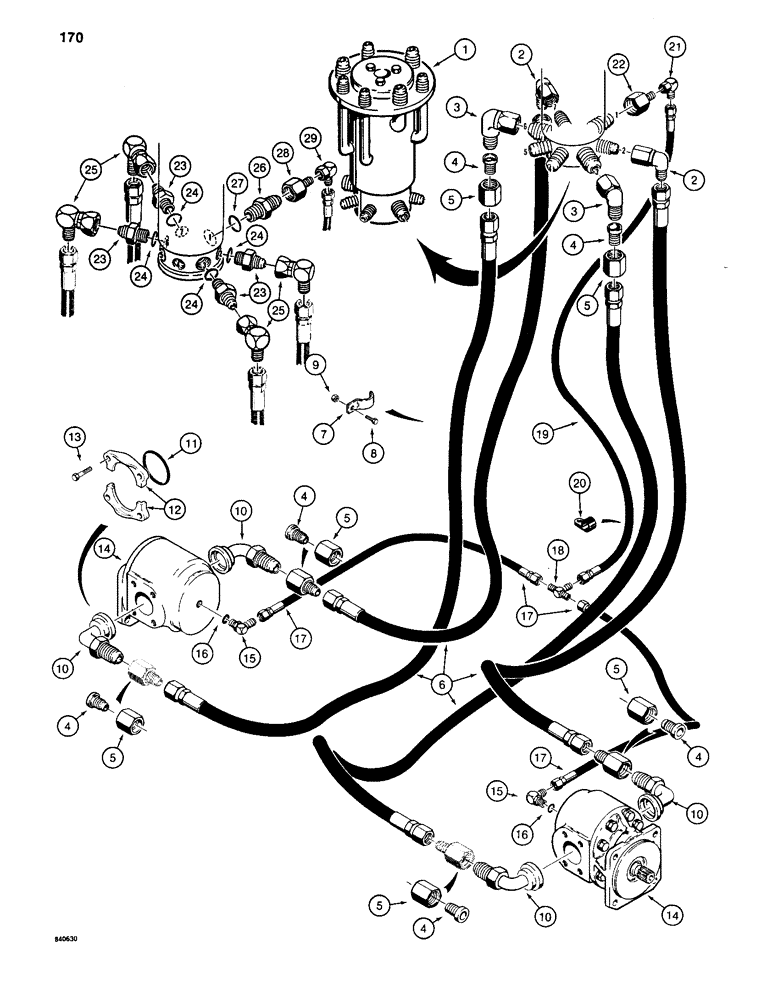

Запчасти Case 880C (170) - TRACK DRIVE HYDRAULIC LINES - LOWER, LONG 7-ROLLER TRACK PIN 6205456 AND AFTER (04) - UNDERCARRIAGE

1

REF

INSTRUCTION

SWIVEL ASSEMBLY - parts list Figure 284

1шт.

2

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

swivel ports No. 2 and 7 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw

2шт.

It is possible to adapt a swivel with lower female ports to connect by using the straight male adapters shown on Figure 284.

1шт.

3

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, swivel ports No. 3 and 6

2шт.

It is possible to adapt a swivel with lower female ports to connect by using the straight male adapters shown on Figure 284.

1шт.

4

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER - reducer, hose ends

6шт.

5

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT - sleeve, for 218-797 adapter

6шт.

6

S236136

HOSE

- track drive circuit, 60" (1524 mm) long

4шт.

7

S82991

CLAMP

- hose

4шт.

8

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

9

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

10

S234440

ELBOW

TUBE - front and rear motor ports

4шт.

11

L53821

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

- tube

4шт.

12

A14157

FLANGE

SPLIT FLANGE - tube

8шт.

13

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

16шт.

14

REF

INSTRUCTION

MOTOR - hydraulic, track drive, see Figures 156 and 158 for correct assembly and component parts

2шт.

15

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, motor drain port, Includes: Ref. 16

2шт.

16

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

17

S241217

HOSE ASSY.

HOSE - from motors, 21" (533 mm) long

2шт.

18

218-593

TEE,9/16"-18, 37 Degree

- drain lines

1шт.

19

S241219

HOSE ASSY.

HOSE - to swivel, 50" (1270 mm) long

1шт.

20

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- hose

1шт.

21

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, at swivel port No. 1

1шт.

22

218-724

REDUCER,37º, 1 5/16"-12, Fem x 9/16"-18 Male

ADAPTER - straight, at swivel port No. 1

1шт.

It is possible to adapt a swivel with lower female ports to connect by using the straight male adapters shown on Figure 284.

1шт.

23

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, used at ports No. 2, 3, 6, and 7, with lower swivel female, Incl. Ref. 24

4шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter, used with lower swivel female ports

1шт.

25

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

used at ports No. 2, 3, 6, and 7, with lower swivel female 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw

4шт.

26

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, used at port No. 1, with lower swivel female, Incl. Ref. 27

1шт.

27

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter, used with lower swivel female port

1шт.

28

218-724

REDUCER,37º, 1 5/16"-12, Fem x 9/16"-18 Male

- adapter to elbow, used at port No. 1, with lower swivel female

1шт.

29

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- adapter to hose, used at port No. 1, with lower swivel female

1шт.
