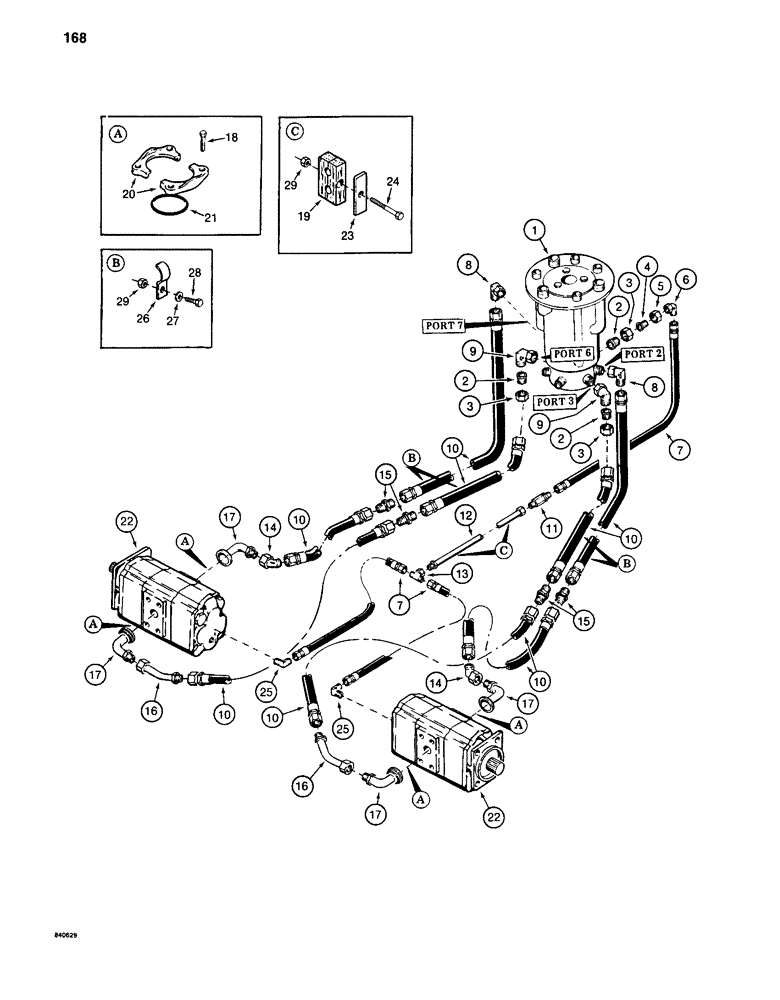

Запчасти Case 880C (168) - TRACK DRIVE HYDRAULIC LINES - LOWER, LONG 7-ROLLER TRACK BEFORE PIN 6205456 (04) - UNDERCARRIAGE

1

REF

INSTRUCTION

SWIVEL ASSEMBLY - parts list Figure 284

1шт.

2

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER - reducer

3шт.

3

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT - sleeve, for 218-797 adapter

3шт.

4

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER - reducer, swivel port No. 1

1шт.

5

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - sleeve, for 218-796 adapter

1шт.

6

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree

1шт.

7

S11230

HOSE

- drain lines, 28" (711 mm) long

3шт.

8

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

swivel ports 2 and 7 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw

2шт.

9

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, swivel ports 3 and 6

2шт.

10

D44752

HOSE

- track drive circuit, 28" (711 mm) long

8шт.

11

S78084

VALVE

CHECK VALVE - parts list Figure 160

1шт.

12

S209700

TUBE - hydraulic 0.5" OD x 12" L

1шт.

13

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- drain lines

1шт.

14

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

- 45 degree, front motor ports

2шт.

15

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - straight, drive circuit hoses, Includes: Ref. 16

4шт.

16

S234822

LINE,0.75" OD

TUBE - to rear motor ports

2шт.

17

S234821

ADAPTER

TUBE - with O-ring flange, front and rear motor ports

4шт.

18

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

- hex head, 1/2" - 13 NC x 1-1/4"

16шт.

19

S229701

CLAMP - tube, wood

1шт.

20

A12301

CLAMP,Half

SPLIT FLANGE - tube

8шт.

21

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- tube

4шт.

22

S513683

MOTOR

- hydraulic, track drive, parts list Figure 154

2шт.

23

S106048

PLATE - clamp, Includes: Ref. 24

1шт.

24

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2"

1шт.

25

218-1055

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/4"-18, NPTF

- 90 degree

2шт.

26

S82991

CLAMP

- hose, Includes: Ref. 27

4шт.

27

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened, no longer used, not required

4шт.

28

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

29

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 20 NC

5шт.
