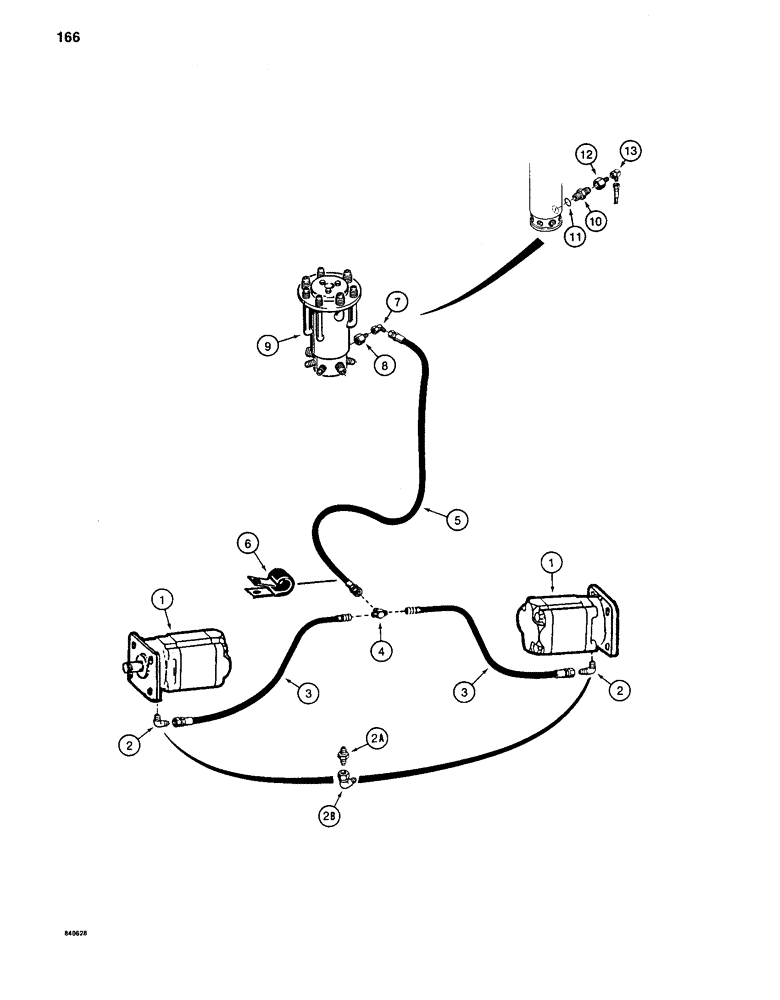

Запчасти Case 880C (166) - TRACK DRIVE MOTOR DRAIN LINES, STANDARD 6-ROLLER TRACK PIN 6205456 AND AFTER (04) - UNDERCARRIAGE

1

S613178

MOTOR - hydraulic, track drive, parts list Figure 152

2шт.

2

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, motor drain port used before PIN 6205520, can be replaced with Refs. 2A and 2B

2шт.

2a

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, motor drain ports, used on PIN 6205520 and after

2шт.

2b

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, motor drain ports, used on PIN 6205520 and after

2шт.

3

S241217

HOSE ASSY.

HOSE - from motors, 21" (533 mm) long

2шт.

4

218-593

TEE,9/16"-18, 37 Degree

- drain lines

1шт.

5

S241219

HOSE ASSY.

HOSE - to swivel, 50" (1270 mm) long

1шт.

6

T50103

CLAMP

- hose

1шт.

7

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, at swivel port No. 1

1шт.

8

218-724

REDUCER,37º, 1 5/16"-12, Fem x 9/16"-18 Male

ADAPTER - straight, at swivel port No. 1

1шт.

It is possible to adapt a swivel with lower female ports to connect by using a 218-5069 straight male adapters shown on Figure 284.

1шт.

9

REF

INSTRUCTION

SWIVEL ASSEMBLY - parts list Figure 284

1шт.

10

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, at swivel port No. 1, used with lower female, Incl. Ref. 11

1шт.

11

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter, used with lower swivel female port

1шт.

12

218-724

REDUCER,37º, 1 5/16"-12, Fem x 9/16"-18 Male

- adapter to elbow, used at port No. 1., used with lower swivel female

1шт.

13

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- adapter to hose, used at port No. 1, used with lower swivel female

1шт.
