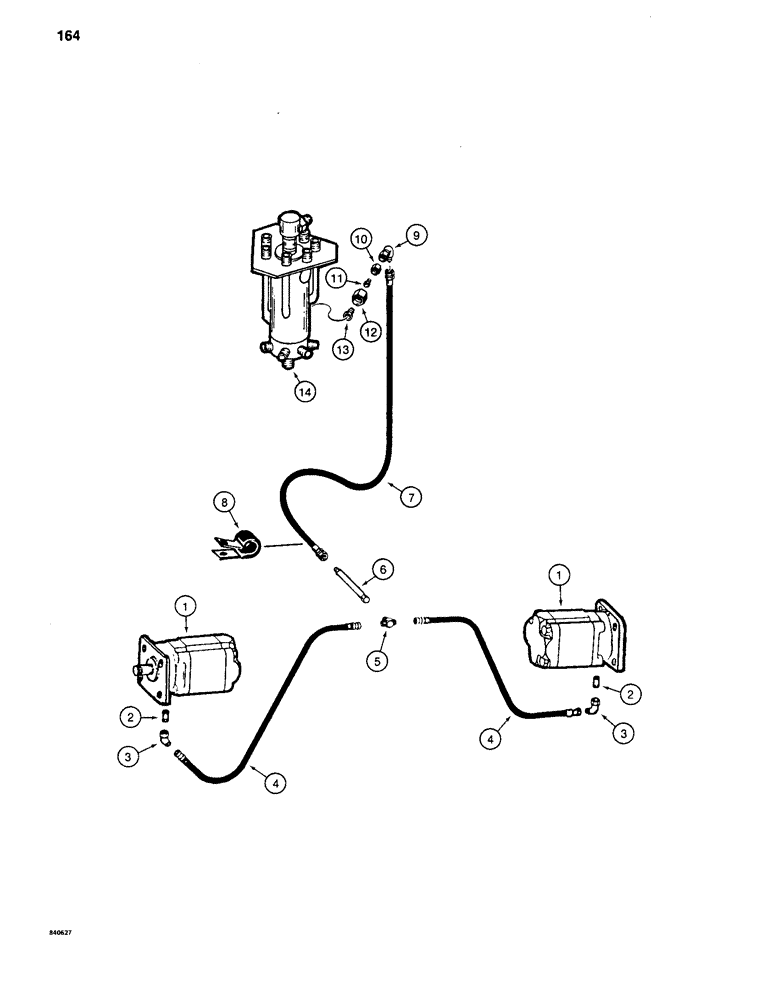

Запчасти Case 880C (164) - TRACK DRIVE MOTOR DRAIN LINES, STANDARD 6-ROLLER TRACK BEFORE PIN 6205456 (04) - UNDERCARRIAGE

1

S613178

MOTOR - hydraulic, track drive, parts list Figure 152

2шт.

2

221-136

PIPE

NIPPLE - 1/4" NPT x 1-3/4"

2шт.

3

218-1075

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/4"-18, Fem NPTF

- 90 degree

2шт.

4

S73647

HOSE - from motors, 22" (559 mm) long

2шт.

5

218-594

TEE,3/4"-16, 37 Degree

- drain lines

1шт.

6

S209700

TUBE - drain 0.5" OD x 12" L

1шт.

7

S11230

HOSE

- to swivel, 28" (711 mm) long

1шт.

8

S77322

CLAMP

- hose

1шт.

9

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree

1шт.

10

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - sleeve, for 218-796 adapter

1шт.

11

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER - reducer

1шт.

12

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT - sleeve, for 218-797 adapter

1шт.

13

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER - reducer

1шт.

14

REF

INSTRUCTION

SWIVEL ASSEMBLY - parts list Figure 284

1шт.
