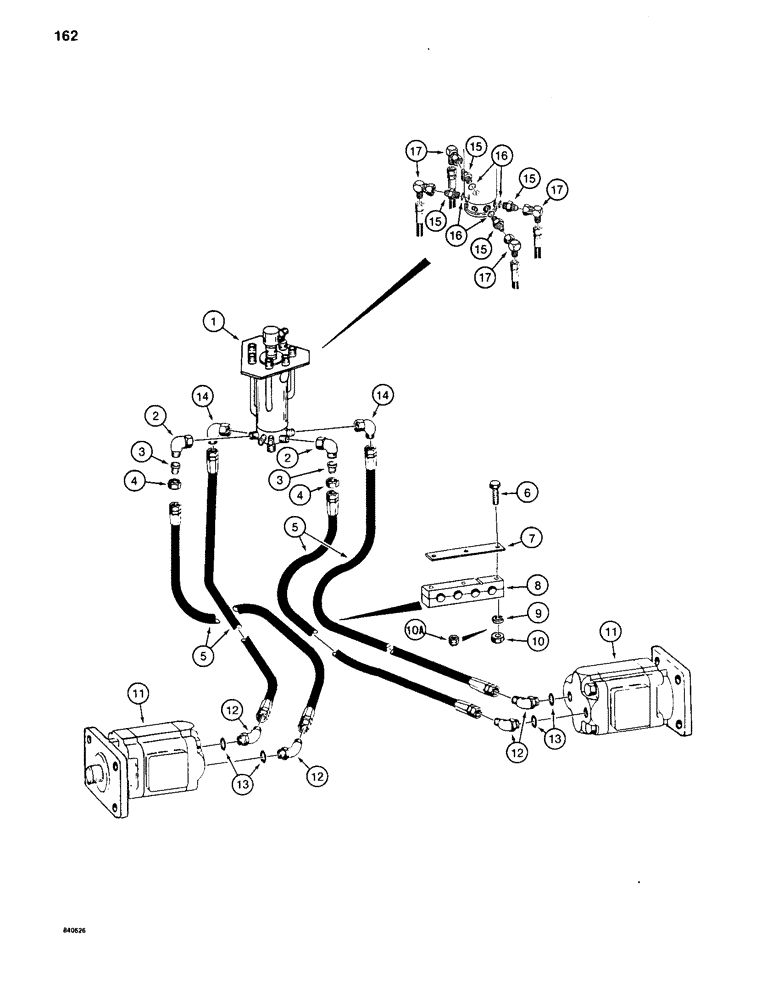

Запчасти Case 880C (162) - TRACK DRIVE HYDRAULIC LINES - LOWER, STANDARD 6-ROLLER TRACK (04) - UNDERCARRIAGE

1

REF

INSTRUCTION

SWIVEL ASSEMBLY - parts list figure 284

1шт.

2

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, at swivel ports No. 3 and 6

2шт.

It is possible to adapt a swivel with lower female ports to connect by using the straight male adapters shown on Figure 284.

1шт.

3

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER - reducer

2шт.

4

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT - sleeve, for 218-797 adapter

2шт.

5

S8750

HOSE

44.00", Track Drive Circuits; Used Before PIN 6205456

4шт.

5

S400832

HOSE

- track drive circuits, 49" (1244 mm) long, used on PIN 6205456 and after

4шт.

6

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

3шт.

7

S79724

PLATE - wood clamp

1шт.

8

S209703

CLAMP - wood, two piece

1шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Used with item 10 only 1/2"

3шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

Used with ref. 9 only 1/2"-13, G5

3шт.

10a

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, replaces Refs. 9 and 10

3шт.

11

S613178

MOTOR - hydraulic, track drive, parts list figure 152

2шт.

12

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree, at motor, Includes: Ref. 13

4шт.

13

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

14

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

at swivel ports No. 2 and 7 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw

2шт.

It is possible to adapt a swivel with lower female ports to connect by using the straight male adapters shown on Figure 284.

1шт.

15

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, used at ports No. 2, 3, 6, and 7, with lower swivel female, Incl. Ref. 16

4шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter, used with lower swivel female ports

1шт.

17

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

used at ports No. 2, 3, 6, and 7, with lower swivel female 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw

4шт.
