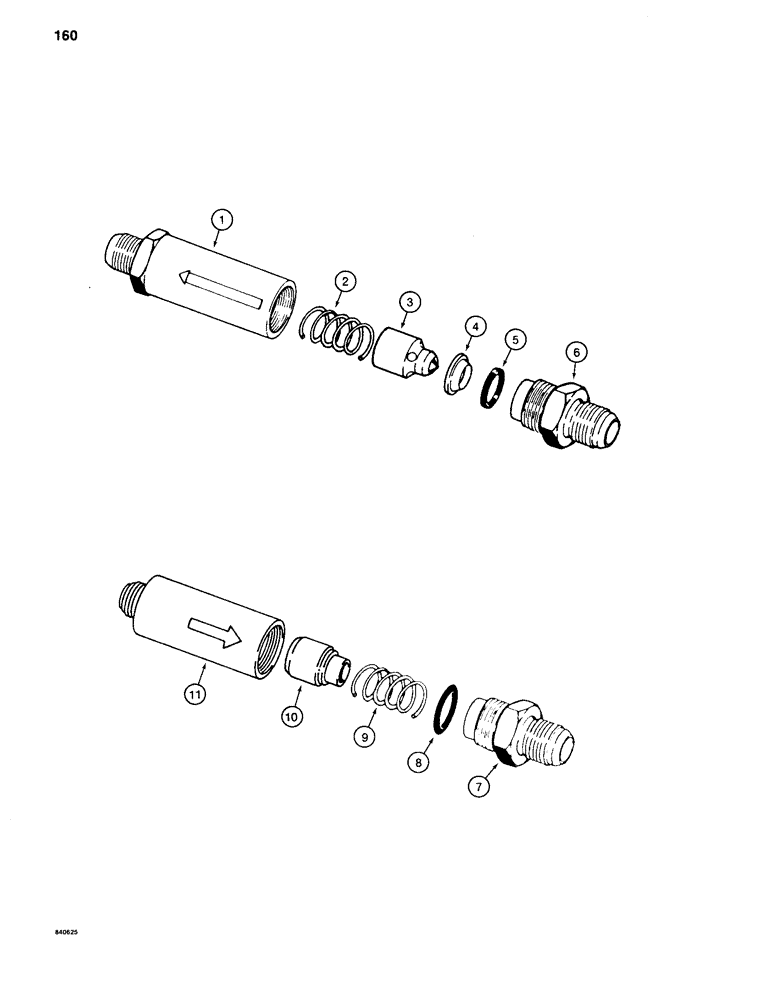

Запчасти Case 880C (160) - S78084 CHECK VALVE - DRIVE HYDRAULIC CIRCUIT, LONG 7-ROLLER TRACK BEFORE PIN 6205456 (04) - UNDERCARRIAGE

S78084

VALVE

CHECK VALVE ASSEMBLY - Kepner type, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - check valve, kepner type

1шт.

2

S81792

SPRING

- check valve, kepner type

1шт.

3

S81791

POPPET - check valve, kepner type

1шт.

4

S81790

SEAT - poppet, kepner type

1шт.

5

S81793

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- check valve, kepner type

1шт.

6

S81789

ADAPTER - end, kepner type

1шт.

S78084

VALVE

CHECK VALVE ASSEMBLY - fluid controls type, Includes: Ref. 7 - 11

1шт.

7

NSS

NOT SOLD SEPARAT

ADAPTER - end, fluid controls type

1шт.

9

N8717

SPRING

- check valve, fluid controls type

1шт.

10

N8716

VALVE POPPET

POPPET - check valve, fluid controls type

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - check valve, fluid controls type

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, check valve, fluid controls type

1шт.
