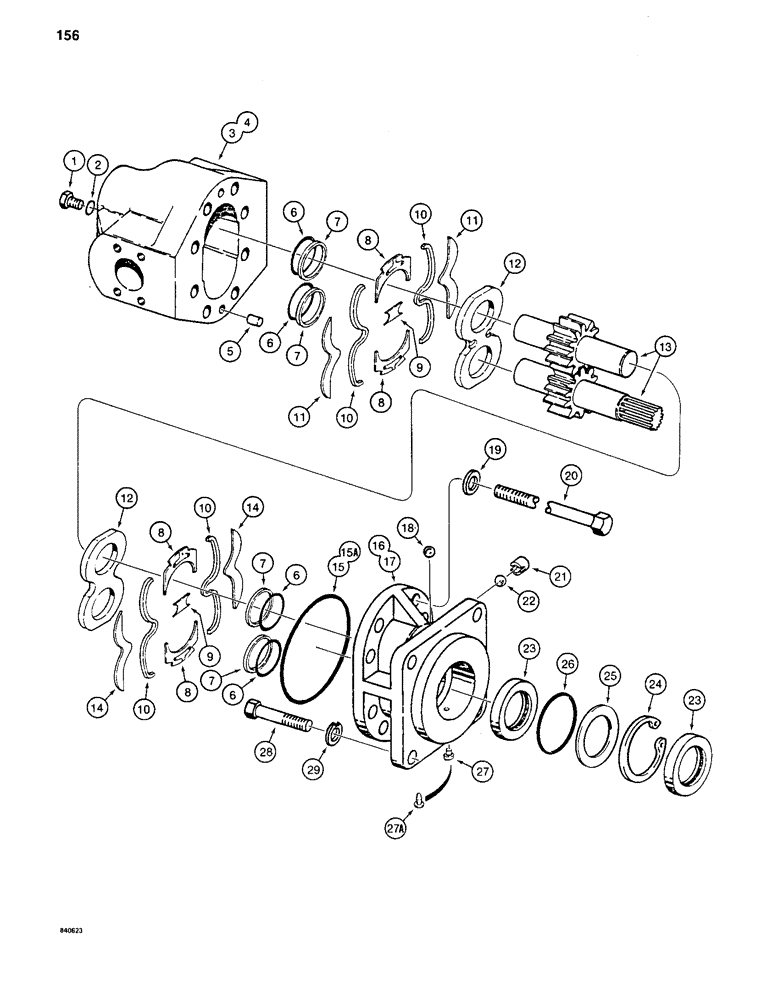

Запчасти Case 880C (156) - S223210 TRACK DRIVE HYDRAULIC MOTOR, LONG 7-ROLLER TRACK PIN 6205456-6205624 (04) - UNDERCARRIAGE

S223210

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydraulic, track drive, Includes: Ref. 1 - 27A

2шт.

1

76349

PLUG,9/16" - 18 ORB

Drain, Incl. Ref. 2 Hex Hd, 9/16"-18 ORB

1шт.

2

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, plug

1шт.

3

S98634

BODY

ASSEMBLY - includes two bushings, Includes: Ref. 4

1шт.

4

L32840

BUSHING

- body, not shown

2шт.

5

D41414

PIN

DOWEL PIN - hydraulic motor

2шт.

6

S113612

O-RING

- small

4шт.

7

S113607

OIL SEAL

BACKUP RING - small O-ring

4шт.

8

S113608

SEPARATOR

- end

4шт.

9

S113609

SEPARATOR

- center

2шт.

10

S108887

STRAP

STRIP - sealing

4шт.

11

S108884

LARGE PLATE

PLATE - isolation, bottom, rounded edges

2шт.

12

S98638

PLATE

- pressure

2шт.

13

S108889

KIT

GEAR SET - drive and driven

1шт.

14

S108885

LARGE PLATE

PLATE - isolation, top, square edges

2шт.

15

L35781

O-RING,4-1/4" ID x 4-7/16" OD x 3/32"

- cover to body, standard

1шт.

15a

D43797

SEAL

O-RING - cover to body, thick, use if O-ring groove is deeper than .06" (1.52 mm) only

1шт.

16

S108883

COVER ASSEMBLY - shaft end, includes two bushings, Includes: Ref. 17

1шт.

17

L32840

BUSHING

- cover, not shown

2шт.

18

211-7

BALL,1/4" Dia

2шт.

19

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- flat, 1/2", special

8шт.

20

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

8шт.

21

S98641

RETAINER

- check ball

2шт.

22

211-13

BALL,1/2" Dia

check 1/2" Dia

2шт.

23

S117936

SEAL,31.67mm ID x 50.86mm OD x 11mm Thk

- output shaft

2шт.

24

D41419

RING

SNAP RING - between seals

1шт.

25

S117944

WASHER

- between seals

1шт.

26

S5626

O-RING,0.07" Thk x 1.989" ID, -33, Cl 5, 75 Duro

- between seals

1шт.

27

S113614

VALVE, PRESSURE RELI

VALVE - relief, used on motors with a date code before 10/24/83

1шт.

27a

N9077

PLUG

- special, used on motors with a date code of 10/24/83 and after

1шт.

28

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

29

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.
