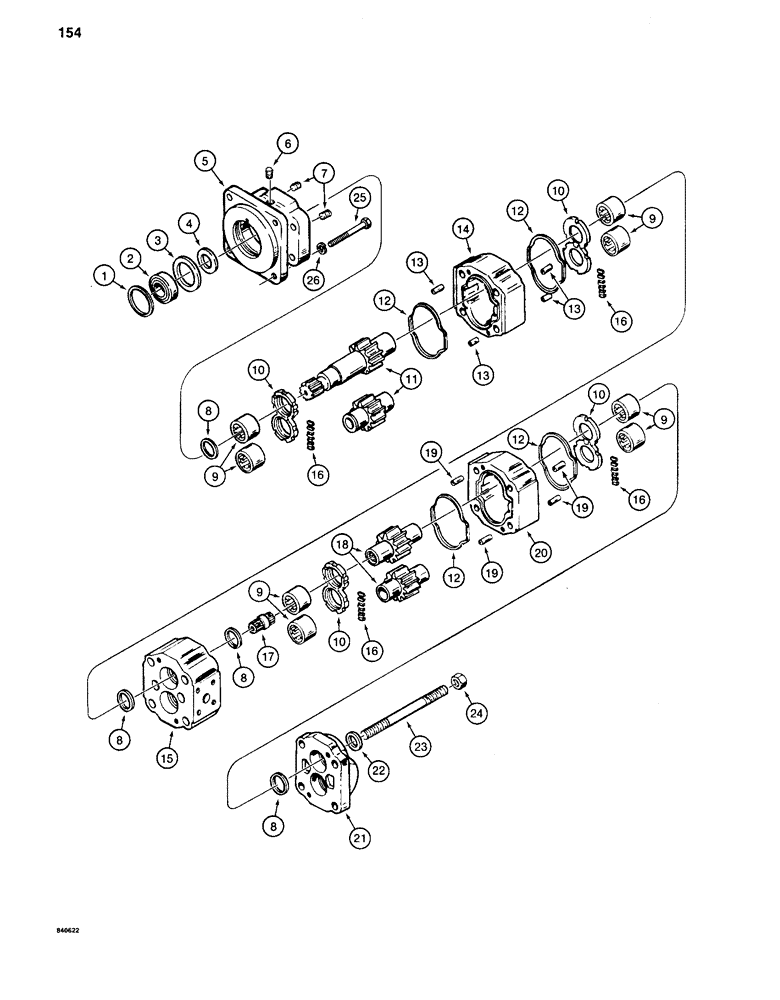

Запчасти Case 880C (154) - S513683 TRACK DRIVE HYDRAULIC MOTOR, LONG 7-ROLLER TRACK BEFORE PIN 6205456 (04) - UNDERCARRIAGE

S513683

MOTOR

ASSEMBLY - hydraulic, track drive, Includes: Ref. 1 - 26

2шт.

1

S88756

SNAP RING,#283, 3.009", Int, Spiral

- bearing retaining

1шт.

2

S88754

BALL BEARING

- output shaft

1шт.

3

S94908

STOP LOCK

RETAINER - seal

1шт.

4

S94907

SEAL

- output shaft

1шт.

5

S114864

COVER - shaft end

1шт.

6

221-841

PLUG

- hex socket head, 1/4" NPT

1шт.

7

S61749

VALVE

CHECK ASSEMBLY - hydraulic motor

2шт.

8

L32319

SEALING RING,32.68mm ID x 44.88mm OD x 3.81mm Thk

- ring

4шт.

9

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

- hydraulic motor

8шт.

10

D31955

PLATE

THRUST PLATE - gear

4шт.

11

S114704

GEAR

SET - drive and driven, includes output shaft

1шт.

12

D41391

O-RING

SEAL - square section

4шт.

13

W16323

DOWEL

PIN - hydraulic motor

4шт.

14

S115574

HOUSING

- gear

1шт.

15

S114863

CARRIER

- bearing

1шт.

16

L32099

SEAL

- pocket, thrust plate

24шт.

17

L32324

SHAFT

- connecting

1шт.

18

S113573

GEAR-SET

GEAR SET - drive and driven

1шт.

19

W16323

DOWEL

PIN - hydraulic motor

4шт.

20

S115574

HOUSING

- gear

1шт.

21

D73613

COVER

- closed end

1шт.

22

D31957

WASHER

- flat, 1/2"

4шт.

23

S76269

STUD

- tie

4шт.

24

129-183

NUT,5/8"-11, G8

4шт.

25

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

26

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.
