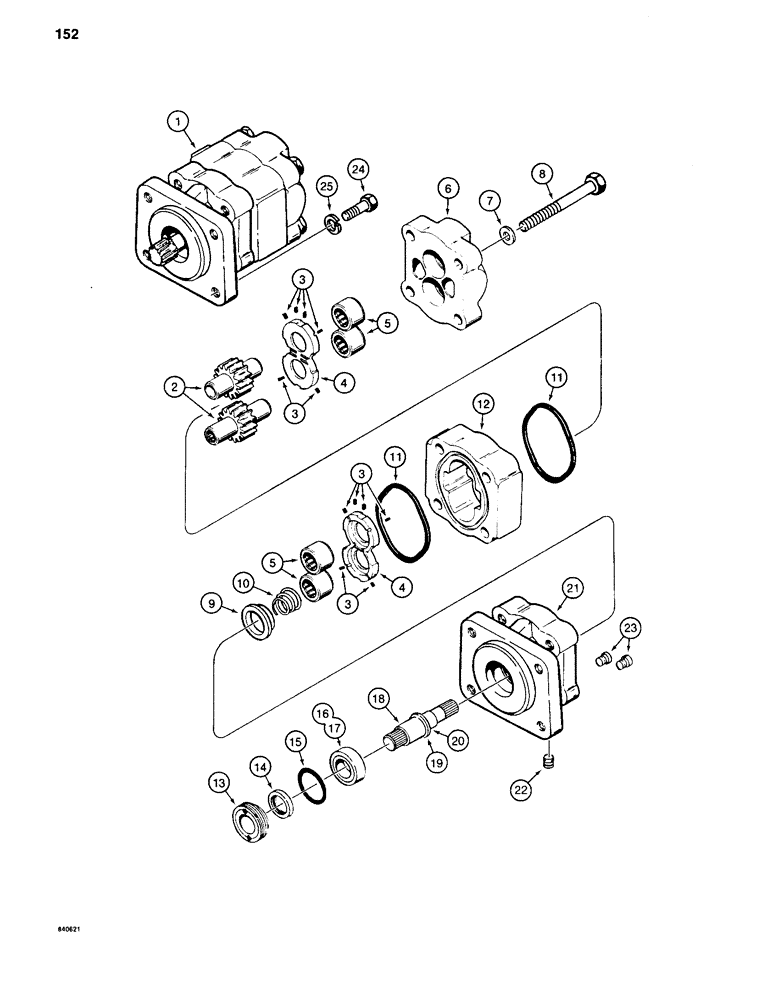

Запчасти Case 880C (152) - S613178 TRACK DRIVE HYDRAULIC MOTOR, STANDARD 6-ROLLER TRACK (04) - UNDERCARRIAGE

1

S613178

MOTOR ASSEMBLY - hydraulic, track drive, Includes: Ref. 2 -23

2шт.

2

S67298

GEAR-SET

GEAR SET - includes drive gear and driven gear

1шт.

3

L32099

SEAL

- pocket, thrust plate

12шт.

4

D31955

PLATE

THRUST PLATE - gear

2шт.

5

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

- hydraulic motor

4шт.

6

S61750

COVER

- port end

1шт.

7

D31957

WASHER

- flat, 5/8", special

4шт.

8

113-653

BOLT,Hex, 5/8" - 11 x 5-3/4", Gr 5

- hex head, 5/8" - 11 NC x 5-3/4"

4шт.

9

D31952

BUSHING

SEAT - spring

1шт.

10

D31953

VALVE SPRING

SPRING - output shaft

1шт.

11

D41391

O-RING

SEAL - square section, Serial Range: covers-housing

2шт.

12

S67295

HOUSING

- gear

1шт.

13

S70415

RETAINER

GLAND - ring

1шт.

14

S70416

OIL SEAL

- output shaft

1шт.

15

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- gland

1шт.

S63513

TAPERED BEARING

ASSEMBLY - output shaft, Includes: Ref. 16 and 17

1шт.

16

D31949

ROLLER BEARING,30.175 mm ID x 21.636 mm

CONE - bearing

1шт.

17

D31948

BEARING CUP,2.5312" OD x 0.6563"

CUP - bearing

1шт.

18

D31958

SHAFT

OUTPUT SHAFT - hydraulic motor

1шт.

19

D31950

SPACER

- output shaft

1шт.

20

B18208

SNAP RING,#100, Ext

output shaft #100, Ext

1шт.

21

S109027

COVER - shaft end

1шт.

22

221-841

PLUG

- hex socket head, 1/4" NPT

1шт.

23

S61749

VALVE

CHECK ASSEMBLY - hydraulic motor

2шт.

24

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

25

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.
