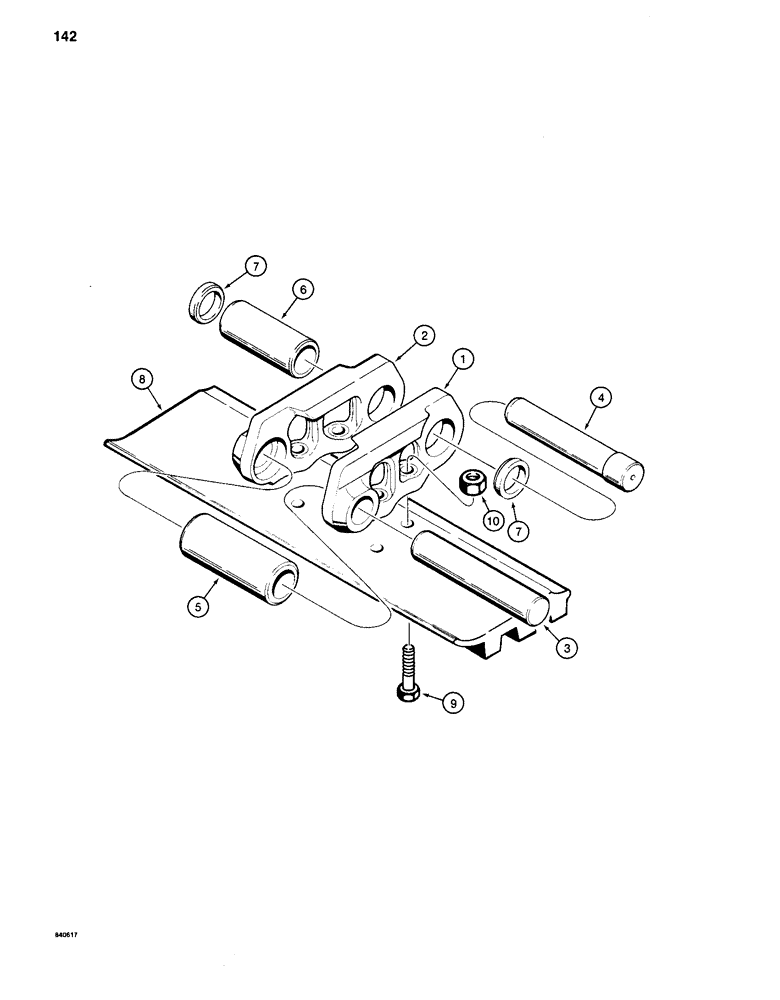

Запчасти Case 880C (142) - TRACK LINKS, SHOES, AND PINS, LONG 7-ROLLER TRACK (04) - UNDERCARRIAGE

S232395

CHAIN (CE)

TRACK ASSEMBLY - with 24" (610 mm) wide track shoes, if used

2шт.

S237785

CHAIN (CE)

TRACK ASSEMBLY - with 30" (762 mm) wide track shoes, if used

2шт.

1

R41053

LINK

- track, right-hand

50шт.

2

R41052

LINK

- track, left-hand

50шт.

3

R14893

PIN,34.9mm OD x 176.22mm L

- standard

49шт.

3

D32164

PIN

- service option, .003" (0.076 mm) oversize

49шт.

4

D36511

PIN

- master

1шт.

5

D45075

SLEEVE,35.23mm ID x 50.77mm OD x 115.16mm L

- standard

49шт.

6

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master

1шт.

7

D45272

BUSHING

SPACER - master bushing

2шт.

8

R25986

TRACK SHOE

- triple grouser, 24" (610 mm) wide, S232395 track assembly only

50шт.

8

S116419

CHAIN (CE)

TRACK SHOE - triple grouser, 30" (762 mm) wide, S237785 track assembly only

50шт.

9

S113061

BOLT

- special, track shoe

200шт.

10

S113062

NUT

- lock, track shoe

200шт.
