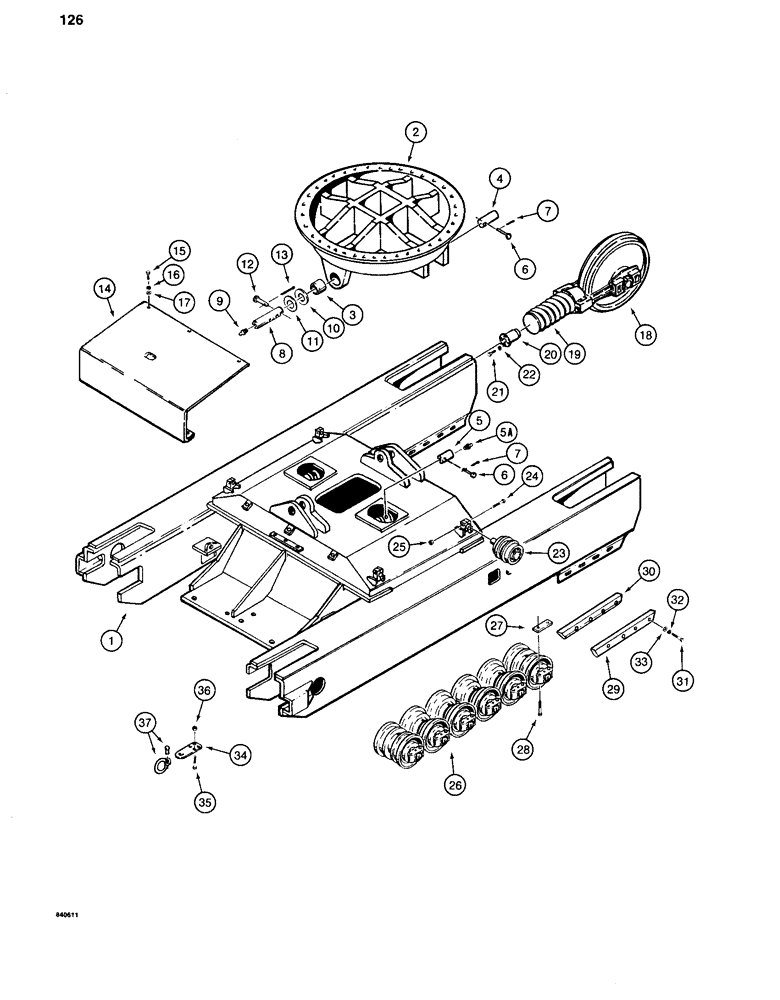

Запчасти Case 880C (126) - UNDERCARRIAGE AND TRACK FRAMES, STANDARD 6-ROLLER TRACK - WITH LEVELER (04) - UNDERCARRIAGE

1

S954909

UNDERCARRIAGE - includes track frames

1шт.

2

S956589

LEVEL

ER - turntable, at bearing, Includes: Ref. 3

1шт.

3

S202163

BUSHING

- leveler

2шт.

4

S78554

PIN

- leveler cylinder to turntable leveler

2шт.

5

S78317

PIN

- leveler cylinder to undercarriage, Includes: Ref. 5A

2шт.

5a

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

6

S61973

AXLE PIN

CLEVIS PIN - 1/2" x 3-3/4"

4шт.

7

132-69

COTTER PIN,5/32" x 1"

PIN, Split (Cotter), 5/32" x 1"

4шт.

8

S72631

PIN

- turntable leveler to undercarriage, Includes: Ref. 9

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

10

S111775

WASHER

- shim, .135" (3.43 mm) thick

1шт.

11

S111777

WASHER

- shim, .059" (1.50 mm) thick

1шт.

12

S61976

CLEVIS PIN

- 5/8" x 4-1/2"

2шт.

13

132-69

COTTER PIN,5/32" x 1"

PIN, Split (Cotter), 5/32" x 1"

2шт.

14

S230471

COVER - track drive motors

1шт.

15

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

5шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

5шт.

17

195-33

WASHER,1/2"

- flat, 1/2"

5шт.

18

REF

INSTRUCTION

IDLER - track, see Figure 134

2шт.

19

REF

INSTRUCTION

ADJUSTER - track, see Figure 134

2шт.

20

S514603

CYLINDER

- track adjustment, parts list Figure 132

2шт.

21

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

22

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

23

R33965

ROLLER

CARRIER ROLLER - upper, parts list Figure 138

4шт.

24

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

4шт.

25

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

26

R33552

ROLL

TRACK ROLLER - lower, parts list Figure 138

12шт.

27

S91175

BAR

PLATE - spacer, used before PIN 6205163 only

24шт.

28

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

Used before PIN 6205163 only Hex, 3/4"-10 x 4", G5

48шт.

28

113-731

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

- hex head, 3/4" - 10 NC x 3-1/4", used on PIN 6205163 and after

48шт.

29

S511363

BAR

- wear, right-hand

2шт.

30

S511364

BAR ASSY.

BAR - wear, left-hand

2шт.

31

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

If used Hex, 1/2"-13 x 1 1/2", G8, Full Thd

16шт.

31

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

If used Hex, 1/2"-13 x 1 1/4", G8, Full Thd

16шт.

32

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

16шт.

33

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2"

16шт.

34

S209710

PLATE

- drawbar

1шт.

35

113-731

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

- hex head, 3/4" - 10 NC x 3-1/4"

4шт.

36

131-450

NUT,3/4"-10

NUT - hex, self-locking, 3/4" - 10 NC

4шт.

37

240-11

SHACKLE

CLEVIS - drawbar, includes clevis pin and cotter pin

1шт.
