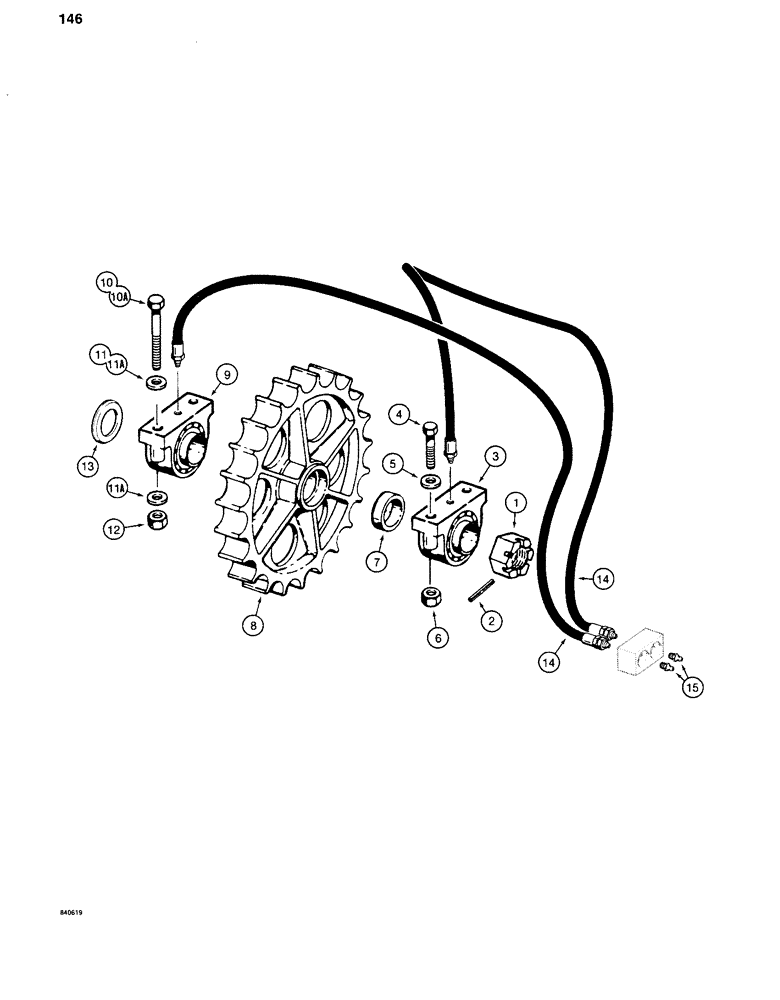

Запчасти Case 880C (146) - TRACK DRIVE SPROCKET AND BEARINGS (03) - TRANSMISSION

1

25-1332

NUT,2"-12, G5

NUT - hex, slotted, 2" - 12 NF

2шт.

2

138-164

LOCK PIN,5/16" x 2 3/4", Slotted

Pin, 5/16" x 2 3/4", Slotted

2шт.

3

S240315

BLOCK

PILLOW BLOCK AND BEARING ASSEMBLY - used on models without remote lubrication, includes Refs. 3A thru 3D

2шт.

3

S242157

BEARING CARRIER

PILLOW BLOCK AND BEARING ASSEMBLY - used on models with remote lubrication, includes Refs. 3A thru 3E

2шт.

3a

NSS

NOT SOLD SEPARAT

HOUSING - pillow block, not shown

1шт.

3b

N60324

SEAL

- bearing, not shown

2шт.

3c

N60323

TAPERED BEARING

BEARING - complete, not shown

1шт.

3d

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, bottom of bearing, not shown

1шт.

3e

221-1849

PLUG

- hex socket head, 1/8" NPT, top of bearing, remove and install lubrication hose, not shown

1шт.

4

26-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

- hex head, 5/8" - 11 NC x 3-1/2", grade 8

4шт.

5

196-25

WASHER,21/32" x 1 5/16" x .188", HDN

- flat, 5/8", hardened

4шт.

6

131-460

LOCK NUT,5/8"-11

NUT - hex, self-locking, 5/8" - 11 NC

4шт.

7

S221929

BUSHING,58.14mm ID x 83.84mm OD x 43.56mm L

COLLAR - sprocket to outer pillow block bearing

2шт.

8

S619061

SPROCKET ASSY.

SPROCKET - track drive (Replaces S610420)

2шт.

9

S240316

BLOCK

PILLOW BLOCK AND BEARING ASSEMBLY - used on models without remote lubrication, includes Refs. 9A thru 9E

2шт.

9

S242158

BEARING CARRIER

PILLOW BLOCK AND BEARING ASSEMBLY - used on models with remote lubrication, includes Refs. 9A thru 9F

2шт.

9a

NSS

NOT SOLD SEPARAT

HOUSING - pillow block, not shown

1шт.

9b

N60125

SEAL

- bearing, not shown

2шт.

9c

N60353

RING, SNAP

SNAP RING - bearing, not shown

1шт.

9d

N60124

BEARING ASSY

BEARING - complete, not shown

1шт.

9e

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, bottom of bearing, not shown

1шт.

9f

221-1849

PLUG

- hex socket head, 1/8" NPT, top of bearing, remove and install lubrication hose, not shown

1шт.

10

113-788

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

- hex head, 3/4" - 10 NC x 4-1/2", used before PIN 6205352

4шт.

10a

26-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 8

- hex head, 3/4" - 10 NC x 4-1/4", used on PIN 6205352 and after

4шт.

11

S84752

WASHER

- flat, 3/4", hardened, used before PIN 6205352

2шт.

11a

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- flat, 3/4", hardened, special, used on PIN 6205352 and after

8шт.

12

131-450

NUT,3/4"-10

NUT - hex, self-locking, 3/4" - 10 NC

4шт.

13

S516449

SPACER

- inner pillow block bearing to transmission shaft seal

2шт.

14

S120381

HOSE ASSY.

HOSE - remote lubrication, 32" (813 mm) long, if used

4шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, if used

4шт.
