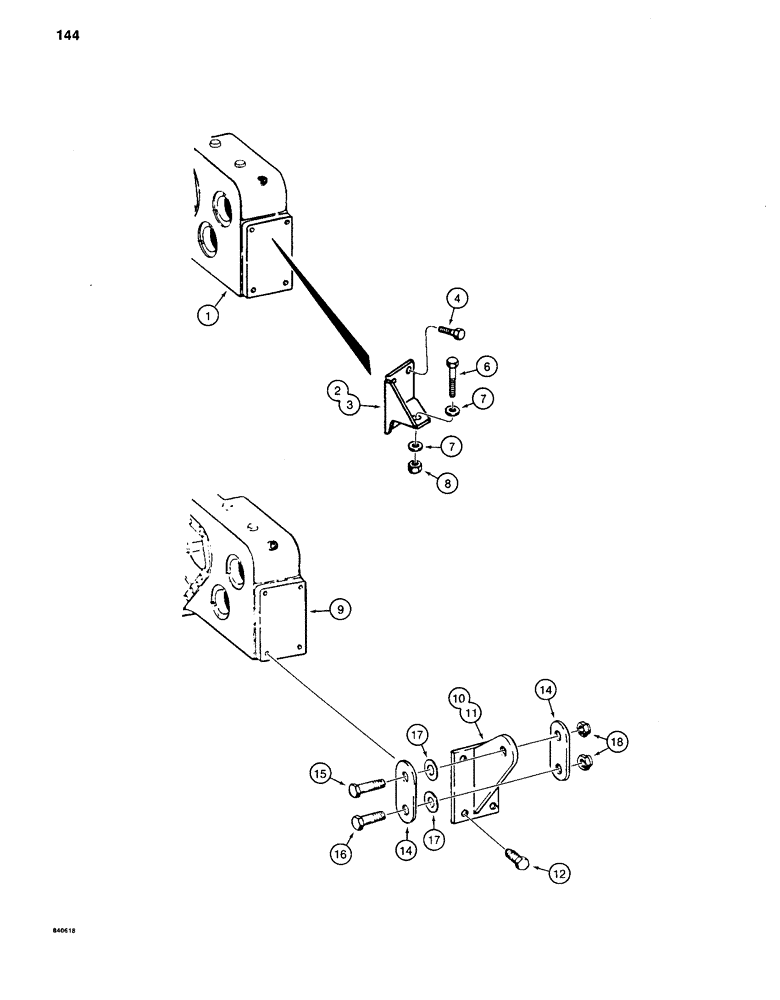

Запчасти Case 880C (144) - FINAL DRIVE TRANSMISSION MOUNTING (03) - TRANSMISSION

1

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 148 for the correct assembly and components, standard 6 roller track

2шт.

2

S209229

BRACKET

- transmission mounting, right-hand, standard 6 roller track

1шт.

3

S209230

BRACKET

- transmission mounting, left-hand, standard 6 roller track

1шт.

4

113-709

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

Use with Loctite 271 red, see below, standard 6 roller track Hex, 3/4"-10 x 1 1/2", G5

8шт.

6

26-1648

BOLT,Hex, 1" - 8 x 3", Gr 8

- hex head, 1" - 8 NC x 3", standard 6 roller track

2шт.

7

S91091

WASHER

- flat, special, standard 6 roller track

4шт.

8

131-20

LOCK NUT,1"-8, GB

NUT - hex, self-locking, 1 inch - 8 NC, standard 6 roller track

2шт.

9

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 148 for the correct assembly and components, long 7 roller track

2шт.

10

S514516

BRACKET

- transmission mounting, right-hand, long 7 roller track

1шт.

11

S514517

BRACKET

- transmission mounting, left-hand, long 7 roller track

1шт.

12

113-709

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

Use with Loctite 271 red, see below, long 7 roller track Hex, 3/4"-10 x 1 1/2", G5

8шт.

14

S238925

LINKAGE

LINK - bracket to track frame, long 7 roller track

4шт.

15

113-926

BOLT,Hex, 1" - 8 x 4", Gr 5

- hex head, 1" - 8 NC x 4", upper, replaces shoulder bolt on some, long 7 roller track machines

2шт.

Excavators before PIN 6205456 used 5/8" shoulder bolts, 5/8" flat washers and 5/8" NF self-locking nuts with S238925 links. When replacing these machines, order the necessary 1" hardware to complete theinstallation.

1шт.

16

113-933

BOLT,Hex, 1" - 8 x 3-3/4", Gr 5

- hex head, 1" - 8 NC x 3-3/4", lower, replaces shoulder bolt on, long 7 roller track some machines

2шт.

Excavators before PIN 6205456 used 5/8" shoulder bolts, 5/8" flat washers and 5/8" NF self-locking nuts with S238925 links. When replacing these machines, order the necessary 1" hardware to complete theinstallation.

1шт.

17

195-53

WASHER,1" x 2" x .134"

- flat, 1", used for shimming, long 7 roller track

1шт.

Excavators before PIN 6205456 used 5/8" shoulder bolts, 5/8" flat washers and 5/8" NF self-locking nuts with S238925 links. When replacing these machines, order the necessary 1" hardware to complete theinstallation.

1шт.

18

131-82

NUT,1"-8

NUT - hex, self-locking, 1" - 8 NC, long 7 roller track

4шт.

Excavators before PIN 6205456 used 5/8" shoulder bolts, 5/8" flat washers and 5/8" NF self-locking nuts with S238925 links. When replacing these machines, order the necessary 1" hardware to complete theinstallation.

1шт.

B17423

LOCTITE

- 271 red, 50cc bottle, long 7 roller track, use with Refs. 4 and 12

1шт.
