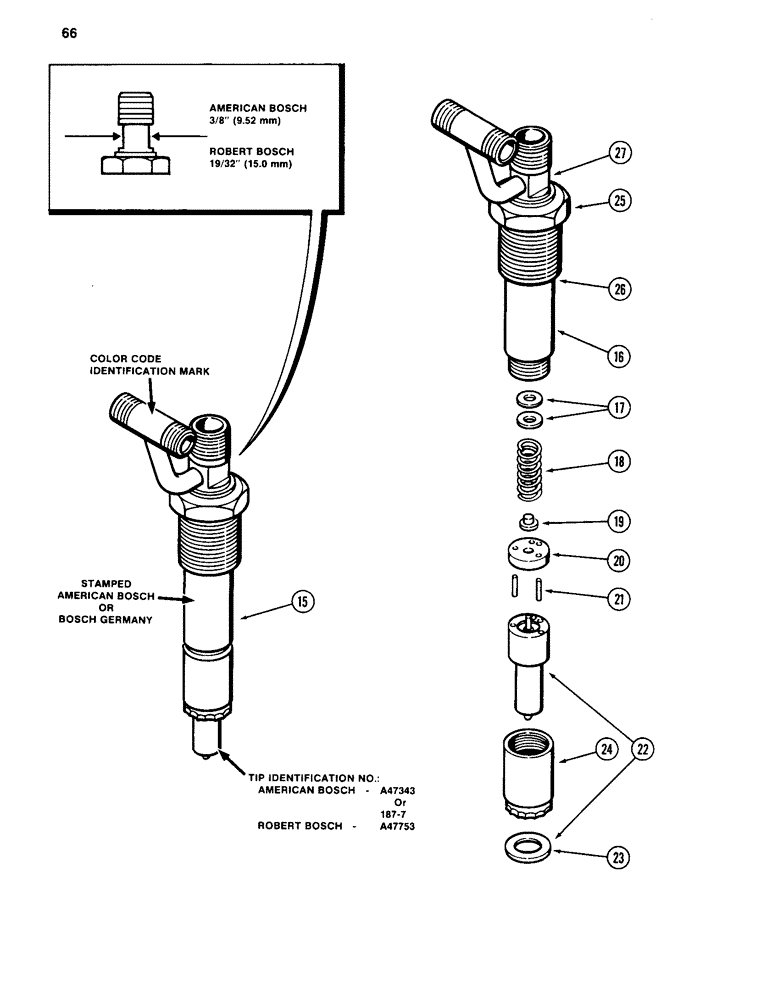

Запчасти Case 880C (066) - FUEL INJECTOR NOZZLE, 504BD DIESEL ENGINE, BLUE COLOR CODE IDENTIFICATION (02) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
A156323
NOZZLE CAP
NOZZLE ASSEMBLY - fuel injection (Continued from Figure 64), Includes: Ref. 15 - 17
6шт.
A156323R
REMAN-INJECT NOZZLE
880C
6шт.
A156323C
CORE-NOZZLE, INJECT
Return Number
1шт.
15
NSS
NOT SOLD SEPARAT
NOZZLE ASSEMBLY - fuel injection, Robert Bosch, Includes: Ref. 16 and 17 (Reference No. A156322) (10
1шт.
Internal parts between the American Bosch and Robert Bosch injectors are not interchangeable. See illustration for identification.
1шт.
16
NSS
NOT SOLD SEPARAT
BODY - nozzle (Order A156323)
1шт.
A48186
KIT
- shim, nozzle opening pressure (One kit will repair six nozzles), Includes: Ref. 17
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.00 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.04 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.08 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.10 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.14 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.18 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.20 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.24 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.28 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.30 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.34 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.38 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.40 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.44 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.48 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.50 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.54 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.58 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.60 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.64 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.68 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.70 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.74 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.78 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.80 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.84 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.88 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.90 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.94 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.98 mm (5 in kit)
1шт.
18
A48198
SPRING
- nozzle pressure
1шт.
19
A48203
SEAT
- nozzle pressure spring
1шт.
20
A48199
VALVE
STOP - nozzle
1шт.
21
A48200
PIN
- valve stop
2шт.
22
A47753
NOZZLE CAP
TIP ASSEMBLY - nozzle injector, Includes: Ref. 23
1шт.
23
A76640
GASKET
- nozzle
1шт.
When nozzle is removed from head, A76640 gasket must be replaced, before nozzle is installed back in head.
1шт.
24
A48201
NUT
CAP NUT - nozzle end
1шт.
25
A48197
NUT
- nozzle
1шт.
26
A48202
RING
- retaining
1шт.
27
A48196
RING
- retaining
1шт.
Выбрано товаров: 48
