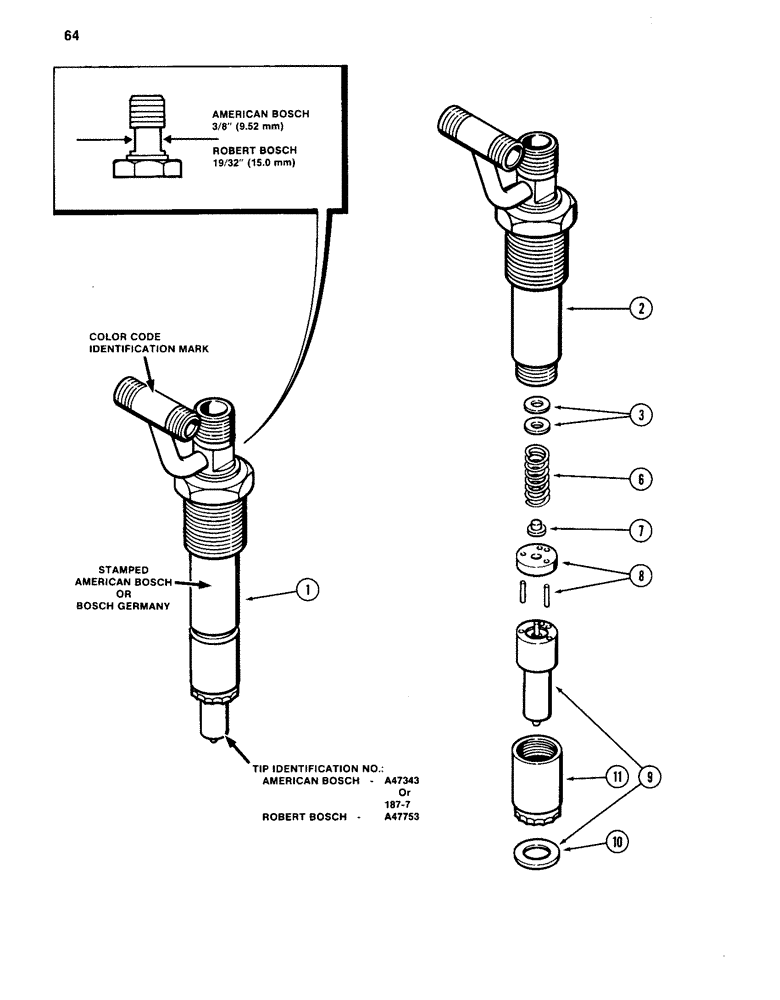

Запчасти Case 880C (064) - FUEL INJECTOR NOZZLE, 504BD DIESEL ENGINE, BLUE COLOR CODE IDENTIFICATION (02) - FUEL SYSTEM

A156323

NOZZLE CAP

NOZZLE ASSEMBLY - fuel injection, Includes: Ref. 2 - 11

6шт.

A156323R

REMAN-INJECT NOZZLE

880C

6шт.

A156323C

CORE-NOZZLE, INJECT

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

NOZZLE ASSEMBLY - fuel injection, American Bosch \s8(Reference No. A67465)\s(10, Includes: Ref. 2 - 11

1шт.

Internal parts between the American Bosch and Robert Bosch injectors are not interchangeable. See illustration for identification.

1шт.

Reference numbers in description are for Cares use only and cannot be ordered separately.

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A156323)

1шт.

A44860

SHIM

KIT - shim, nozzle opening pressure (One kit will repair six nozzles), Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0.062 inch (1.57 mm) 6 in kit

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0.002 inch (0.05 mm) 80 in kit

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch (0.18 mm) 50 in kit

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch (0.25 mm) 50 in kit

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0.025 inch (0.64 mm) 20 in kit

1шт.

6

A44864

SPRING

- nozzle pressure

1шт.

7

A44863

SEAT

- nozzle pressure spring

1шт.

8

A44862

VALVE

STOP - nozzle with pin (Includes dowel pins)

1шт.

9

A47343

NOZZLE CAP

TIP ASSEMBLY - nozzle injector, Includes: Ref. 10

1шт.

10

A76640

GASKET

- nozzle

1шт.

When nozzle is removed from head, A76640 gasket must be replaced, before nozzle is installed back in head.

1шт.

11

A44861

NUT

NUT - nozzle end

1шт.
