Запчасти Case 880C (062) - INJECTION PUMP DRIVE, 504BD DIESEL ENGINE (02) - FUEL SYSTEM

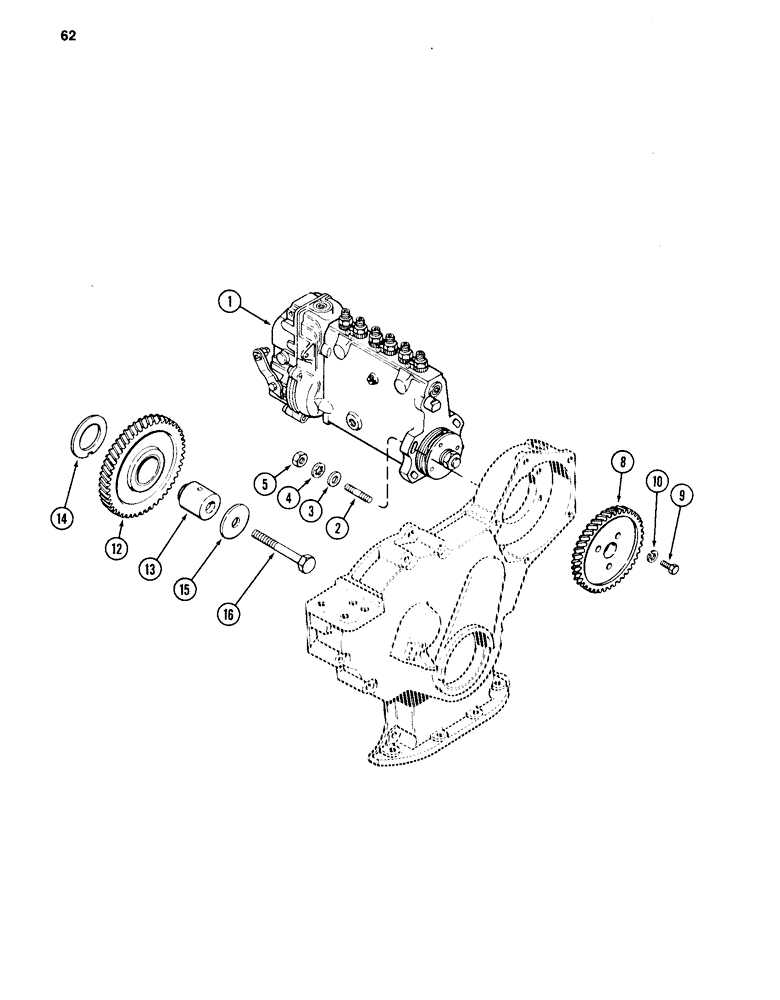

Схема запчастей Case 880C - (062) - INJECTION PUMP DRIVE, 504BD DIESEL ENGINE (02) - FUEL SYSTEM

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figure 60)

1шт.

2

A59077

STUD

- pump mounting

3шт.

2

A142092

STUD

- drilled, pump mounting

1шт.

3

A57470

WASHER

- stud

4шт.

4

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8 inch NC

3шт.

5

25-126

SLOTTED NUT,3/8"-16, G5

NUT - hex jam, 3/8 inch NC

1шт.

8

A58693

GEAR

- injection pump drive

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

10

92-6

LOCK WASHER,3/8"

3шт.

12

A62542

GEAR

ASSEMBLY - idler

1шт.

13

A58690

SHAFT

- idler gear

1шт.

14

A58691

WASHER

- thrust

1шт.

15

A58692

PLATE

- thrust

1шт.

16

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

- hex, 1/2 NC x 4-1/2 inch

1шт.

Выбрано товаров: 15
