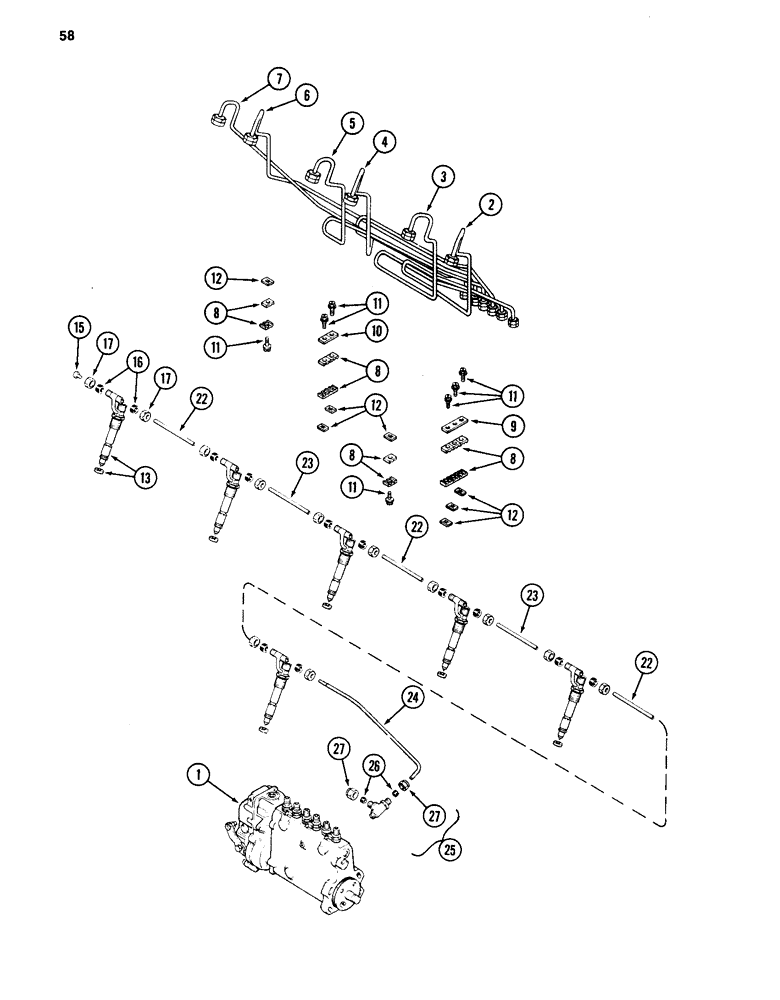

Запчасти Case 880C (058) - FUEL INJECTION SYSTEM, 504BD DIESEL ENGINE (02) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP - fuel injection (See Figure 60)

1шт.

2

A156885

TUBE

- fuel injection, No. 1 cylinder (Replaces A67353)

1шт.

3

A156886

TUBE

- fuel injection, No. 2 cylinder (Replaces A67354)

1шт.

4

A156887

TUBE

- fuel injection, No. 3 cylinder (Replaces A67355)

1шт.

5

A156888

TUBE

- fuel injection, No. 4 cylinder (Replaces A67356)

1шт.

6

A156889

TUBE

- fuel injection, No. 5 cylinder (Replaces A67357)

1шт.

7

A156890

PIPE

TUBE - fuel injection, No. 6 cylinder (Replaces A67358)

1шт.

8

A58709

BRACKET

- injection tube

14шт.

9

A58708

PLATE

- injection tube bracket (6 line)

1шт.

10

A58710

PLATE

- injection tube bracket (4 line)

1шт.

11

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

- hex slotted head, No. 10 NC x 1 inch

7шт.

12

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - No. 10 NC Tinnerman

7шт.

13

REF

INSTRUCTION

NOZZLE - fuel injection (See Figure 64)

6шт.

15

47-37

RIVET,FH, 3/16" x 7/16"

- flat head, 3/16 diameter x 7/16 inch long (5 x 11 mm)

1шт.

16

222-101

SLEEVE,3/16" Tube

- 3/16 inch tube

12шт.

17

222-111

TUBE NUT,7/16" - 24

NUT - hex, 7/16-24 inch thread

12шт.

22

A76642

TUBE

- leak off, 4-11/16 inch long (119 mm)

3шт.

23

A76641

TUBE

- leak off, 5-3/4 inch long (46 mm)

2шт.

24

A153816

TUBE

- leak off, No. 1, Serial Range: nozzle-valve

1шт.

25

A59097

VALVE

ASSEMBLY - restrictor, leak off, Includes: Ref. 26 and 27

1шт.

26

222-102

SLEEVE,1/4" Tube

2шт.

27

87017024

TUBE NUT,1/2"-24

NUT - hex, 1/2-24 inch thread

2шт.
