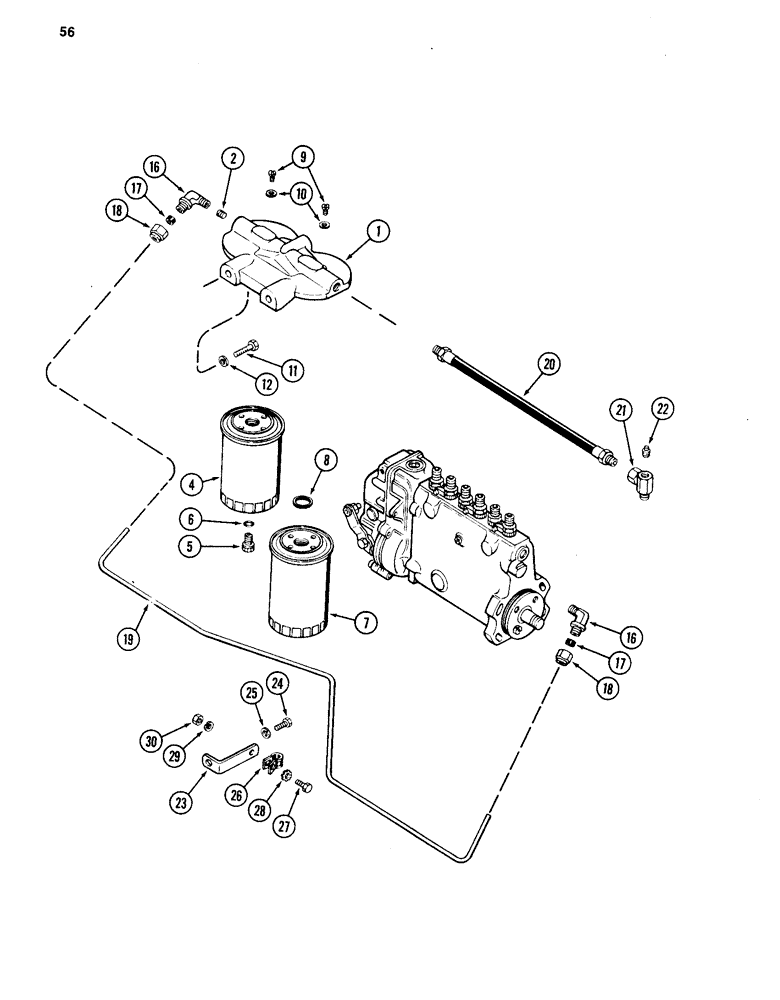

Запчасти Case 880C (056) - FUEL FILTER SYSTEM, 504BD DIESEL ENGINE (02) - FUEL SYSTEM

1

A62339

HEAD

- fuel filter

1шт.

2

221-1849

PLUG

- socket head, 1/8 inch PT

1шт.

A44068

FUEL FILTER

KIT - filter element replacement, Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - first stage \s8(Reference No. A58712)\s(10, Includes: Ref. 5 and 6

1шт.

Reference numbers in description are for Cares use only and cannot be ordered separately.

1шт.

5

G49080

PLUG

- plastic, 3/8 inch NF

1шт.

6

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Plug

1шт.

7

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - second stage \s8(Reference No. A77220)\s(10, Includes: Ref. 8

1шт.

Reference numbers in description are for Cares use only and cannot be ordered separately.

1шт.

8

NSS

NOT SOLD SEPARAT

GASKET - filter to head (Order A44068)\s8(Reference No. A42315) \s(10

1шт.

Whenever filter is removed, gasket must also be removed and replaced with a new gasket.

1шт.

Reference numbers in description are for Cares use only and cannot be ordered separately.

1шт.

9

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed

2шт.

10

A146368

WASHER,5.08mm ID x 9.65mm OD x 1.02mm Thk

- bleed screw

2шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

16

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - 90 degree, 5/16 tube 7/16-24 thread x 1/4 inch PT, Includes: Ref. 17 and 18

2шт.

17

222-653

SLEEVE,5/16" Tube, Comp

- 5/16 inch tube

1шт.

18

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT - hex, 1/2-24 inch thread

1шт.

19

A157329

TUBE

- pump to filter head (Replaces A62342)

1шт.

20

A65564

HOSE,9.53mm ID x 390.65mm L, SAE 100R6

- filter, Serial Range: head-pump

1шт.

21

A20539

FITTING

UNION - switch, Serial Range: hose-pump

1шт.

22

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - square head, 1/8 inch PT

1шт.

23

A64856

BRACKET

- tube

1шт.

24

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

25

92-6

LOCK WASHER,3/8"

1шт.

26

A62209

CLAMP,5/16", Insul, 1/4" Bolt

CLIP - tube

1шт.

27

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

28

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER - internal lock, 1/4 inch

1шт.

29

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

30

25-104

NUT,1/4"-20, G5

1шт.
