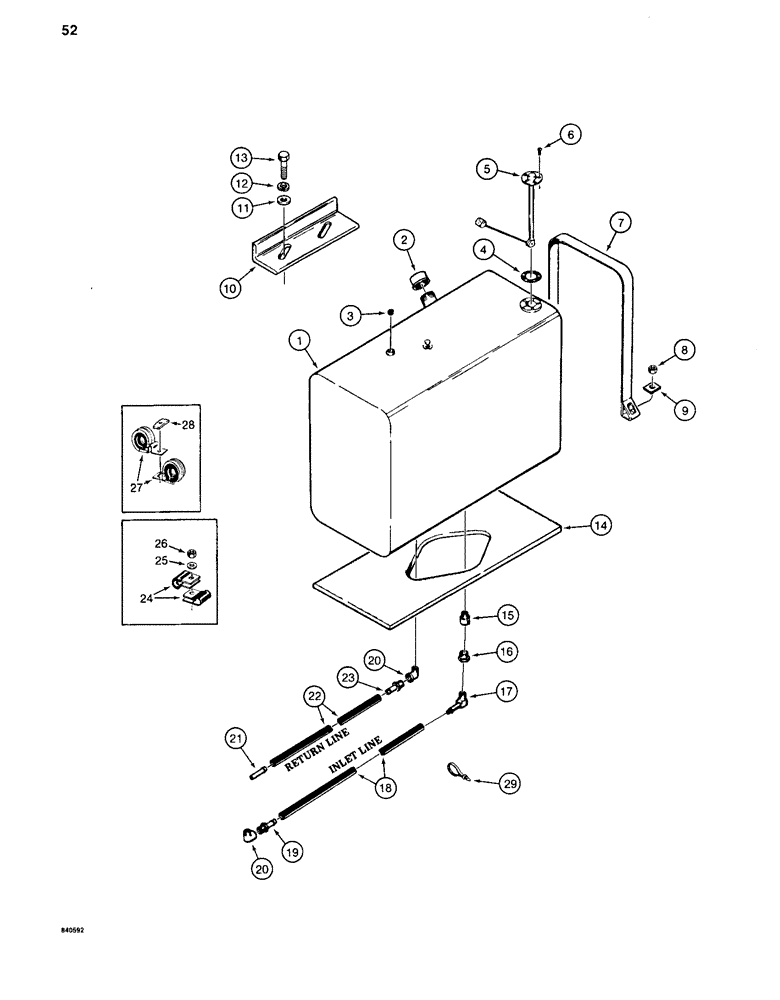

Запчасти Case 880C (052) - FUEL TANK AND LINES (02) - FUEL SYSTEM

1

S514118

FUEL TANK

ASSEMBLY - diesel fuel, Includes: Ref. 2

1шт.

2

A18870

FILLER CAP

CAP - fuel tank

1шт.

3

221-662

PLUG,Hex Hd, 1/4"-18

- hex head, 1/4" NPT

1шт.

4

S49745

GASKET

GASKET - fuel gauge

1шт.

5

S502600

SENDER UNIT

FUEL GAUGE ASSEMBLY - fuel level, used before 6205236

1шт.

5

S239445

ELECTRICAL GAUGE

FUEL GAUGE ASSEMBLY - fuel level, used on PIN 6205236 and after

1шт.

6

182-147

SCREW,Sl Pan Hd, #10 - 32 x 3/4"

MACHINE SCREW - No. 10 - 32 NF x 3/4"

5шт.

7

S93863

STRAP

- mounting, fuel tank

2шт.

8

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

9

S108148

SPACER

- mounting strap

4шт.

10

S238105

ANGLE

- mounting, fuel tank

1шт.

11

S95569

WASHER

- flat, special, 1/2"

2шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

13

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

14

S224325

PAD

- fuel tank

1шт.

15

217-81

VALVE

- fuel shutoff

1шт.

16

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

- 3/8" NPT x 1/4" NPT

1шт.

17

220-520

ELBOW,90 Degree, 1/8" NPT x 3/8" Barbed

BARB FITTING - 90 degree, at tank

1шт.

18

REF

INSTRUCTION

HOSE - fuel line, 80" (2032 mm) long, cut from S118400, see below

1шт.

19

217-125

FITTING,3/8" Hose Barb x 1/4" Male NPTF

BARB FITTING - straight, at engine

1шт.

20

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- at engine on fuel line and at tank on return line

2шт.

21

S66490

TUBE

- engine return

1шт.

22

REF

INSTRUCTION

HOSE - return line, 85" (2159 mm) long, cut from S118378, see below

1шт.

23

220-2

FITTING

BARB FITTING - straight, at tank

1шт.

24

NLS

NO LONGER SERVICED

- hose

2шт.

25

195-525

WASHER,3/8", SAE

- flat, 3/8", if used

1шт.

26

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

27

214-1204

CLAMP

- hose, if used

2шт.

28

S48576

NUT

- speed, if used

1шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

S118400

HOSE,0.38" ID x 300.00"

- Bulk 0.38" ID x 300.00"

1шт.

S118378

HOSE,0.25" ID BULK, SAE 30R2 Type 3

0.25" ID x 168.00" Bulk, SAE 30R2 Type 3

1шт.
