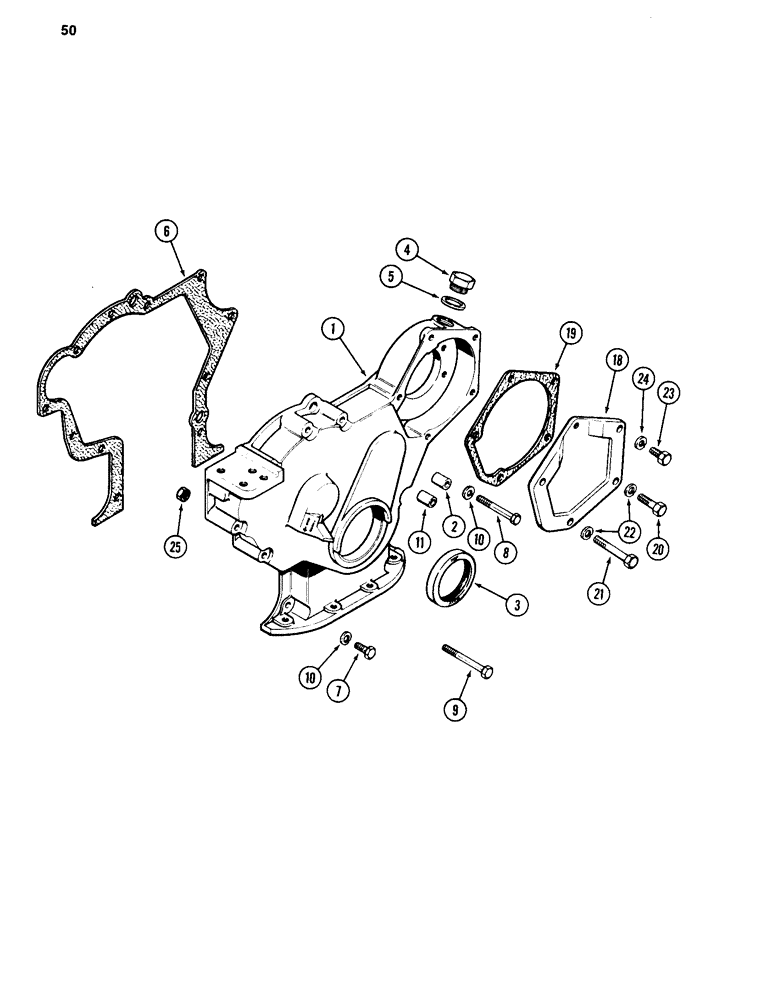

Запчасти Case 880C (050) - TIMING GEAR COVER, 504BD DIESEL ENGINE (01) - ENGINE

1

A166141

HOUSING

COVER ASSEMBLY - timing gear (Replaces A58609), Includes: Ref. 2

1шт.

2

A58611

PIN

- locating

2шт.

3

A62049

OIL SEAL

- oil, crankshaft front

1шт.

4

A21140

PLUG

- timing hole

1шт.

5

A58613

SEALING WASHER

GASKET - plug

1шт.

6

A58612

GASKET

-, Serial Range: cover-block

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

8

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

2шт.

9

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

3шт.

10

92-6

LOCK WASHER,3/8"

9шт.

11

A19774

BUSHING

SPACER - alternator pry point

1шт.

18

A61053

COVER

- pump drive gear

1шт.

19

A58615

GASKET

- cover

1шт.

20

A151921

BOLT

- hex drilled, 3/8 NC x 1-1/4 inch

2шт.

21

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

2шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

24

92-5

LOCK WASHER,5/16"

1шт.

25

15-106

NUT - hex, 3/8 inch NC

2шт.
