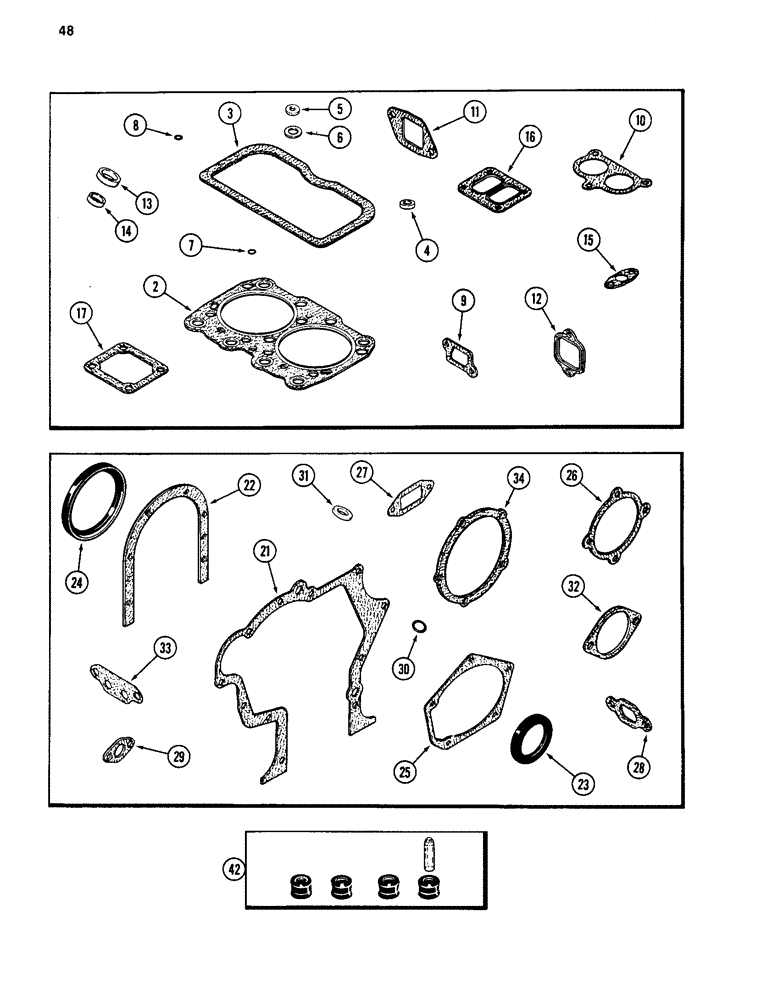

Запчасти Case 880C (048) - ENGINE GASKET KITS, 504BD DIESEL ENGINE, VALVE GRIND KIT (01) - ENGINE

A157300

GASKET

KIT - valve grind (Replaces A151404)

1шт.

For complete engine overhaul order A157300, A44075 and A152479.

1шт.

2

A138397

CYLINDER HEAD GASKET

- cylinder, Serial Range: head-block

3шт.

3

A156960

CYLINDER HEAD GASKET,3.05mm Thk

- cylinder head cover

3шт.

4

A142098

GROMMET

GASKET - cover studs

6шт.

5

A34133

GASKET

- breather tube bolt

3шт.

6

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather, Serial Range: tube-cover

3шт.

7

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- rocker shaft oil tube

3шт.

8

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

12шт.

9

A58637

MANIFOLD GASKET

- water manifold

3шт.

10

A58639

GASKET

- thermostat housing

1шт.

11

A58662

MANIFOLD GASKET

- intake manifold

6шт.

12

A58895

GASKET

- exhaust manifold

6шт.

13

1342829C1

GASKET

WASHER - injection nozzle (Not used this application); Replaces A76640

6шт.

14

A138817

RING,2.64mm Thk

SEAL - turbocharger (Not used this application)

6шт.

15

A58892

GASKET,1.59mm Thk

- turbocharger oil drain tube

1шт.

16

A58899

GASKET,0.45mm Thk

-, Serial Range: turbocharger-manifold

2шт.

17

A58910

GASKET

- air intake elbow

1шт.

A152831

SHIM,91.95mm ID x 101.6mm OD x 0.84mm Thk

- turbocharger exhaust (Not used this application)

1шт.

A44075

GASKET KIT

- cylinder block

1шт.

For complete engine overhaul order A157300, A44075 and A152479.

1шт.

21

A58612

GASKET

- timing gear cover, cylinder block kit

1шт.

22

A32830

GASKET

- rear oil seal retainer, cylinder block kit

1шт.

23

A62049

OIL SEAL

- oil, crankshaft front, cylinder block kit

1шт.

24

A62050

OIL SEAL

- oil, crankshaft rear, cylinder block kit

1шт.

25

A58615

GASKET

- fuel pump cover, cylinder block kit

1шт.

26

A58646

GASKET

- water pump, cylinder block kit

1шт.

27

A58649

GASKET

- water pump body, cylinder block kit

1шт.

28

A58670

GASKET

- oil cooler tube to block, cylinder kit

1шт.

29

A58680

OIL PAN GASKET SET

- oil cooler tube to water pump, cylinder block kit

1шт.

30

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- oil filter base, cylinder block kit

3шт.

31

A58613

SEALING WASHER

GASKET - timing gear cover plug, cylinder block kit

1шт.

32

A58617

GASKET

- auxiliary drive cover (Not used this application), cylinder block kit

1шт.

33

A58756

OIL PAN GASKET SET

- oil filter boss (Not used this application), cylinder block kit

1шт.

34

A76656

GASKET

- water pump body (Not used this application), cylinder block kit

1шт.

42

M20614

SEAL KIT

SEAL KIT - valve (includes four seals and installation sleeve), cylinder block kit

1шт.
