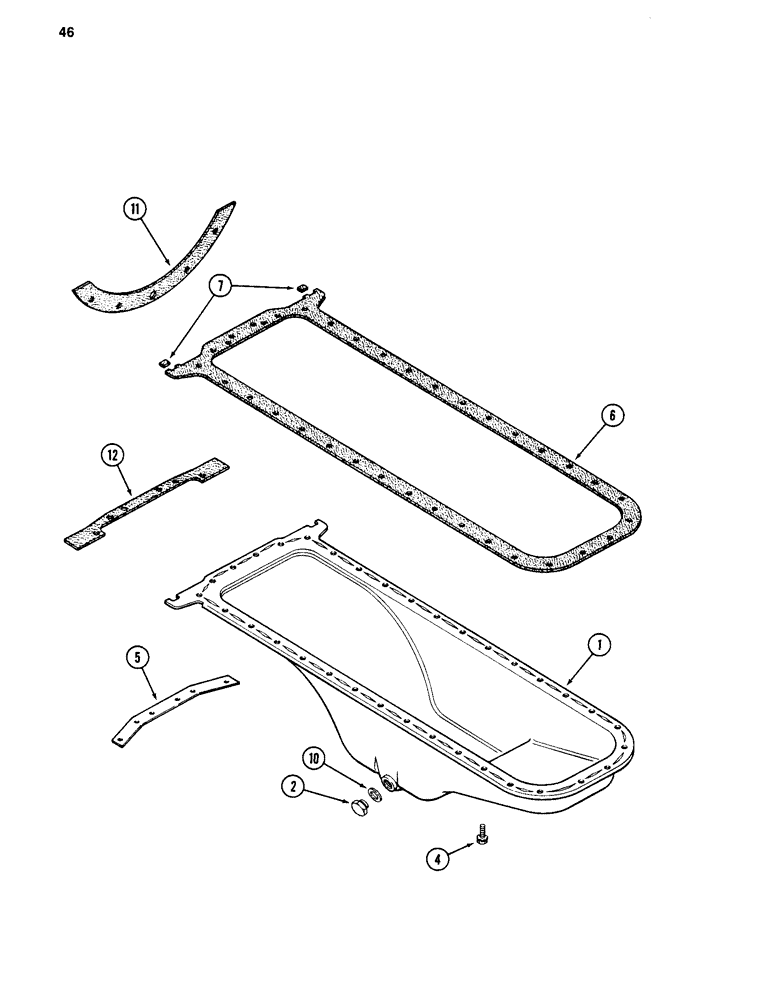

Запчасти Case 880C (046) - OIL PAN, 504BD DIESEL ENGINE (01) - ENGINE

1

A148755

PAN, ENGINE OIL

PAN - oil, engine

1шт.

2

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan

1шт.

4

NSS

NOT SOLD SEPARAT

BOLT - hex Sems, 3/8 NC x 7/8 inch (Order (1) 113-211 bolt and (1) 92-6 lockwasher

32шт.

5

A65999

STRAP

- reinforcement, oil pan

1шт.

A152479

GASKET KIT

- oil pan, Includes: Ref. 6 - 12

1шт.

6

A150688

GASKET

-, Serial Range: pan-block

1шт.

7

A150690

OIL PAN GASKET SET

- corner, pan to housing (Not used this application)

2шт.

10

A27968

RING

- drain plug (copper)

1шт.

11

A57966

GASKET

- pan to transmission (Not used this application)

1шт.

12

A150689

GASKET

- flywheel housing

1шт.
