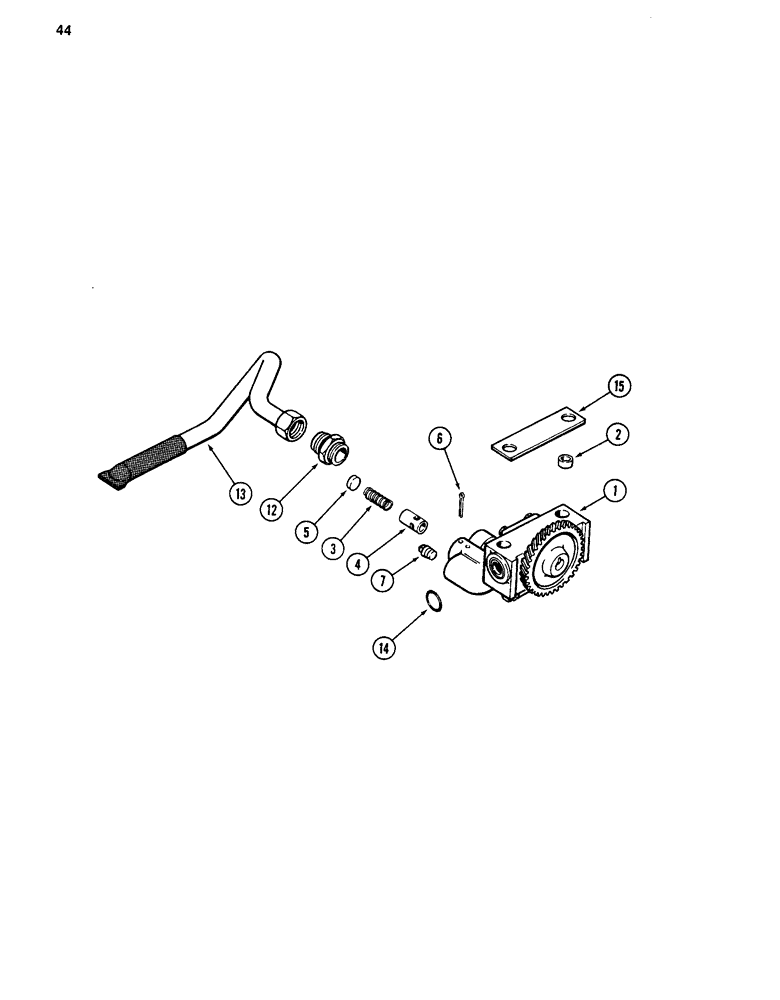

Запчасти Case 880C (044) - OIL PUMP, 504BD DIESEL ENGINE (01) - ENGINE

1

A153805

PUMP, ENGINE OIL

PUMP ASSEMBLY - engine oil, Includes: Ref. 2 - 7

1шт.

2

A58915

SLEEVE

- locating

1шт.

3

A155980

SPRING

- relief valve

1шт.

4

A65083

VALVE

- relief

1шт.

5

41-1011

PLUG,Cup, 11/16"

- cup type, 11/16 inch (17 mm) diameter

1шт.

6

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

7

221-844

PLUG,Hex Soc, 1/2"-14

- socket head, 1/2 inch PT

1шт.

12

A142004

CONNECTOR, ELEC

CONNECTOR - suction tube

1шт.

13

A142503

SCREEN

- suction

1шт.

14

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- pump to block

1шт.

15

A58859

SHIM,.005" Thk

Pump to brg. cap (0.127 mm) .005" Thk

1шт.
