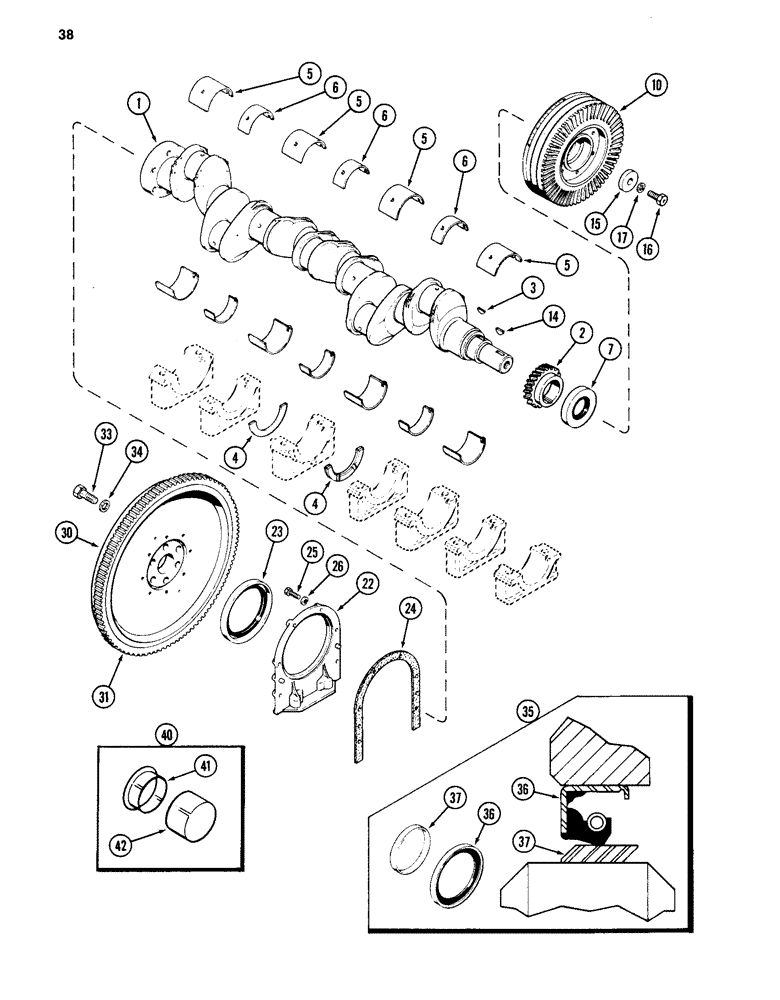

Запчасти Case 880C (038) - CRANKSHAFT AND FLYWHEEL, 504BD DIESEL ENGINE (01) - ENGINE

1

A166117

CRANKSHAFT

ASSEMBLY - engine (Service Only) (0.010 inch oversize), Includes: Ref. 2 and 3

1шт.

1

A154305

CRANKSHAFT

ASSEMBLY - engine (JI Case Installed), Includes: Ref. 2 and 3

1шт.

2

A66404

GEAR

- crankshaft

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear #C, 5/16" x 1 1/8", HT

1шт.

4

A62573

THRUST WASHER,88.06mm ID x 114.3mm OD x 4.7mm Thk

WASHER - thrust, 0.185 inch (4.699 mm) (Standard)

2шт.

4

A42932

BEARING WASHER,87.81mm ID x 114.55mm OD x 4.88mm Thk

WASHER - thrust, 0.191 inch (4.851 mm) (Oversize)

2шт.

5

A43163

BEARING LINER

LINERS - wide main bearing (Set of 2) (Standard)

4шт.

5

A43164

BEARING LINER

LINERS - wide main bearing (Set of 2) 0.002 inch undersize (0.051 mm)

4шт.

5

A43165

BEARING LINER

LINERS - wide main bearing (Set of 2) 0.010 inch undersize (0.254 mm)

4шт.

5

A43166

BEARING LINER

LINERS - wide main bearing (Set of 2) 0.020 inch undersize (0.508 mm)

4шт.

5

A43167

BEARING LINER

LINERS - wide main bearing (Set of 2) 0.030 inch undersize (0.762 mm)

4шт.

6

A43158

BEARING LINER

LINERS - narrow main bearing (Set of 2) (Standard)

3шт.

6

A43159

BEARING LINER

LINERS - narrow main bearing (Set of 2) 0.002 inch undersize (0.051 mm)

3шт.

6

A43160

BEARING LINER

LINERS - narrow main bearing (Set of 2) 0.010 inch undersize (0.254 mm)

3шт.

6

A43161

BEARING SET

LINERS - narrow main bearing (Set of 2) 0.020 inch undersize (0.508 mm)

3шт.

6

A43162

BEARING LINER

LINERS - narrow main bearing (Set of 2) 0.030 inch undersize (0.762 mm)

3шт.

7

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

- oil, front (Replaces A62049)

1шт.

10

A65125

PULLEY

- crankshaft

1шт.

14

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Pulley #C, 5/16" x 1 1/8", HT

1шт.

15

A27903

WASHER

- pulley retainer

1шт.

16

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Pulley to crankshaft Hex, 5/8"-18 x 1 1/2", G5

1шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

22

A57457

RETAINER

- rear oil seal

1шт.

23

A62050

OIL SEAL

- oil, rear

1шт.

24

A32830

GASKET

- retainer

1шт.

25

193-554

SCREW,SEMS, Hex Hd, 3/8"-16 x 1 1/4", G5

BOLT - hex Sems 3/8 NC x 1-1/4 inch

6шт.

26

92-6

LOCK WASHER,3/8"

6шт.

30

A58683

FLYWHEEL

ASSEMBLY - crankshaft, Includes: Ref. 31

1шт.

31

A27920

GEAR

- ring

1шт.

33

28-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 8

- hex, 5/8 NF x 1-1/2 inch

6шт.

34

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - bolt

6шт.

35

A43194

KIT

- wear seal, rear, Includes: Ref. 36 and 37

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL - wear

1шт.

37

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

40

A154684

SLEEVE

KIT - wear seal, front, Includes: Ref. 41 and 42

1шт.

41

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

42

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.
