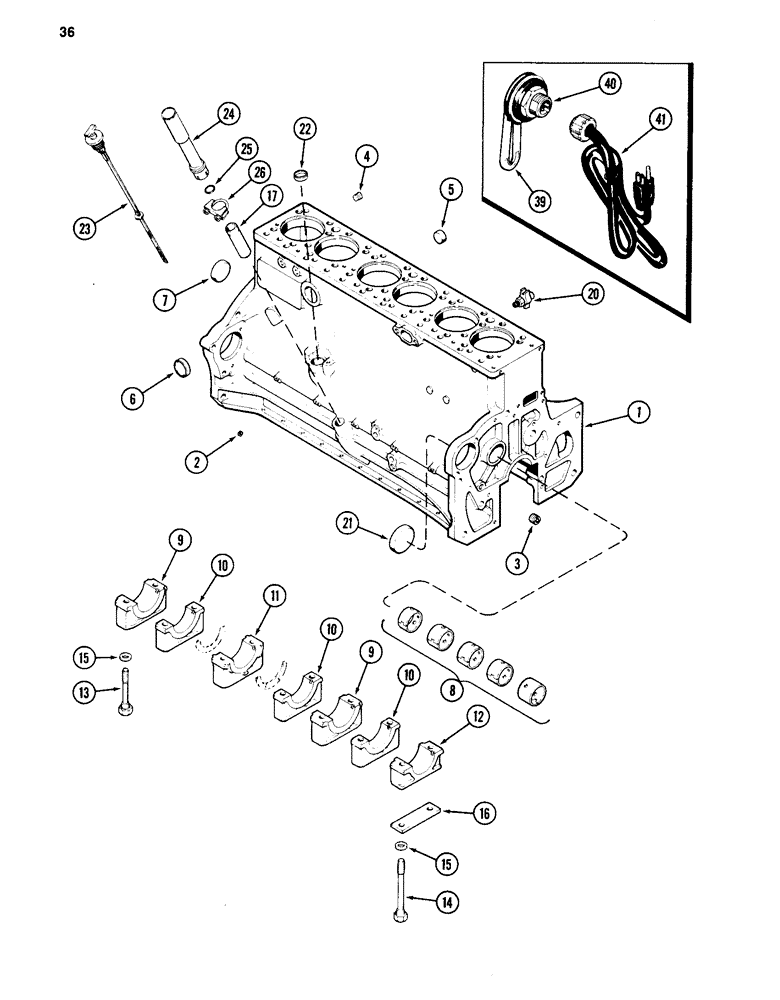

Запчасти Case 880C (036) - CYLINDER BLOCK, 504BD DIESEL ENGINE (01) - ENGINE

A152986

CRANKCASE

BLOCK ASSEMBLY - short (Includes stripped block, pistons, rods, crankshaft and bearings, camshaft and gears), Includes: Ref. 1 - 21

1шт.

1

A46002

CRANKCASE

BLOCK ASSEMBLY - stripped (Casting A66526), Includes: Ref. 2 - 21

1шт.

2

221-1849

PLUG

- socket head, 1/8 inch PT

6шт.

3

221-1843

PLUG

- socket head, 3/8 inch PT

4шт.

4

221-845

PLUG,Hex Soc, 3/4"-14

- socket head, 3/4 inch PT

1шт.

5

A58568

PLUG,Cup, 1 3/8", Stainless

- cup type, 1-3/8 inch (35 mm) diameter

3шт.

6

A58569

PLUG,Cup, 2", Stainless

- cup type, 2 inch (51 mm) diameter

1шт.

7

A24361

PLUG

- cup type, 2-3/8 inch (60 mm) diameter

1шт.

8

REF

INSTRUCTION

BUSHING - camshaft rear (See Figure 34)

1шт.

8

REF

INSTRUCTION

BUSHING - camshaft center (See Figure 34)

3шт.

8

REF

INSTRUCTION

BUSHING - camshaft front (See Figure 34)

1шт.

9

A154398

BEARING CAP

CAP - wide main bearing (Order A154390)

2шт.

10

A154397

BEARING CAP

CAP - narrow main bearing

3шт.

11

A154392

CAP

- thrust bearing (center)

1шт.

12

A154389

CAP

- front main bearing

1шт.

13

A66948

STEP BOLT

BOLT - bearing cap

12шт.

14

A66949

STEP BOLT

BOLT - front bearing cap and oil pump (5/8 NC x 7-1/4 inch)

2шт.

15

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - cap bolt

14шт.

16

A58859

SHIM,.005" Thk

Oil pump (0.127 mm) .005" Thk

1шт.

17

A34540

TUBE

- oil filler and dipstick

1шт.

20

A23656

COCK, DRAIN

VALVE - water drain

1шт.

21

41-1052

PLUG,Cup, 3 1/4"

- cup type, 3-1/4 inch (83 mm) diameter

1шт.

22

41-1022

PLUG,Cup, 1 3/8"

- cup type, 1-3/8 inch (35 mm) diameter

1шт.

23

A154061

DIPSTICK

- oil level

1шт.

24

A153835

TUBE

- extension, oil filler and dipstick

1шт.

25

A27343

BUSHING

O-RING - extension tube

1шт.

26

L47766

CLAMP

- extension tube

1шт.

A155436

RESISTOR

HEATER ASSEMBLY - engine block, Includes: Ref. 39 - 41

1шт.

39

NSS

NOT SOLD SEPARAT

ELEMENT - heater, block

1шт.

40

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- element seal, block heater

1шт.

41

A44813

CABLE EXTENSION

CORD - 12 inch (305 mm) long, block heater

1шт.
