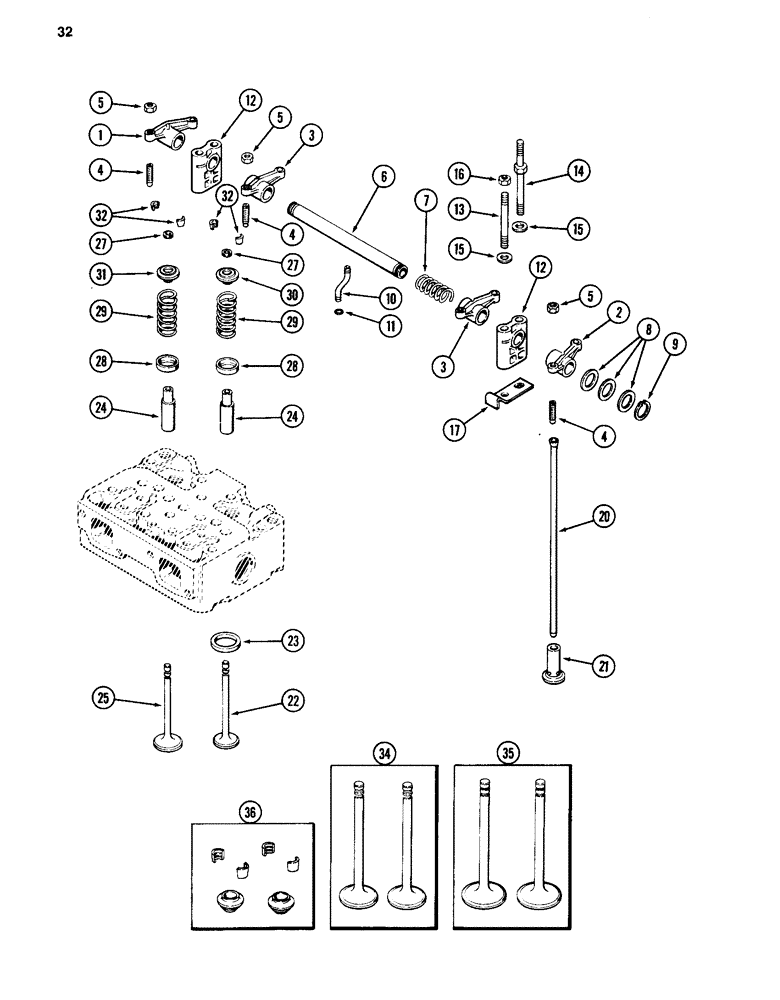

Запчасти Case 880C (032) - VALVE MECHANISM, 504BD DIESEL ENGINE (01) - ENGINE

1

A148137

ROCKER ARM

ARM ASSEMBLY - rocker, exhaust (First, third and fifth cylinder), Includes: Ref. 4 and 5

3шт.

2

A148138

ARM

ASSEMBLY - rocker, exhaust (Second, fourth and sixth cylinder), Includes: Ref. 4 and 5

3шт.

3

A148136

ARM

ASSEMBLY - rocker, intake valve, Includes: Ref. 4 and 5

6шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adjusting

1шт.

5

25-106

NUT,3/8"-16, G5

- hex jam, 3/8 inch NF

1шт.

6

A150545

SHAFT

- rocker arm

3шт.

7

A27877

SPRING

- rocker shaft

3шт.

8

A27878

WASHER

- rocker shaft

1шт.

9

B18206

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

6шт.

10

A58657

TUBE

- oil, rocker shaft

3шт.

11

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- oil tube

3шт.

12

A61128

BRACKET

- rocker shaft

6шт.

13

A58659

STUD

- bracket, 7/16 NC x 4-5/16 inch

6шт.

14

A67121

STUD

- bracket and cover

6шт.

15

195-29

WASHER,7/16"

- flat, 1/2 x 15/16 x 1/16 inch

12шт.

16

25-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

6шт.

17

A157197

STRAP

- gasket locator

6шт.

20

A157328

ROD

- push (Replaces A141841)

12шт.

21

A20865

TAPPET

LIFTER - push rod (Standard)

12шт.

21

A21857

TAPPET

LIFTER - push rod, 0.010 inch (0.254 mm) (Oversize)

12шт.

22

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order Ref. 34)

6шт.

23

A58619

INSERT

- exhaust valve seat

6шт.

24

A41783

GUIDE

- valve stem

12шт.

25

NSS

NOT SOLD SEPARAT

VALVE - intake (Order Ref. 35)

6шт.

27

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

12шт.

28

A66328

SEAT

- valve spring

12шт.

29

A66444

SPRING

- valve

12шт.

30

A66336

ROTATOR

CAP - exhaust valve

6шт.

31

NSS

NOT SOLD SEPARAT

RETAINER - intake valve (Order Ref. 36)

6шт.

32

A27872

LOCK

- retainer

24шт.

34

A41753

VALVE

S - exhaust (Set of 2)

3шт.

35

A41754

VALVE

S - intake (Set of 2)

3шт.

36

A44645

KIT

RETAINER KIT - intake valve (Set of 2 retainers with locks)

3шт.
