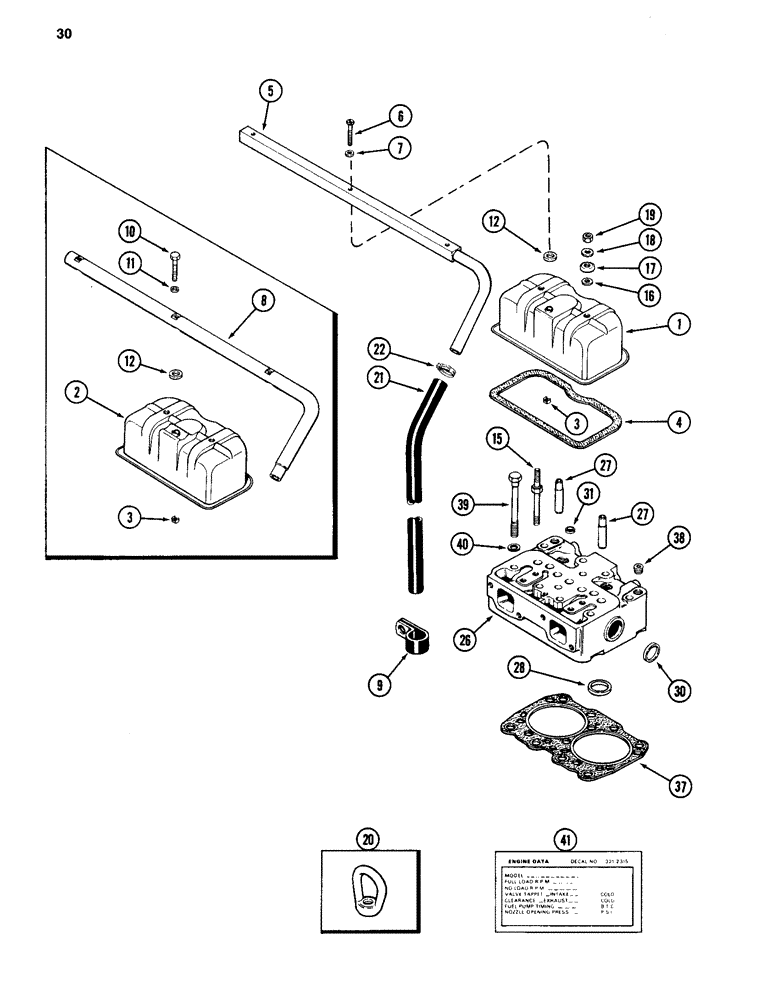

Запчасти Case 880C (030) - CYLINDER HEAD AND COVER, 504BD DIESEL ENGINE (01) - ENGINE

1

A166170

COVER

COVER ASSEMBLY - cylinder head (Includes Ref. 3)

3шт.

2

A58929

COVER

COVER ASSEMBLY - cylinder head (Includes Ref. 3) (If equipped)

3шт.

3

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - Tinnerman, 1/4 inch NC

1шт.

4

A156960

CYLINDER HEAD GASKET,3.05mm Thk

GASKET - cover

3шт.

5

A166120

TUBE

TUBE - breather

1шт.

6

182-587

SCREW,Cross Pan Hd, 1/4"-20 x 2 1/2"

BOLT - pan head, 1/4 NC x 2-1/2 inch

3шт.

7

A166102

WASHER,6.45mm ID x 12.7mm OD x 0.81mm Thk

WASHER - breather tube bolt

3шт.

8

A66640

TUBE

TUBE - oil breather (If equipped)

1шт.

9

D34033

CLAMP

CLAMP - tube

1шт.

10

113-12

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

BOLT - hex, 1/4 NC x 2-1/2 inch (If equipped)

3шт.

11

A34133

GASKET

GASKET - bolt to tube (If equipped)

3шт.

12

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET - tube to cover, 11/16 x 1-1/4 x 1/4 inch (17 x 32 x 6 mm)

3шт.

15

A67121

STUD

STUD - special, 7/16 NC x 6-1/16 inch

6шт.

16

A142098

GROMMET

GROMMET - cover stud (Replaces A23684)

6шт.

17

A156097

WASHER,11.94mm ID x 31.22mm OD x 1.32mm Thk

WASHER - cover stud (Replaces A23683)

6шт.

18

195-29

WASHER,7/16"

WASHER - 15/32 x 59/64 x 1/16 inch (12 x 23 x 2 mm)

6шт.

19

129-104

NUT,7/16"-14, G5

NUT, 7/16"-14, G5

6шт.

20

A60567

EYE

EYE - engine lift

2шт.

21

A156416

HOSE,25.4 mm ID x 1016.00 mm, SAE J200F

Breather Tube

1шт.

22

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - 1-3/16 to 1-3/4 inch (30 to 45 mm)

1шт.

26

A67352

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, Includes: Ref. 27 - 31

3шт.

26

AR148939

REMAN-CYLINDER HEAD

Cylinder Head

3шт.

26

AC148939

CORE-CYLINDER HEAD

Return Number

3шт.

27

A41783

GUIDE

GUIDE - intake and exhaust valves

4шт.

28

A58619

INSERT

INSERT - exhaust valves

2шт.

30

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG - cup type, 1-5/8 inch (41 mm)

2шт.

31

A58620

PLUG,Cup, 3/4", Stainless

PLUG - cup type, 3/4 inch (19 mm)

3шт.

37

REF

INSTRUCTION

GASKET - cylinder head (With fire rings) (See Figure 48)

3шт.

38

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - 3/8 inch PT

6шт.

39

A76638

BOLT

BOLT - hex, 5/8 NC x 6 inch

30шт.

40

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - flat, 5/8 x 1 x 1/8 inch (16 x 25 x 3 mm)

30шт.

41

321-4348

DECAL

DECAL - engine specification

1шт.
