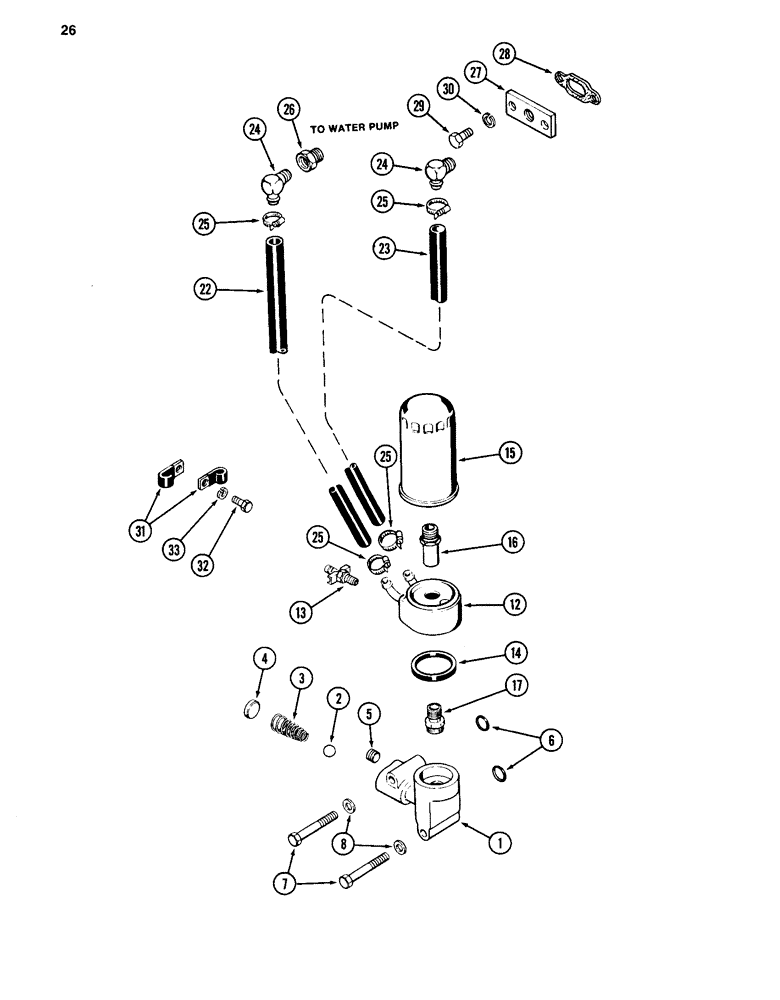

Запчасти Case 880C (026) - OIL FILTER AND COOLER, 504BD DIESEL ENGINE (01) - ENGINE

A154788

BASE

ASSEMBLY - oil filter and cooler, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

BASE (Use with A58831 adapter) (Reference No. A153979)

1шт.

Reference numbers in description are for Cares use only and cannot be ordered separately.

1шт.

2

211-17

BALL,3/4" Dia

- relief valve 3/4 inch (19 mm) diameter

1шт.

3

A58667

HEAD

SPRING - relief valve

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- relief valve, cup type, 1-1/4 inch (35 mm)

1шт.

5

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket head, 1/2 inch PT

1шт.

6

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- base to block, 15/16 x 1-5/16 x 1/8 inch (24 x 33 x 3 mm)

2шт.

7

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

2шт.

8

195-33

WASHER,1/2"

- 1/2 x 1 x 1/8 inch (13 x 25 x 3 mm)

2шт.

12

A66295

COOLER

- oil

1шт.

13

217-107

VALVE

- cooler drain

1шт.

14

A153806

SEALING RING

- oil cooler to base, 2-21/32 (67 mm) ID x 2-25/32 (71 mm) OD x 13/64 inch (5 mm) 2-25/32 (71 mm) OD x 13/64 inch (5 mm)

1шт.

15

A75294

ENGINE OIL FILTER

FILTER - oil (Use with A66992 adapter)

1шт.

16

A66992

ADAPTER

- upper (1-12 NF external threads and 3/4-16 NF internal threads)

1шт.

17

A58831

ADAPTER

- lower (1-8 NC external threads and 3/4-16 NF external threads)

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - water outlet, 15 inch long (381 mm) (Order A42610) \s8(Reference No. L13459)\s(10

1шт.

Reference numbers in description are for Cares use only and cannot be ordered separately.

1шт.

23

NSS

NOT SOLD SEPARAT

HOSE - water inlet, 29 inch long (737 mm) (Order A42610) \s8(Reference No. A136406)\s(10

1шт.

Reference numbers in description are for Cares use only and cannot be ordered separately.

1шт.

A42610

LARGE HOSE

HOSE - 5/8 inch ID (16 mm) x 1 inch OD (25 mm) x 50 foot (1270 mm) (cut to length required)

1шт.

24

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose, 90 degree with barb end

2шт.

25

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/16 inch (14 to 27 mm)

4шт.

26

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - reducer, 3/4 to 1/2 inch

1шт.

27

A66993

FLANGE

- outlet hose (to block)

1шт.

28

A58670

GASKET

- flange

1шт.

29

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

30

92-8

LOCK WASHER,1/2"

2шт.

31

49885

CLAMP

CLIP - hose

2шт.

32

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

33

92-6

LOCK WASHER,3/8"

1шт.
