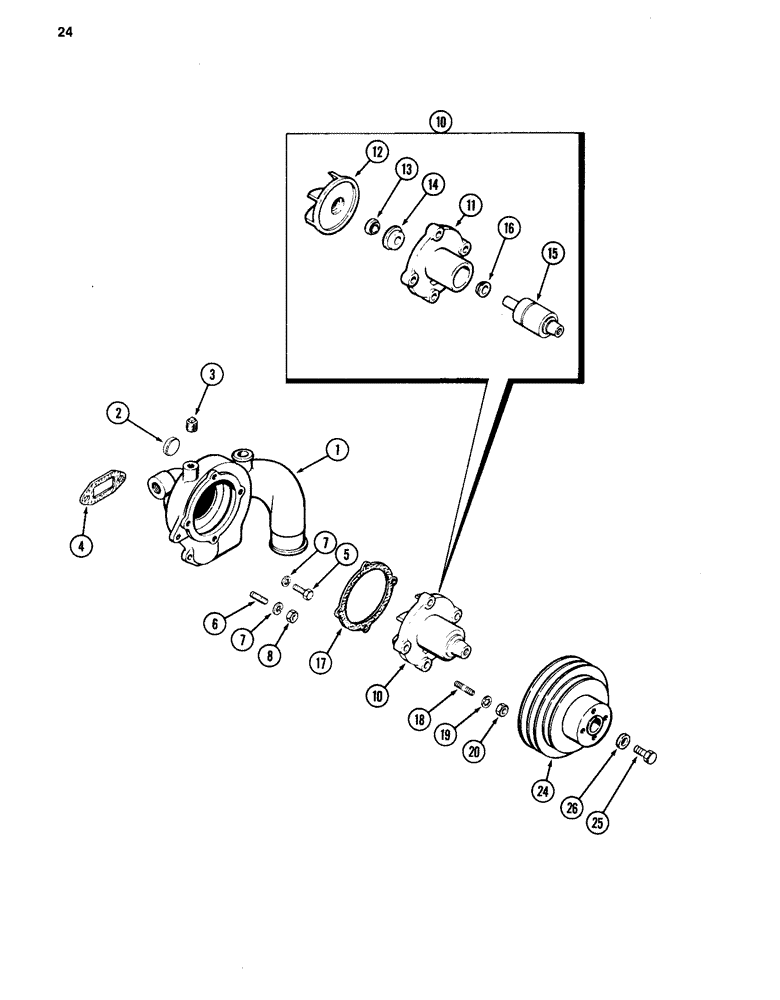

Запчасти Case 880C (024) - WATER PUMP, 504BD DIESEL ENGINE (01) - ENGINE

1

A138498

HOUSING

BODY ASSEMBLY - water pump, Includes: Ref. 2

1шт.

2

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - cup type, 1-3/8 inch (35 mm) diameter

1шт.

3

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square head, 1/2 inch PT

1шт.

4

A58649

GASKET

GASKET -, Serial Range: body-block

1шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

6

G102128

BOLT

STUD - body to block (3/8 NC x 1-1/2 inch)

2шт.

7

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

8

25-106

NUT,3/8"-16, G5

NUT - hex, 3/8 inch NC

2шт.

10

A48369

PUMP

PUMP KIT - water, remanufactured (includes gasket Ref. 17)

1шт.

10

A157145

PUMP, WATER

PUMP ASSEMBLY - water, new (Replaces A155180), Includes: Ref. 11 - 15

1шт.

10

1342818C1R

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

10

A48335

CORE-WATER PUMP

Return Part Number - use this part number to return pump for credit

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

12

A152126

IMPELLER

IMPELLER

1шт.

13

A34000

SEAL

SEAT - impeller

1шт.

14

A142499

SEAL

SEAL - pump shaft

1шт.

15

A155272

SHAFT

SHAFT ASSEMBLY - pump

1шт.

17

A58646

GASKET

GASKET -, Serial Range: pump-body

1шт.

18

A166044

STUD

STUD - pump mounting, 3/8 NC x 1-5/16 inch (Replaces A62234)

4шт.

19

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

20

25-106

NUT,3/8"-16, G5

NUT - hex, 3/8 inch NC (Replaces 25-146)

4шт.

24

A58650

PULLEY

PULLEY - water pump

1шт.

25

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

BOLT - hex, 1/2 NF x 1-1/4 inch

1шт.

26

A155047

RING,13.08mm ID x 26.92mm OD x 8.69mm Thk

WASHER - flat, 33/64 x 1 x 11/32 inch (13 x 25 x 9 mm)

1шт.
