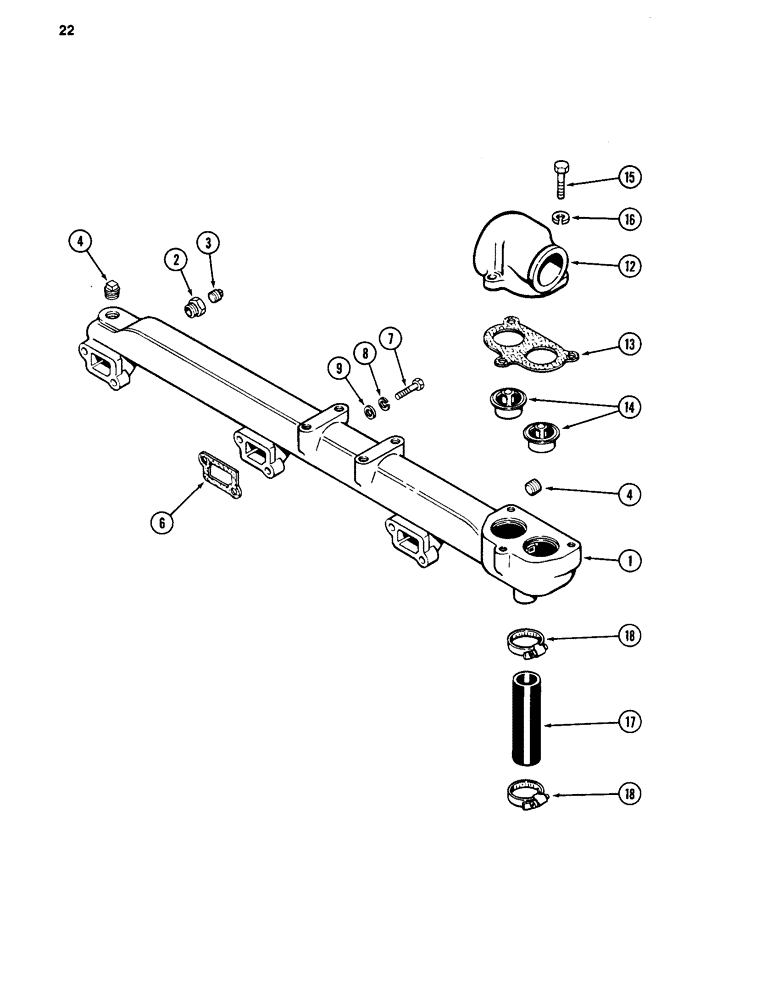

Запчасти Case 880C (022) - WATER MANIFOLD AND THERMOSTAT, 504BD DIESEL ENGINE (01) - ENGINE

1

A152742

MANIFOLD

ASSEMBLY - water

1шт.

2

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer, 1/8 PT to 3/8 inch PT

1шт.

3

221-843

PLUG,Hex Soc, 3/8"-18

- socket head, 3/8 inch PT

1шт.

4

221-844

PLUG,Hex Soc, 1/2"-14

- square head, 1/2 inch PT

2шт.

6

A58637

MANIFOLD GASKET

-, Serial Range: manifold-head

3шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

6шт.

8

92-6

LOCK WASHER,3/8"

6шт.

9

195-25

WASHER,3/8"

- flat, 3/8 x 13/16 x 1/16 inch (10 x 20 x 2 mm)

6шт.

12

A60689

HOUSING

- thermostat

1шт.

13

A58639

GASKET

-, Serial Range: housing-manifold

1шт.

14

A57641

THERMOSTAT

- 180 degree F (82 degree C)

2шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

16

92-6

LOCK WASHER,3/8"

3шт.

17

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- water pump, 1-1/4 ID x 5-5/16 inch (32 mm ID x 135 mm)

1шт.

18

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose 1-3/16 to 1-3/4 inch (30 to 44 mm)

2шт.
