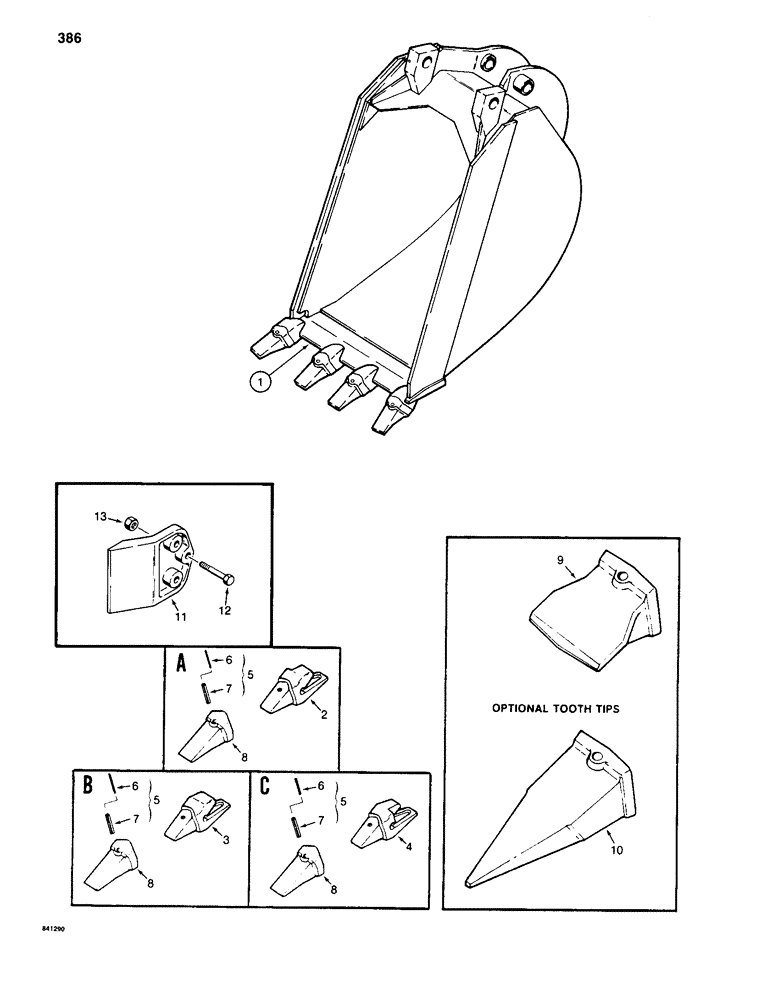

Запчасти Case 880C (386) - BACKHOE BUCKETS, USED ON PIN 6205559 AND AFTER (19) - BUCKETS

S617728

BUCKET ASSEMBLY - 24" (610 mm), machinery item, see Figure 3 for ordering, Includes: Ref. 1 - 8

1шт.

S617729

BUCKET ASSEMBLY - 30" (762 mm), machinery item, see Figure 3 for ordering, Includes: Ref. 1 - 8

1шт.

S617842

BUCKET ASSEMBLY - 36" (914 mm), machinery item, see Figure 3 for ordering, Includes: Ref. 1 - 8

1шт.

S617809

BUCKET ASSEMBLY - 42" (1066 mm), machinery item, see Figure 3 for ordering, Includes: Ref. 1 - 8

1шт.

1

S119061

EDGE

CUTTING EDGE - for 24" (610 mm) bucket

1шт.

1

S119062

EDGE

CUTTING EDGE - for 30" (762 mm) bucket

1шт.

1

S119262

EDGE

CUTTING EDGE - for 36" (914 mm) bucket

1шт.

1

S119260

EDGE

CUTTING EDGE - for 42" (1066 mm) bucket

1шт.

2

S615011

SHANK

- tooth, left-hand

1шт.

3

S615009

SHANK

- tooth, center

1шт.

4

S615010

SHANK

- tooth, right-hand

1шт.

5

S239750

ROLL PIN

ASSEMBLY - tooth point, Includes: Ref. 6 and 7

1шт.

6

REF

INSTRUCTION

PLUG - rubber, 3" (76 mm) long, cut from S119223, see below

1шт.

7

138-310

LOCK PIN,1/2" x 3", Slotted

PIN, 1/2" x 3", Slotted

1шт.

8

S615008

POINT

- tooth, standard

1шт.

9

S615024

POINT

- tooth, spade, optional

1шт.

10

S615025

POINT

- tooth, rock, optional

1шт.

11

S33993

CUTTER

- side, if used

2шт.

12

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

6шт.

13

129-108

NUT,3/4"-10, G5

6шт.

S119223

RUBBER

PLUG - rubber, 48" (1219 mm) long strip

1шт.
