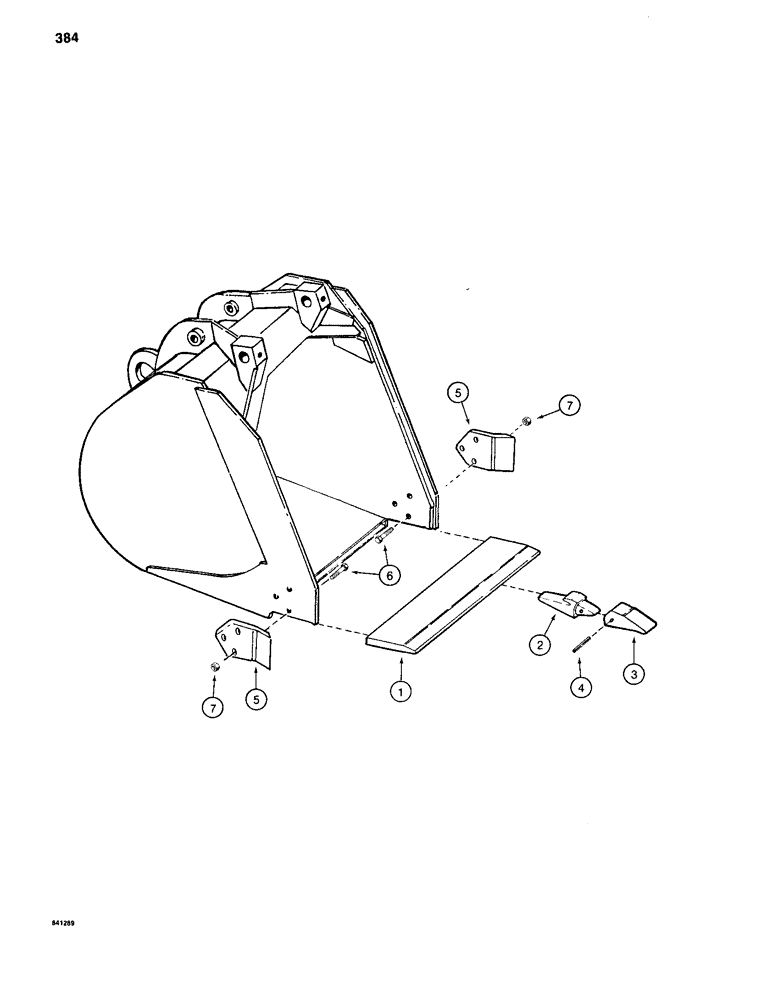

Запчасти Case 880C (384) - BACKHOE BUCKETS, USED BEFORE PIN 6205559 (19) - BUCKETS

S953533

BUCKET ASSEMBLY - 26" (660 mm), machinery item, see Figure 3 for ordering, Includes: Ref. 1 - 4

1шт.

S953534

BUCKET ASSEMBLY - 30" (762 mm), machinery item, see Figure 3 for ordering, Includes: Ref. 1 - 4

1шт.

S953535

BUCKET ASSEMBLY - 36" (914 mm), machinery item, see Figure 3 for ordering, Includes: Ref. 1 - 4

1шт.

S953531

BUCKET ASSEMBLY - 42" (1066 mm), machinery item, see Figure 3 for ordering, Includes: Ref. 1 - 4

1шт.

1

S212358

CUTTING EDGE - for 26" (660 mm) bucket

1шт.

1

S212359

CUTTING EDGE - for 30" (762 mm) bucket

1шт.

1

S222363

EDGE

CUTTING EDGE - for 36" (914 mm) bucket

1шт.

1

S207677

EDGE

CUTTING EDGE - for 42" (1066 mm) bucket

1шт.

2

S59402

SHANK

- tooth, used on 26" - 36" buckets

1шт.

2

S37774

SHANK

- tooth, used on 42" bucket only

1шт.

3

S503093

POINT

- tooth

1шт.

4

138-316

LOCK PIN,1/2" x 2 1/2", Slotted

PIN, 1/2" x 2 1/2", Slotted

1шт.

5

S33993

CUTTER

- side, if used

2шт.

6

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

6шт.

7

129-108

NUT,3/4"-10, G5

6шт.
