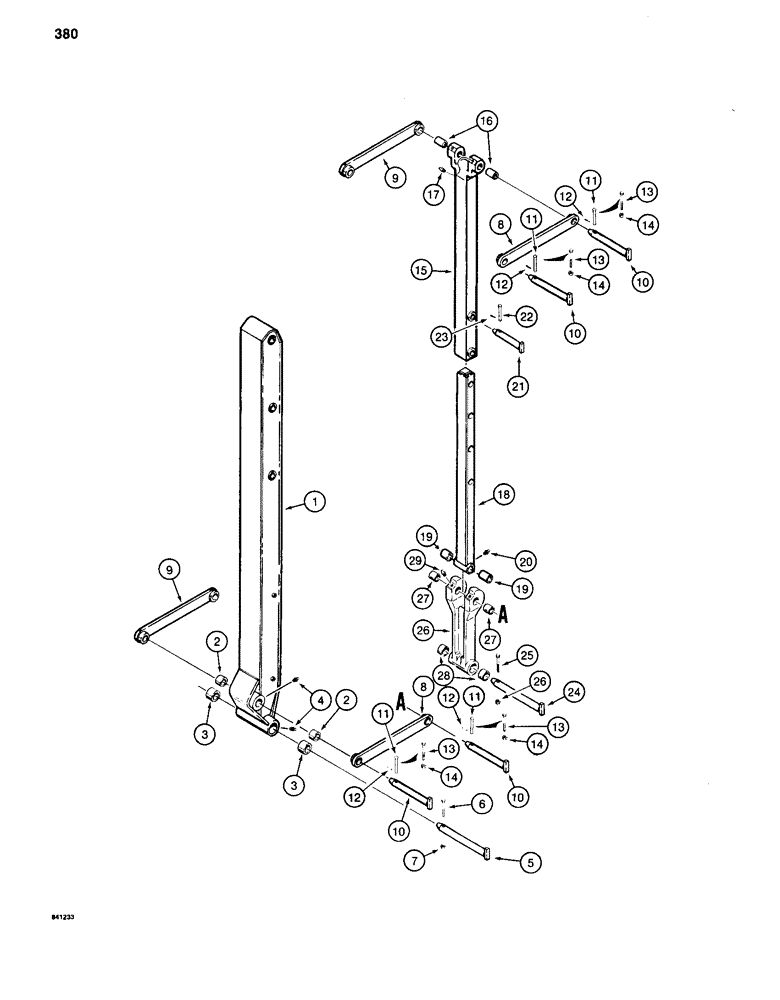

Запчасти Case 880C (380) - Y BOOM EXTENSIONS AND TOOL ATTACHMENT (09) - BOOMS

1

S605008

EXTENSION - arm to tool, Includes: Ref. 2 - 4

1шт.

2

S202071

BUSHING

- upper, link pivot

2шт.

3

S202137

BUSHING,50.73mm ID x 63.63mm OD x 63.5mm L

- lower, tool pivot

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

3шт.

5

S213911

PIN

-, Serial Range: extension-tool

1шт.

6

26-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 8

- hex head, 1/2" - 13 NC x 4-3/4", grade 8

1шт.

7

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

1шт.

8

S209893

LEVER

LINK - right-hand, upper and lower

2шт.

9

S209894

LEVER

LINK - left-hand, upper and lower

2шт.

10

S241330

PIN,37.8mm OD x 358.14mm L

- links, both ends

4шт.

11

S61973

AXLE PIN

CLEVIS PIN - 1/2" diameter x 3-3/4" grip length, if used

4шт.

12

132-48

COTTER PIN,1/8" x 1"

PIN, Split (Cotter), , Used with Ref. 11 clevis pin, if used 1/8" x 1"

4шт.

13

26-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 8

- hex, 1/2"-13 NC x 4-1/4", grade 8, if used

4шт.

14

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

15

S502858

EXTENSION - tool cylinder, upper, fits over lower extension, Includes: Ref. 16 and 17

1шт.

16

S202073

BUSHING

- upper extension yoke, tool cylinder pivot

2шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

18

S501865

EXTENSION - tool cylinder, lower, Includes: Ref. 19 and 20

1шт.

19

S202070

BUSHING

- lower, tool attachment pivot

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

21

S206139

PIN

- upper extension to lower extension

2шт.

22

S10785

PIN

CLEVIS PIN - 3/8" diameter x 3-1/4" grip length

2шт.

23

132-48

COTTER PIN,1/8" x 1"

PIN, Split (Cotter), 1/8" x 1"

2шт.

24

S223986

PIN

- tool, Serial Range: attachment-tool

1шт.

25

26-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

- hex head, 1/2" - 13 NC x 3-1/2", grade 8

1шт.

26

S617136

LINK ASSY.

ATTACHMENT - tool, Includes: Ref. 27 - 29

1шт.

27

S202073

BUSHING

- upper, lower extension pivot

2шт.

28

S202134

BUSHING

- lower, tool attaching pin

2шт.

29

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

3шт.
