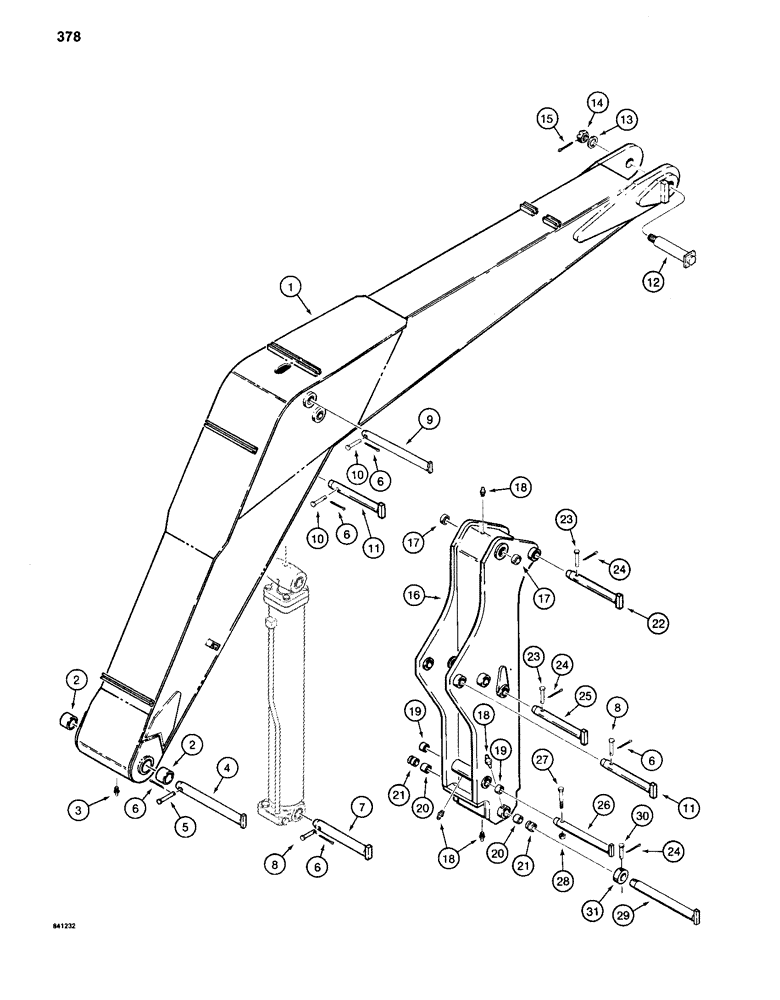

Запчасти Case 880C (378) - Y BOOM AND ARM (09) - BOOMS

1

S954164

BOOM - Y, weldment frame assembly, Includes: Ref. 2 and 3

1шт.

2

S210602

BUSHING,63.42mm ID x 76.31mm OD x 50.8mm L

- boom mounting

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

4

S201023

PIN

- Y, Serial Range: boom-turntable

1шт.

5

S61976

CLEVIS PIN

- 5/8" diameter x 4-1/2" grip length

1шт.

6

132-48

COTTER PIN,1/8" x 1"

PIN, Split (Cotter), 1/8" x 1"

5шт.

7

S242097

PIN

- boom, Serial Range: cylinder-turntable

1шт.

8

S61972

PIN

CLEVIS PIN - 1/2" diameter x 3-1/4" grip length

2шт.

9

S201024

PIN

- boom, Serial Range: cylinder-boom

1шт.

10

S61973

AXLE PIN

CLEVIS PIN - 1/2" diameter x 3-3/4" grip length

2шт.

11

S210261

PIN

- arm cylinder to Y boom and arm

2шт.

12

S220250

PIN ASSY.

PIN - Y, Serial Range: boom-arm

1шт.

13

95-40

WASHER,2 1/2" x 5" x .238"

- flat, 2-1/2" bolt size

1шт.

14

25-3032

SLOTTED NUT,2"-4.5, G5, Hvy

CASTLE NUT - hex, 2" - NC threads

1шт.

15

132-161

COTTER PIN,1/4" x 3 1/2"

PIN, Split (Cotter), 1/4" x 3 1/2"

1шт.

16

S614229

BOOM

ARM - dipper, Y boom, Includes: Ref. 17 - 21

1шт.

17

S210602

BUSHING,63.42mm ID x 76.31mm OD x 50.8mm L

- arm to Y boom pivot

2шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

4шт.

19

S202070

BUSHING

- arm, link pivot

2шт.

20

S202070

BUSHING

- arm extension pivot, inner

2шт.

21

S202071

BUSHING

- arm extension pivot, with grease groove, outer

2шт.

22

S210261

PIN

- tool, Serial Range: cylinder-arm

1шт.

23

S61972

PIN

CLEVIS PIN - 1/2" diameter x 3-1/4" grip length

2шт.

24

132-48

COTTER PIN,1/8" x 1"

PIN, Split (Cotter), 1/8" x 1"

3шт.

25

S210261

PIN

- arm extension to arm, upper hole

1шт.

26

S241330

PIN,37.8mm OD x 358.14mm L

-, Serial Range: link-arm

1шт.

27

26-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 8

- hex, 1/2"-13 NC x 4-1/4", grade 8

1шт.

28

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

1шт.

29

S201018

PIN

- arm extension to arm, lower hole

1шт.

30

S61971

CLEVIS PIN,15.88mm OD x 80.16mm L

- 1/2" diameter x 2-3/4" grip length

1шт.

31

S63255

COLLAR

- pin retaining

1шт.
