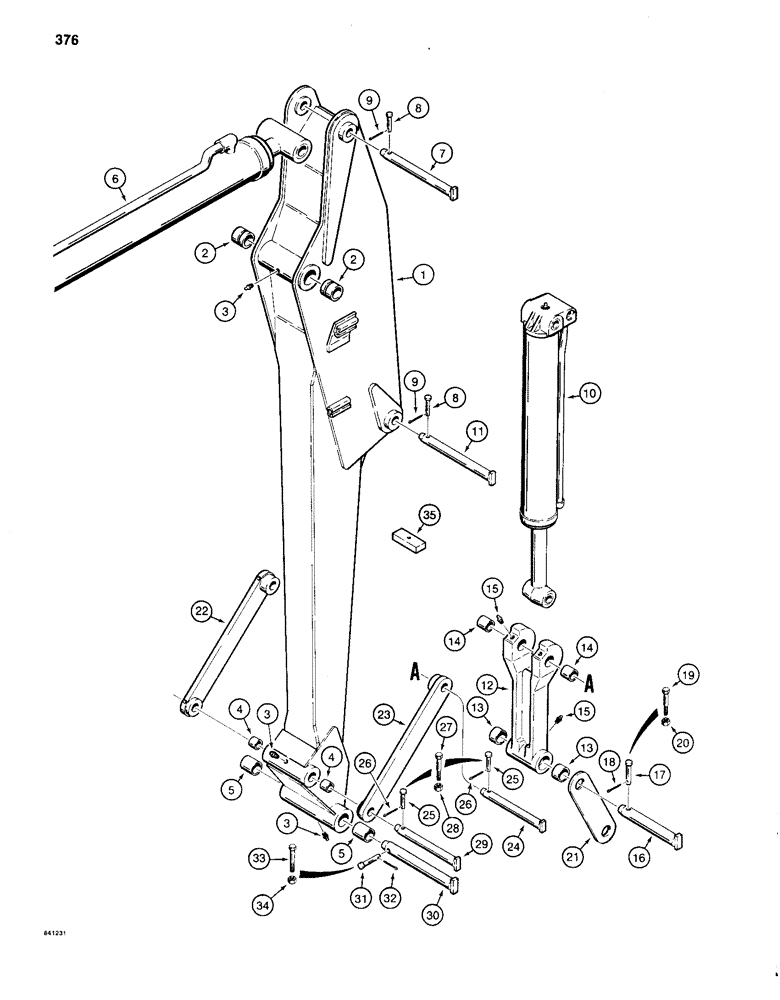

Запчасти Case 880C (376) - E BOOM ARM AND ATTACHMENT LINKS (09) - BOOMS

S956828

DIPPER

ARM ASSEMBLY - 9 ft (2.74 m) long, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

ARM - tool attaching

1шт.

2

S210602

BUSHING,63.42mm ID x 76.31mm OD x 50.8mm L

- arm pivot

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

3шт.

4

S202070

BUSHING

- link pivot

2шт.

5

S202137

BUSHING,50.73mm ID x 63.63mm OD x 63.5mm L

- tool pivot

2шт.

6

REF

INSTRUCTION

CYLINDER - arm, parts list Figure 300

1шт.

7

S241330

PIN,37.8mm OD x 358.14mm L

- arm cylinder rod, Serial Range: end-arm

1шт.

8

S61972

PIN

CLEVIS PIN - 1/2" diameter x 3-1/4" grip length

2шт.

9

132-48

COTTER PIN,1/8" x 1"

PIN, Split (Cotter), 1/8" x 1"

2шт.

10

REF

INSTRUCTION

CYLINDER - tool, parts list Figure 302

1шт.

11

S241330

PIN,37.8mm OD x 358.14mm L

- tool cylinder closed, Serial Range: end-arm

1шт.

S617136

LINK ASSY.

ATTACHMENT ASSEMBLY - links and tool cylinder to tool, Includes: Ref. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

ATTACHMENT - tool

1шт.

13

S202134

BUSHING

- tool pivot

2шт.

14

S202073

BUSHING

- tool cylinder pivot

2шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

3шт.

16

S223986

PIN

- attachment, Serial Range: assembly-tool

1шт.

17

S61972

PIN

CLEVIS PIN - 1/2" diameter x 3-1/4" grip length, if used

1шт.

18

132-69

COTTER PIN,5/32" x 1"

PIN, Split (Cotter), , If used 5/32" x 1"

1шт.

19

26-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

- hex head, 1/2" - 13 NC x 3-1/4", grade 8, if used

1шт.

20

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, if used

1шт.

21

S99204

LINKAGE

LINK - attachment assembly to arm, remove when attaching tool

1шт.

22

S209894

LEVER

LINK - tool, left-hand

1шт.

23

S209893

LEVER

LINK - tool, right-hand

1шт.

24

S241330

PIN,37.8mm OD x 358.14mm L

- tool cylinder rod, Serial Range: end-link

1шт.

25

S61973

AXLE PIN

CLEVIS PIN - 1/2" diameter x 3-3/4", grip length, if used

2шт.

26

132-48

COTTER PIN,1/8" x 1"

PIN, Split (Cotter), , If used 1/8" x 1"

2шт.

27

26-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 8

- hex, 1/2"-13 NC x 4-1/2", grade 8, if used

2шт.

28

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, if used

2шт.

29

S241330

PIN,37.8mm OD x 358.14mm L

-, Serial Range: link-arm

1шт.

30

S213911

PIN

-, Serial Range: tool-arm

1шт.

31

S61974

PIN

CLEVIS PIN - 1/2" diameter x 4-1/4" grip length, if used

1шт.

32

132-69

COTTER PIN,5/32" x 1"

PIN, Split (Cotter), , If used 5/32" x 1"

1шт.

33

26-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 8

- hex head, 1/2" x 13 NC x 4-3/4", grade 8, if used

1шт.

34

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, if used

1шт.

35

S74490

CLAMP

BLOCK - tapped for 1/2" bolts, accepts clamp bolts for auxiliary hydraulic lines, if used

1шт.
