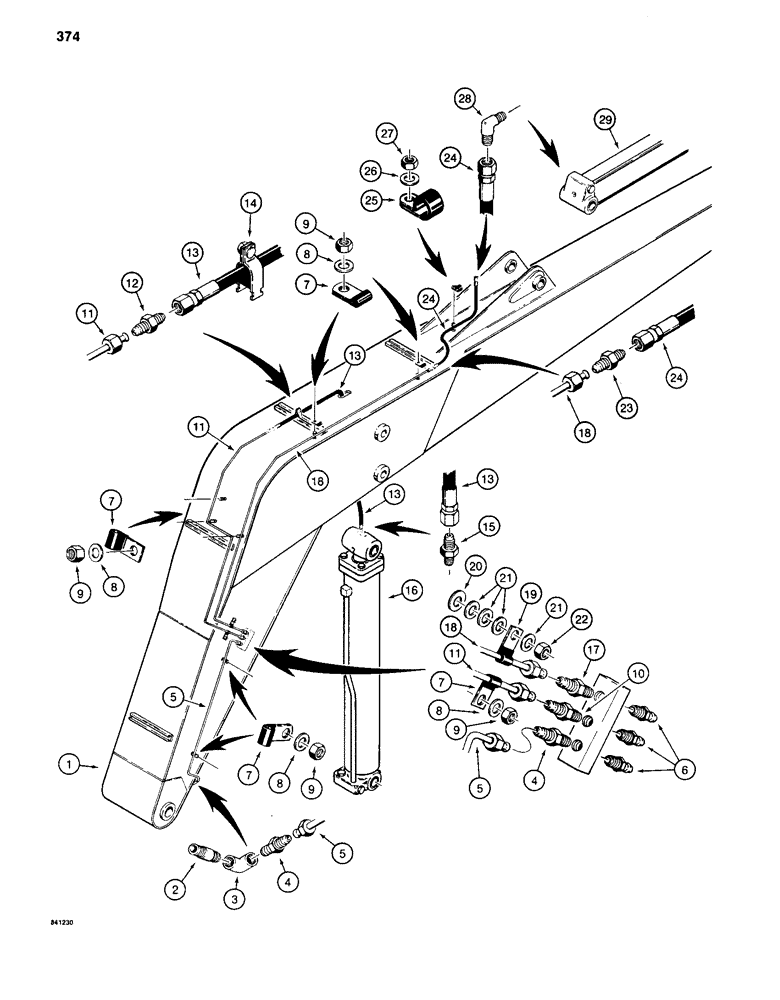

Запчасти Case 880C (374) - E BOOM LUBRICATION LINES (09) - BOOMS

1

REF

INSTRUCTION

BOOM - E, see Figure 372

1шт.

2

221-111

PIPE,Nipple, 1/8" NPT x 3"

NIPPLE - male, 1/8" NPT

1шт.

3

217-1050

90 ELBOW,1/8" - 27 NPTF Female

- female, 90 degree, 1/8" NPT

1шт.

4

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 1/8" NPT

2шт.

5

S242254

TUBE ASSY.,6.35 mm OD

TUBE - lower

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

3шт.

7

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- tube, 1/4" diameter

8шт.

8

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

8шт.

9

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

8шт.

10

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 1/8" NPT

1шт.

11

S242487

TUBE ASSY.,0.25" OD

TUBE - center, to boom cylinder hose

1шт.

12

218-732

UNION,7/16"-20, 37 Degree x 7/16"-20, 37 Degree

CONNECTOR - straight, 7/16" - 20 NF

1шт.

13

S77467

HOSE

- to boom cylinder, 38" (965 mm) long

1шт.

14

S97491

CLAMP

- hose, special

1шт.

15

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 1/8" NPT

1шт.

16

REF

INSTRUCTION

CYLINDER - boom, parts list Figure 300

1шт.

17

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 1/8" NPT

1шт.

18

S242256

TUBE ASSY.,6.35 mm OD x 1562, 1054 mm L

TUBE - upper, to arm cylinder hose

1шт.

19

49851

SHIELD

- tube, 1/4" diameter

1шт.

20

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

1шт.

21

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

22

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

23

218-732

UNION,7/16"-20, 37 Degree x 7/16"-20, 37 Degree

CONNECTOR - straight, 7/16" - 20 NF

1шт.

24

S77467

HOSE

- to arm cylinder, 38" (965 mm) long

1шт.

25

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- hose, 3/4" diameter

1шт.

26

195-525

WASHER,3/8", SAE

- flat, 3/8" plated

1шт.

27

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

28

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, 1/8" NPT

1шт.

29

REF

INSTRUCTION

CYLINDER - arm, parts list Figure 300

1шт.
