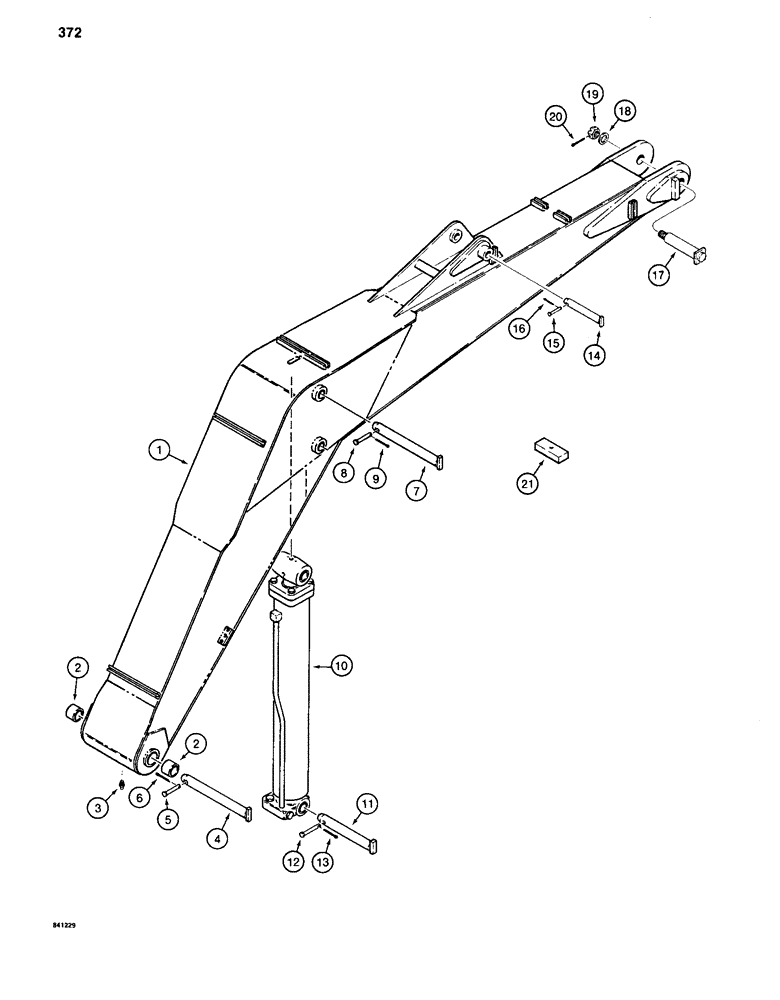

Запчасти Case 880C (372) - E BOOM AND PINS (09) - BOOMS

1

S954058

BOOM

- E, weldment frame assembly, Includes: Ref. 2 and 3

1шт.

2

S210602

BUSHING,63.42mm ID x 76.31mm OD x 50.8mm L

- boom

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, remove when attaching lubrication lines

1шт.

4

S201023

PIN

-, Serial Range: boom-turntable

1шт.

5

S61976

CLEVIS PIN

- 5/8" diameter x 4-5/8" grip length

1шт.

6

132-48

COTTER PIN,1/8" x 1"

PIN, Split (Cotter), 1/8" x 1"

1шт.

7

S201024

PIN

- boom cylinder rod, Serial Range: end-boom

1шт.

8

S61972

PIN

CLEVIS PIN - 1/2" diameter x 3-1/4" grip length

1шт.

9

132-48

COTTER PIN,1/8" x 1"

PIN, Split (Cotter), 1/8" x 1"

1шт.

10

REF

INSTRUCTION

CYLINDER - boom, parts list Figure 300

1шт.

11

S242097

PIN

- boom, Serial Range: cylinder-turntable

1шт.

12

S61972

PIN

CLEVIS PIN - 1/2" diameter x 3-1/4" grip length

1шт.

13

132-48

COTTER PIN,1/8" x 1"

PIN, Split (Cotter), 1/8" x 1"

1шт.

14

S241330

PIN,37.8mm OD x 358.14mm L

- arm cylinder closed, Serial Range: end-boom

1шт.

15

S61972

PIN

CLEVIS PIN - 1/2" diameter x 3-1/4" grip length

1шт.

16

132-48

COTTER PIN,1/8" x 1"

PIN, Split (Cotter), 1/8" x 1"

1шт.

17

S220250

PIN ASSY.

PIN -, Serial Range: boom-arm

1шт.

18

95-40

WASHER,2 1/2" x 5" x .238"

- flat, 2-1/2"

1шт.

19

25-3032

SLOTTED NUT,2"-4.5, G5, Hvy

CASTLE NUT - hex, 2" - NC threads

1шт.

20

132-161

COTTER PIN,1/4" x 3 1/2"

PIN, Split (Cotter), 1/4" x 3 1/2"

1шт.

21

S74490

CLAMP

BLOCK - tapped for 1/2" bolts, accepts clamp bolts for auxiliary hydraulic lines, if used

1шт.
