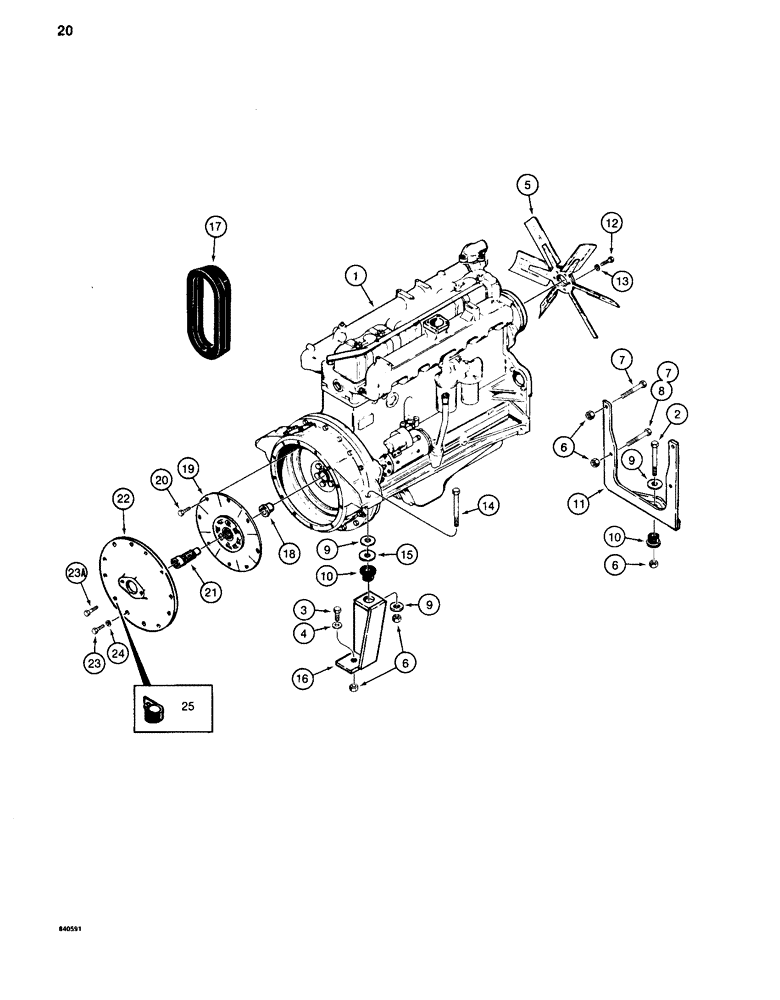

Запчасти Case 880C (020) - ENGINE AND ADAPTING PARTS (01) - ENGINE

1

REF

INSTRUCTION

ENGINE - Case 504BD Diesel, see Figures 22 - 50 and 59 - 67 for component parts

1шт.

2

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

1шт.

3

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- hex head, 3/4" - 10 NC x 2-1/2"

2шт.

4

195-109

WASHER,3/4"

- flat, 3/4"

2шт.

5

A61520

FAN

PULLER FAN - engine

1шт.

6

131-450

NUT,3/4"-10

NUT - hex, self-locking, 3/4" - 10 NC

9шт.

7

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2-4шт.

8

113-717

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

If used Hex, 3/4"-10 x 3 1/2", G5

2шт.

9

195-2270

WASHER,13/16" x 3" x .238", HDN

- flat, 3/4"

3-5шт.

10

S93392

MOUNTING PARTS

INSULATOR - rubber

3шт.

11

S229621

BRACKET

- engine mounting, front, used before PIN 6205456

1шт.

11

S514963

BRACKET

- engine mounting, front, used on PIN 6205456 and after

1шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

14

113-725

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- hex head, 3/4" - 10 NC x 5-1/2", if used

2шт.

14

113-723

BOLT,Hex, 3/4" - 10 x 5-1/4", Gr 5

If used Hex, 3/4"-10 x 5 1/4", G5

2шт.

15

195-2269

WASHER,25/32" x 3 1/2" x .238"

- if used

2шт.

16

S514506

BRACKET - engine mounting, right-hand rear

1шт.

16a

S514507

BRACKET - engine mounting, left-hand rear, not shown

1шт.

17

L71057

SET OF BELTS,0.69" W x 62.00" L

Fan and alternator, Matched set of two belts 0.69" W x 62.00" L

1шт.

18

S87483

ADAPTER

- pump coupling

1шт.

19

S33201

DAMPER

PLATE - drive

1шт.

20

121-204

BOLT,Lock Place, Hex, 3/8" - 16 x 5/8", Gr 8

- special, self-locking, 3/8" - 16 NC x 5/8"

8шт.

21

S63201

COUPLING

- pump drive shaft

1шт.

22

S52615

MOUNTING PARTS

MOUNTING PLATE - hydraulic pump

1шт.

23

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10шт.

23a

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

25

S86530

CLAMP

- for breather hose

1шт.
