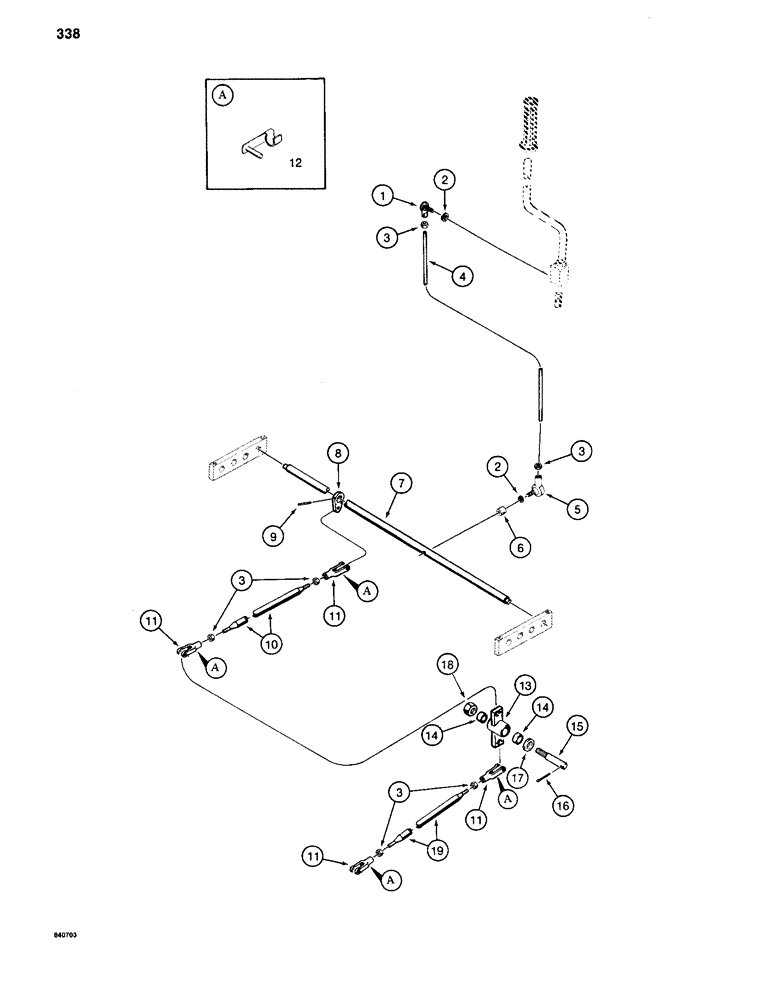

Запчасти Case 880C (338) - CONTROLS - PIN 6205236 AND AFTER, LEVELER LINKAGE (07) - HYDRAULIC SYSTEM

1

S236680

BALL JOINT

- upper

1шт.

2

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3

86585245

SPECIAL NUT,JAM, 5/8" - 18

JAM NUT - 3/8" - 24 NF

6шт.

4

S99329

STUD

ROD - connecting

1шт.

5

S116900

BALL JOINT

- lower

1шт.

6

D55769

SPACER

- ball joint

1шт.

7

S514859

SHAFT

- pivot

1шт.

8

S238822

LEVER

- connecting rod

1шт.

9

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

1шт.

10

S233226

ROD - connecting

1шт.

11

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - connecting rods

4шт.

12

A147652

PIN

CLEVIS PIN - self-locking

4шт.

13

S229513

ARM ASSY.

BELLCRANK - connecting rods

1шт.

14

A30586

NEEDLE BEARING

- bellcrank

2шт.

15

S233271

PIN - bellcrank pivot

1шт.

16

132-69

COTTER PIN,5/32" x 1"

PIN, Split (Cotter), 5/32" x 1"

1шт.

17

195-107

WASHER,9/16"

- flat, 9/16"

1шт.

18

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

1шт.

19

S91953

ROD

- connecting

1шт.
