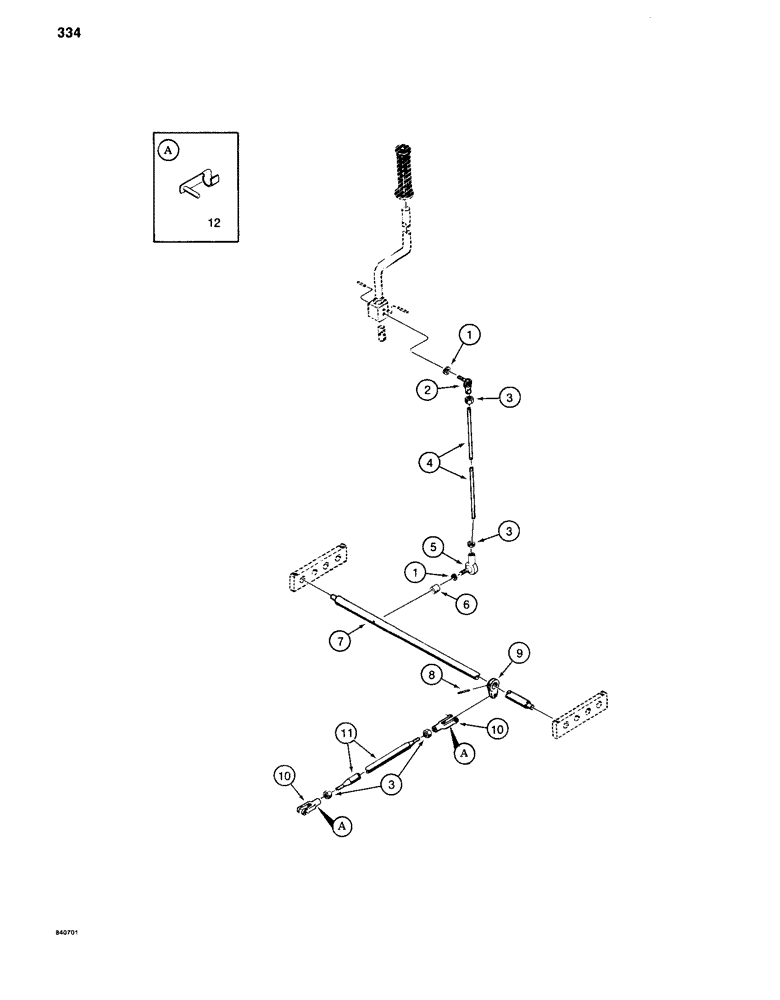

Запчасти Case 880C (334) - CONTROLS - PIN 6205236 AND AFTER, WRIST-O-TWIST LINKAGE (07) - HYDRAULIC SYSTEM

1

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

S236680

BALL JOINT

- upper

1шт.

3

86585245

SPECIAL NUT,JAM, 5/8" - 18

JAM NUT - 3/8" - 24 NF

4шт.

4

S99329

STUD

ROD - connecting

1шт.

5

S116900

BALL JOINT

- lower

1шт.

6

D55769

SPACER

- ball joint

1шт.

7

S514860

SHAFT

- pivot

1шт.

8

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

1шт.

9

S238822

LEVER

- connecting rod

1шт.

10

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - connecting rod

2шт.

11

S229510

ROD - connecting

1шт.

12

A147652

PIN

CLEVIS PIN - self-locking

2шт.
