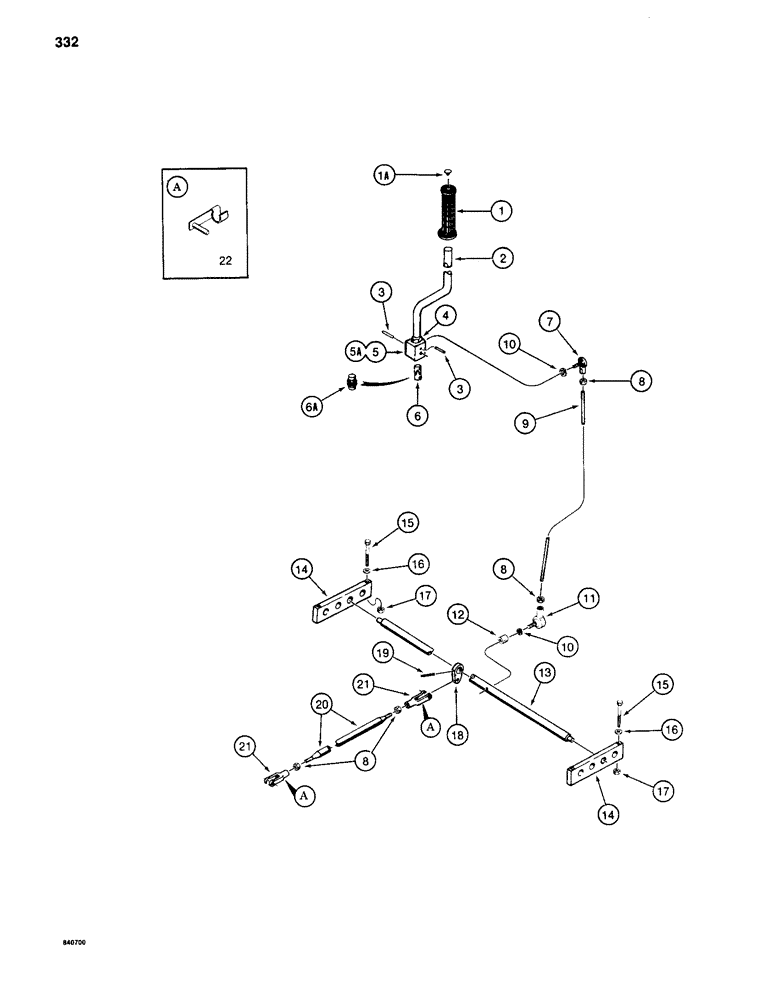

Запчасти Case 880C (332) - CONTROLS - PIN 6205236 AND AFTER, BOOM CONTROL LEVER AND LINKAGE (07) - HYDRAULIC SYSTEM

1

S109220

GRIP

- control lever, used with fast hoist switch with plastic button

1шт.

1

S119987

GRIP

- control lever, used with fast hoist switch with rubber covered button

1шт.

1a

353-406

PLUG,Dome, .625" hole, Nylon

- 5/8", used with S119987 grip when no fast hoist switch is used

1шт.

2

S514719

HANDLE

CONTROL LEVER - boom

1шт.

3

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

2шт.

4

425-1410

JAM NUT,Jam, 5/8"-11, G5

JAM NUT - 5/8" - 11 NC

1шт.

5

S514718

BLOCK

- pivot, used with Ref. 6 only

1шт.

5a

S516578

HANDLE

BLOCK - pivot, used with Ref. 6A only

1шт.

6

S238874

SWIVEL CONNECTION

UNIVERSAL JOINT - does not have rubber sleeve, used with Ref. 5 only

1шт.

REF 6 OR 6A UNIVERSAL JOINTS = BOTTOM HALF IS HOOKED TO THE LUG WELDED TO THE HAND CONTROL SUPPORTS SHOWN ON FIG. 368.

1шт.

6a

S242118

SWIVEL CONNECTION

UNIVERSAL JOINT - sealed, has rubber sleeve, used with Ref. 5A only

1шт.

7

S236680

BALL JOINT

- at block

1шт.

8

86585245

SPECIAL NUT,JAM, 5/8" - 18

JAM NUT - 3/8" - 24 NF

4шт.

9

S99329

STUD

ROD - connecting

1шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

S116900

BALL JOINT

-, Serial Range: rod-shaft

1шт.

12

D55769

SPACER

- ball joint

1шт.

13

S514861

SHAFT

- pivot

1шт.

14

S512159

SUPPORT

BAR - shaft support

2шт.

15

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

4шт.

16

195-525

WASHER,3/8", SAE

- flat, 3/8"

4шт.

17

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8 - 16NC

4шт.

18

S238822

LEVER

- connecting rod

1шт.

19

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

1шт.

20

S239388

ROD - connecting

1шт.

21

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - connecting rod

2шт.

22

A147652

PIN

CLEVIS PIN - self-locking

2шт.
