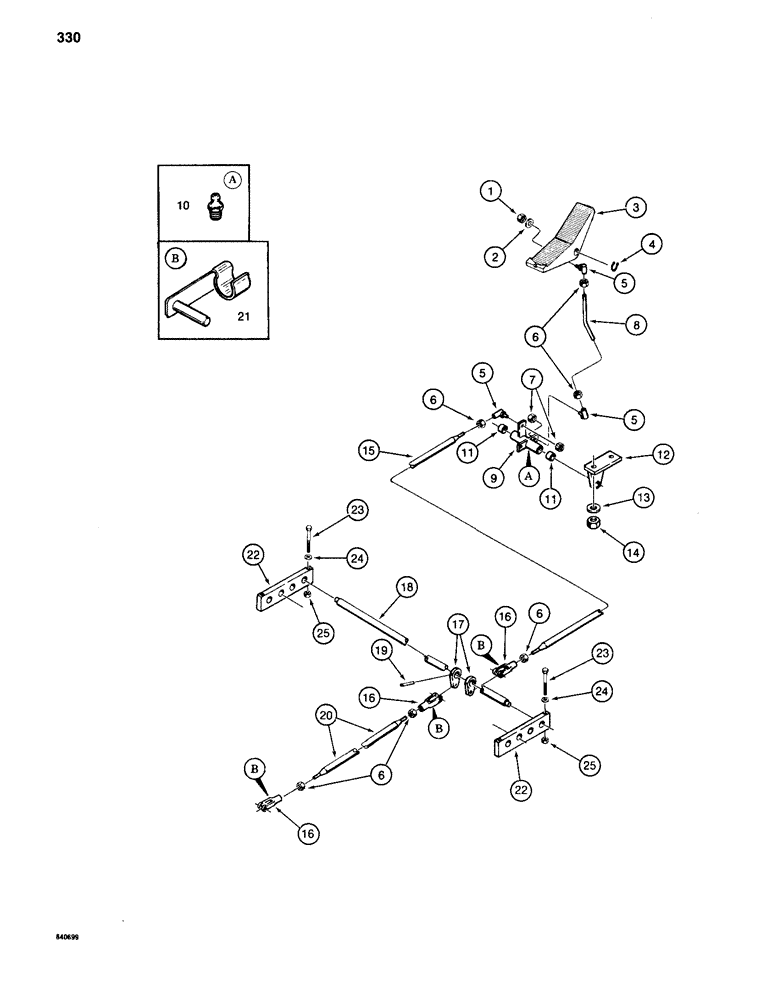

Запчасти Case 880C (330) - CONTROLS - PIN 6205236 AND AFTER, RIGHT TRACK PEDAL AND LINKAGE (07) - HYDRAULIC SYSTEM

1

231-2446

NUT,3/8"-24, GB

NUT - hex, self-locking, 3/8" - 24 NF

1шт.

2

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

3

S615523

PEDAL

- right track

1шт.

4

D95096

SNAP RING,M15.88 x 1.27mm Thk

- retaining

1шт.

5

D38296

JOINT

BALL JOINT - connecting rods

3шт.

6

86585245

SPECIAL NUT,JAM, 5/8" - 18

JAM NUT - 3/8" - 24 NF

6шт.

7

231-2446

NUT,3/8"-24, GB

NUT - hex, self-locking, 3/8" - 24 NF

2шт.

8

S239128

STUD

- pedal to bellcrank, used before PIN 6205410

1шт.

8

S48765

STUD

- pedal to bellcrank, used on PIN 6205410 and after

1шт.

9

S229403

ARM ASSY.

BELLCRANK - connecting rods, used before pin 6205410, Includes: Ref. 10

1шт.

9

S240332

ARM ASSY.

BELLCRANK - connecting rods, used on PIN 6205410 and after, Includes: Ref. 10

1шт.

10

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

11

A30586

NEEDLE BEARING

- bellcrank

2шт.

12

S237782

BRACKET - bellcrank support, used before PIN 6205410

1шт.

12

S240334

BRACKET

- bellcrank support, used on PIN 6205410 and after

1шт.

13

95-8

WASHER,1/2"

flat 1/2"

2шт.

14

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

15

S239386

ROD

- connecting

1шт.

16

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CELVIS - connecting rods

3шт.

17

S238822

LEVER

- connecting rods

2шт.

18

S511741

SHAFT

- pivot

1шт.

19

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

2шт.

20

S222940

ROD, CONNECTING

ROD - connecting

1шт.

21

A147652

PIN

CLEVIS PIN - self-locking

3шт.

22

S514438

BAR

- shaft support

2шт.

23

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

4шт.

24

195-525

WASHER,3/8", SAE

- flat, 3/8"

4шт.

25

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

4шт.
