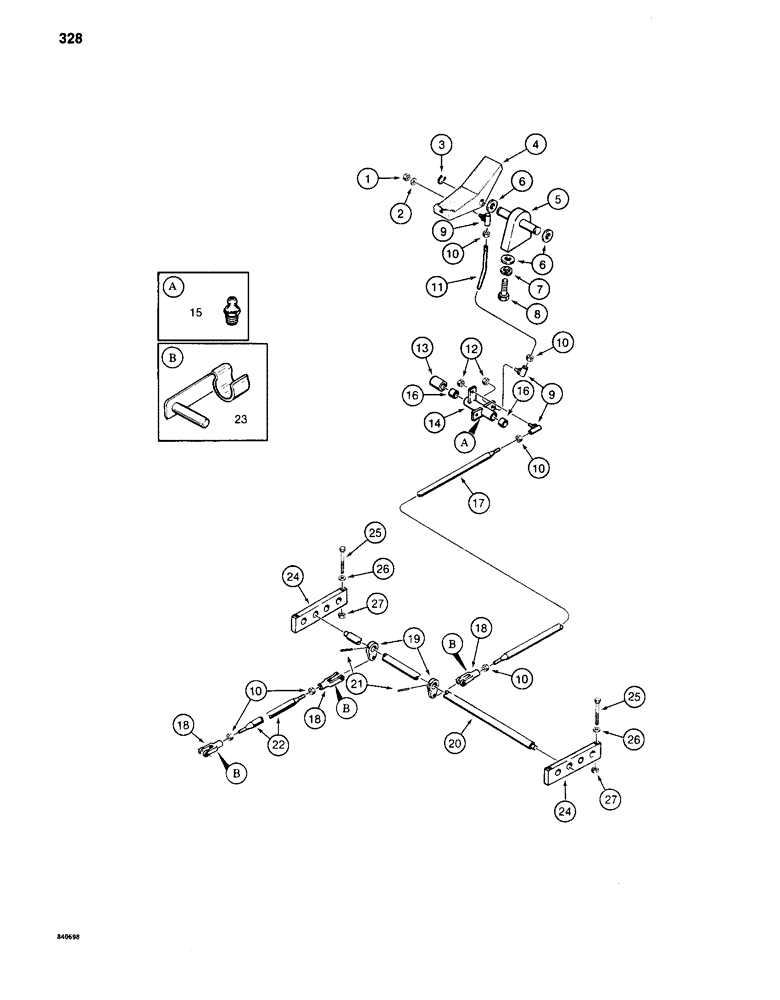

Запчасти Case 880C (328) - CONTROLS - PIN 6205236 AND AFTER, TOOL PEDAL AND LINKAGE (07) - HYDRAULIC SYSTEM

1

231-2446

NUT,3/8"-24, GB

NUT - hex, self locking, 3/8" - 24 NF

1шт.

2

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

3

D95096

SNAP RING,M15.88 x 1.27mm Thk

- retaining

1шт.

4

S615523

PEDAL

- tool

1шт.

5

S239280

BRACKET

- pedal

1шт.

6

196-20

WASHER,41/64" x 1.047" x .134", HDN

- flat, 1/2"

1шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

8

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

9

D38296

JOINT

BALL JOINT - connecting rods

3шт.

10

86585245

SPECIAL NUT,JAM, 5/8" - 18

JAM NUT - 3/8" - 24 NF

6шт.

11

S239128

STUD

- pedal to bellcrank, used before PIN 6205410

1шт.

11

S48765

STUD

- pedal to bellcrank, used on PIN 6205410 and after

1шт.

12

231-2446

NUT,3/8"-24, GB

NUT - hex, self-locking, 3/8" - 24 NF

2шт.

13

S110843

TUBE

SPACER - bellcrank

1шт.

14

S229402

ARM ASSY.

BELLCRANK - connecting rods, used before PIN 6205410, Includes: Ref. 15

1шт.

14

S240331

ARM ASSY.

BELLCRANK - connecting rods, used on PIN 6205410 and after, Includes: Ref. 15

1шт.

15

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

16

A30586

NEEDLE BEARING

- bellcrank

2шт.

17

S220636

EXCHANGE CONROD

ROD - connecting

1шт.

18

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - connecting rods

3шт.

19

S238822

LEVER

- connecting rods

2шт.

20

S511743

SHAFT

- pivot

1шт.

21

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

2шт.

22

S233230

ROD - connecting

1шт.

23

A147652

PIN

CLEVIS PIN - self-locking

3шт.

24

S514438

BAR

- shaft support

2шт.

25

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

4шт.

26

195-525

WASHER,3/8", SAE

- flat, 3/8"

4шт.

27

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

4шт.
