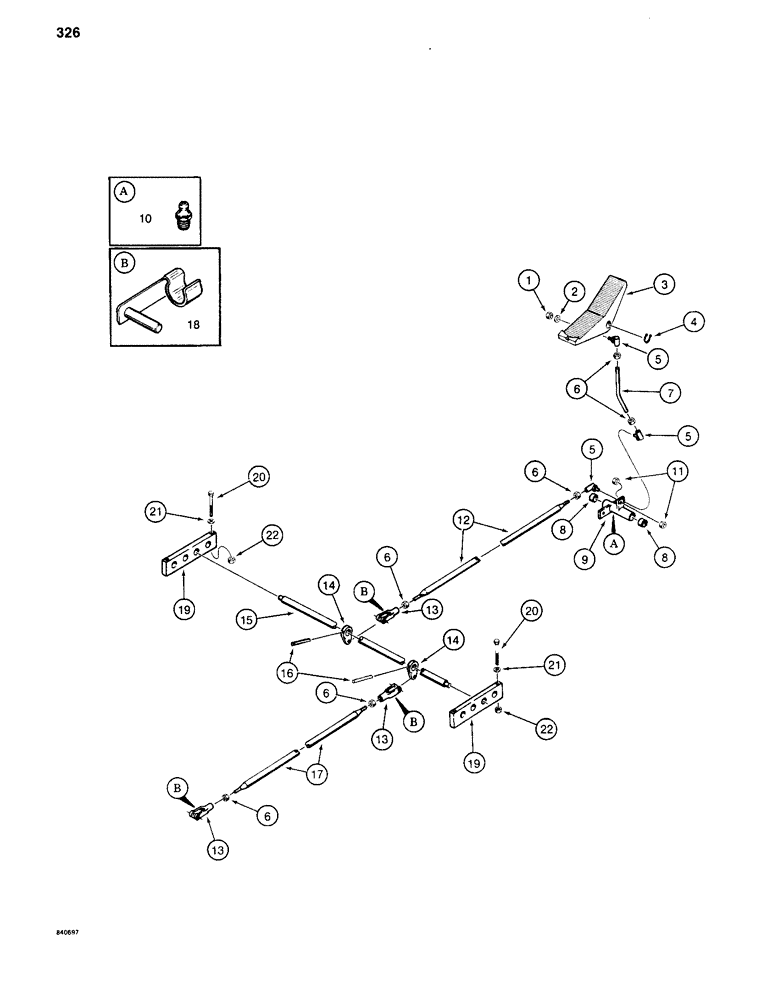

Запчасти Case 880C (326) - CONTROLS - PIN 6205236 AND AFTER, SWING PEDAL AND LINKAGE (07) - HYDRAULIC SYSTEM

1

231-2446

NUT,3/8"-24, GB

NUT - hex, self-locking, 3/8" - 24 NF

1шт.

2

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

3

S615523

PEDAL

- swing

1шт.

4

D95096

SNAP RING,M15.88 x 1.27mm Thk

- retaining, pedal

1шт.

5

D38296

JOINT

BALL JOINT - connecting rods

3шт.

6

86585245

SPECIAL NUT,JAM, 5/8" - 18

JAM NUT - 3/8" - 24 NF

6шт.

7

S239128

STUD

- pedal to bellcrank, used before PIN 6205410

1шт.

7

S48765

STUD

- pedal to bellcrank, used on PIN 6205410 and after

1шт.

8

A30586

NEEDLE BEARING

- bellcrank

2шт.

9

S229401

BELLCRANK - connecting rods, used before PIN 6205410, Includes: Ref. 10

1шт.

9

S240330

ARM ASSY.

BELLCRANK - connecting rods, used on PIN 6205410 and after, Includes: Ref. 10

1шт.

10

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

11

231-2446

NUT,3/8"-24, GB

NUT - hex, self-locking, 3/8" - 24 NF

2шт.

12

S239387

ROD - connecting

1шт.

13

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - connecting rods

3шт.

14

S238822

LEVER

- connecting rods

2шт.

15

S511742

SHAFT

- pivot

1шт.

16

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

2шт.

17

S220642

ROD - connecting

1шт.

18

A147652

PIN

CLEVIS PIN - self-locking

3шт.

19

S512159

SUPPORT

BAR - shaft support

2шт.

20

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

4шт.

21

195-525

WASHER,3/8", SAE

- flat, 3/8"

4шт.

22

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

4шт.
