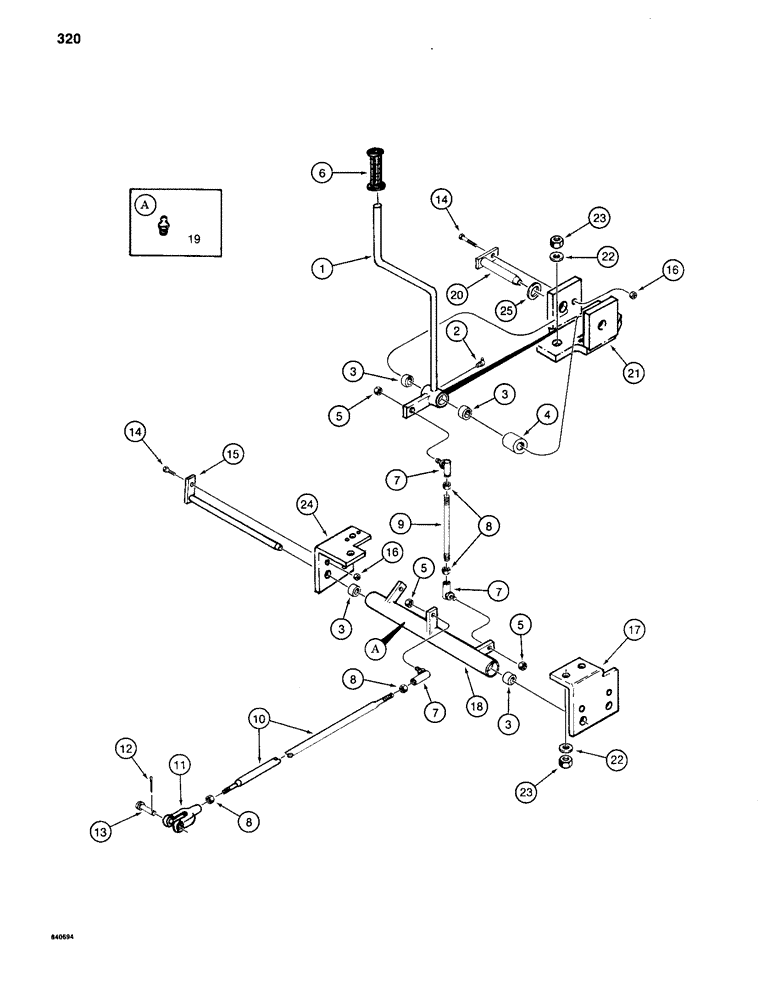

Запчасти Case 880C (320) - CONTROLS - BEFORE PIN 6205236, ARM CONTROL LEVER AND LINKAGE (07) - HYDRAULIC SYSTEM

1

S613194

HANDLE

CONTROL LEVER - arm

1шт.

2

219-43

LUBE NIPPLE,65 Degree Elbow, 1/4" - 28 NPTF

GREASE FITTING - 65 degree, 1/4" - 28 NF taper

1шт.

3

A30586

NEEDLE BEARING

- control lever and bellcrank

4шт.

4

S87490

SPACER

- control lever

1шт.

5

131-493

NUT

- hex, self-locking, 3/8" - 24 NF

3шт.

6

S109220

GRIP

- control lever

1шт.

7

D38296

JOINT

BALL JOINT - connecting rods

3шт.

8

86585245

SPECIAL NUT,JAM, 5/8" - 18

JAM NUT - 3/8" - 24 NF

4шт.

9

S91683

ROD

- connecting

1шт.

10

S220898

ROD - connecting

1шт.

11

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - at valve

1шт.

12

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

1шт.

13

S10767

PIN

CLEVIS PIN - at valve

1шт.

14

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

15

S218961

SHAFT ASSY.

SHAFT - pivot

1шт.

16

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

2шт.

17

S218940

BRACKET - bellcrank support, right-hand

1шт.

18

S220214

BELLCRANK - connecting rods, Includes: Ref. 19

1шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

20

S217833

SHAFT ASSY.

SHAFT - control lever

1шт.

21

S220629

SUPPORT

BRACKET - control lever support

1шт.

22

92-8

LOCK WASHER,1/2"

2шт.

23

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

24

S220257

BRACKET - bellcrank support, left-hand

1шт.

25

195-41

WASHER,5/8"

1шт.
