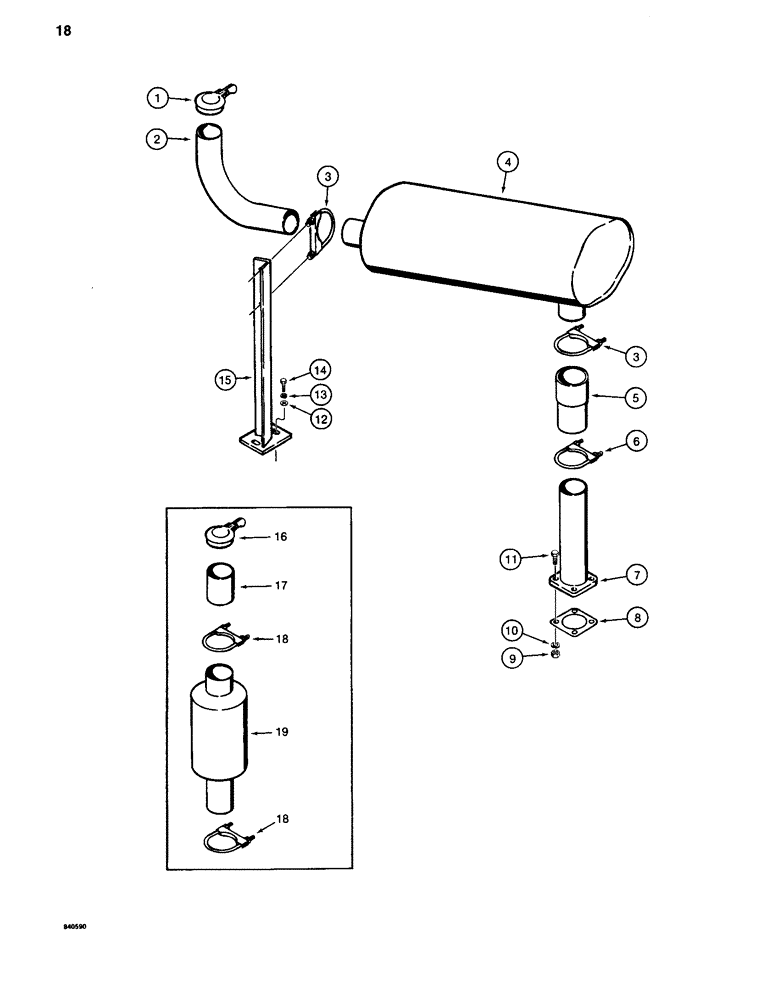

Запчасти Case 880C (018) - MUFFLER AND EXHAUST SYSTEM (01) - ENGINE

1

A19795

CAP

- pipe

1шт.

2

S99158

ELBOW

EXTENSION PIPE - muffler exhaust, bent

1шт.

3

A17851

CLAMP

- muffler

2шт.

4

S231674

MUFFLER

- engine exhaust

1шт.

5

S117149

ADAPTER

- muffler to exhaust pipe

1шт.

6

S65056

CLAMP

- pipe

1шт.

7

S238895

TUBE,3" OD x 12.18" L

PIPE - exhaust, straight

1шт.

8

S87740

GASKET

- exhaust pipe to engine manifold

1шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

11

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

12

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 3/8"

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

15

S238872

BRACKET

- support

1шт.

16

A19795

CAP

- pipe, optional spark arrester

1шт.

17

S117260

TUBE,3.5" OD x 2.75" L

EXTENSION PIPE - spark arrester outlet, optional

1шт.

18

A17851

CLAMP

- spark arrester, optional

2шт.

19

S226198

SPARK ARRESTER

ARRESTER - spark, optional

1шт.
