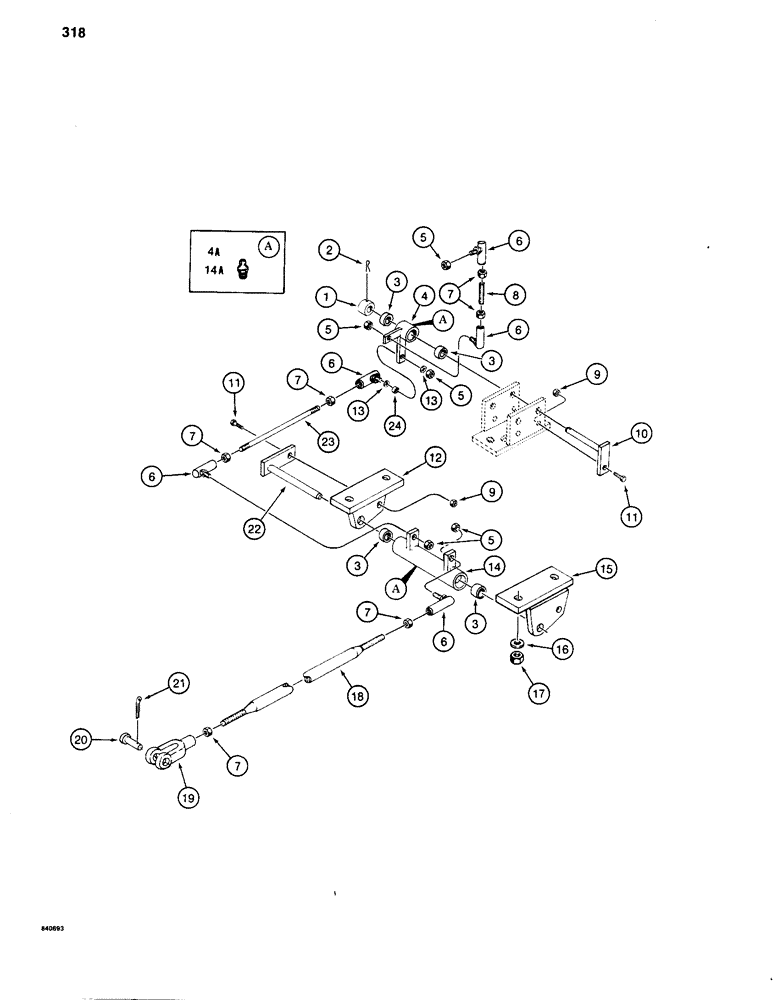

Запчасти Case 880C (318) - CONTROLS - BEFORE PIN 6205236, WRIST-O-TWIST LINKAGE (07) - HYDRAULIC SYSTEM

1

S88670

SPACER

- bellcrank

1шт.

2

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

1шт.

3

A30586

NEEDLE BEARING

- bellcrank

4шт.

4

S216744

BELLCRANK - connecting rods, Includes: Ref. 4A

1шт.

4a

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, NF taper 1/4"-28 NPT x .54" lg

1шт.

5

131-493

NUT

- hex, self-locking, 3/8" - 24 NF

5шт.

6

D38296

JOINT

BALL JOINT - connecting rods

5шт.

7

86585245

SPECIAL NUT,JAM, 5/8" - 18

JAM NUT - 3/8" - 24 NF

6шт.

8

S87534

ROD

- connecting

1шт.

9

86625061

NUT,1/4"-20, GB

NUT - hex head, self-locking, 1/4" - 20 NC

2шт.

10

S219056

SHAFT

- pivot

1шт.

11

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

12

S218943

BRACKET - bellcrank support, left-hand

1шт.

13

195-525

WASHER,3/8", SAE

- flat, 3/8"

2шт.

14

S220208

BELLCRANK - connecting rods, Includes: Ref. 14A

1шт.

14a

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

15

S218944

BRACKET - bellcrank support, right-hand

1шт.

16

95-8

WASHER,1/2"

flat 1/2"

4шт.

17

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

18

S219275

ROD

- connecting

1шт.

19

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - at valve

1шт.

20

S10767

PIN

CLEVIS PIN - at valve

1шт.

21

132-67

COTTER PIN,5/32" x 3/4"

- 5/32" x 1"

1шт.

22

S218963

SHAFT - pivot

1шт.

23

S235853

ROD - connecting

1шт.

24

S40815

BEARING, NEEDLE,0.375" ID x 0.5630" OD x 0.312"

NEEDLE BEARING - small

1шт.
